VP F6x/msd

VP F6x/msd VMEbus Intel Xeon E3 CPU Board with up to 32 GB RAM, 3 GbE Ports and Front Panel Graphics Interfaces

CONCURRENT Technologies' VP F6x/msd CPU board is a single-board computer with quad core 2.2 GHz Intel Xeon E3-1505L v6 CPU. Up to 32 GB ECC DDR4-2400 SDRAM are soldered on the board.

The VP F6x/msd offers 2 PMC/XMC slots, one DisplayPort, up to three Gigabit Ethernet, one RS-232, two RS-232/422/485, up to 3 SATA 3Gbit/s, up to 6 USB 2.0 ports, up to two CFast sockets, and up to two 2,5" HDD/SSD sockets. Opt. HD audio and up to two DVI-D ports are available. The front panel has one DisplayPort, one RS-232, 2 USB 2.0, and one GbE port. The graphics interfaces support DirectX 12 and OpenGL 4.4 with up to 1920x1200 pixel resolution.

The board supports Microsoft Windows, Linux, and VxWorks.

The VP F6x/msd series is available in four different operating temperatures: standard (0°C .. 55°C), extended (-25°C .. +70°C), (-40°C .. +70°C) and conduction-cooled (-40°C .. +85°C).

ORDER NOW

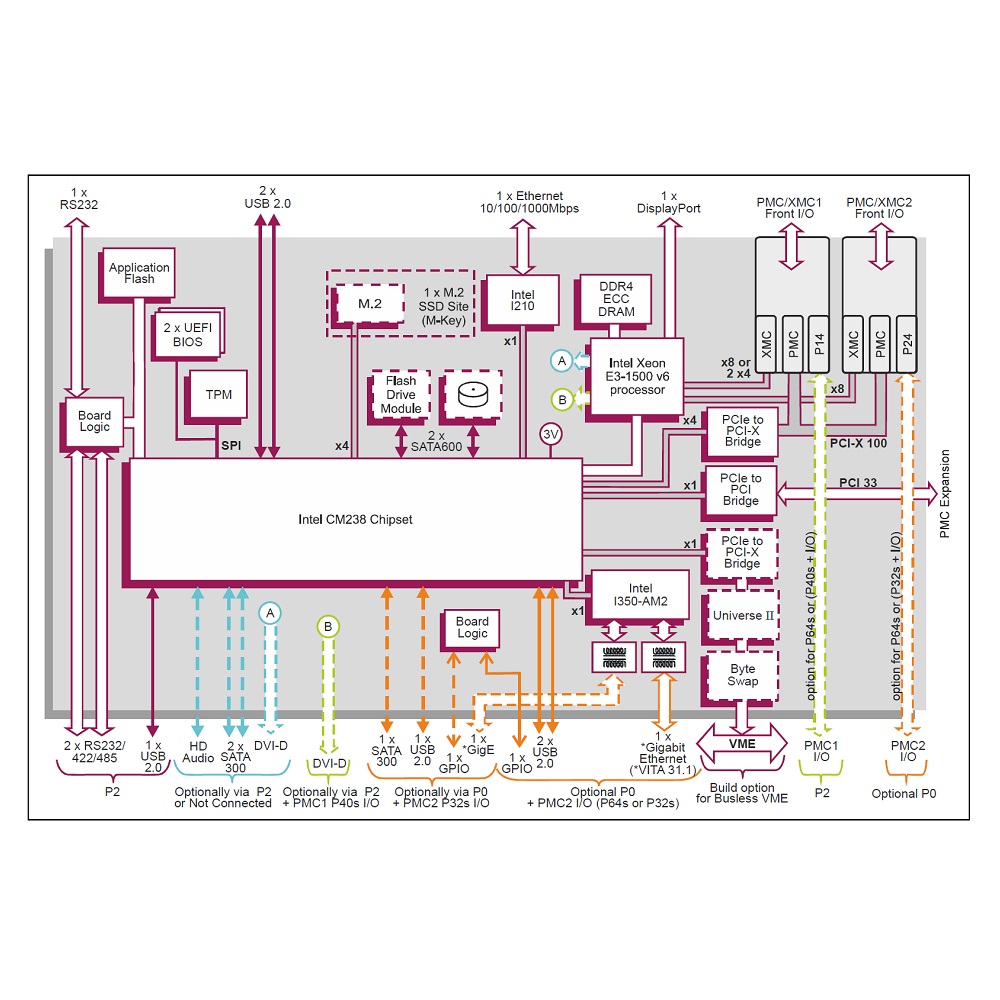

Technical Description

proimg1
  • 6U/4HP VMEbus board, VITA 31.1 compliant
  • Quad core 2.2 GHz Intel Xeon E3-1505L v6 CPU, 8MB cache
  • Up to 32 GB ECC DDR4-2400 SDRAM, soldered
  • Dual 16MB BIOS SPI flash memory
  • 64 MB application flash memory
  • Intel CM238 controller
  • Up to 3 graphics interface channels, one front panel DisplayPort via 60-way connector and opt. up to two DVI-D ports via P2, one DVI port uses I/O pins for PMC/XMC site 1, 1920×1200 pixel resolution, Intel HD graphics P630, DirectX 12, OpenGL 4.4 and OpenCL 2.1 support
  • Up to 3 Gigabit Ethernet ports, 1 front panel port, Intel I210 and opt. 2 ports with onboard magnetics via P0, Wake-on-LAN support, Precision Time Protocol support, Intel I350-AM2, VITA 31.1
  • 3 RS-232 ports, 1 RS-232 front panel port via 60-way connector, 2 RS-232/422/485 ports via P2
  • Up to 4 PMC/XMC slots, 32/64bit, 33/66/100 MHz, 3.3/5Vio, 2 slots with front IO or rear IO via P0 or P2, XMC site with PCIe x8 Gen2 link, 5V VPWR, and 2 slots via transition module
  • Opt. up to 3 SATA 3Gbit/s ports, 2 ports via P2 and one port via P0
  • M.2 SSD side: 2242, 2260 and 2280 devices are supported, PCIe x4 interface (M-key), NVM Express (NVMe) logical interface
  • 2 SATA 6Gbit/s ports for opt. onboard SATA Flash Drive and opt. onboard 2.5″ HDD/SSD, uses PMC/XMC site 2
  • Up to 6 USB 2.0 ports, 2 front panel ports via 60-way connector, 1 port via P2 and opt. 3 ports via P0
  • Up to 2 GPIO ports via P0
  • Opt. Intel HD audio via P2
  • One DisplayPort, one RS-232, 2 USB 2.0, and one GbE on the front panel
  • A16/A24/A32, D08-D64: MBLT64, VMEbus-Master/Slave interface, IDT Universe II PCI-X-to-VME64x Bridge
  • Opt. Build-In Test support: Power-on-BIT, Initiated BIT, Continuous BIT
  • UEFI BIOS with Secure Boot, LAN Boot Firmware, Intel Boot Guard, opt. Fast Boot solution using the Intel Firmware Support Package (FSP)
  • Watchdog, 32bit timer and real time clock
  • Trusted Platform Module (TPM 2.0)
  • In 4 environmental classes available: standard (0°C .. 55°C), extended grade (-25°C .. +70°C), (-40°C .. +70°C), and conduction-cooled (-40°C .. +85°C)
  • 2 years warranty

Order Information

VP F64/m5d-yz-u2w

VMEbus CPU board, quad core 2.2 GHz Xeon E3

d=1

16 GB RAM

d=2

32 GB RAM

yz=11 or 51

VME32 handles, 3-row P2

yz=2z, 3z or 6z

VME64x handles, 5-row P2

m=0

With Universe II VME bridge

m=1

Without Universe II VME bridge

AD VP2/029-10

RTM: 5-row P2, PMC1 (64 I/0), USB, 2x RS-232, DVI-D, 2x SATA, opt. HD analog audio

AD VP2/029-16

RTM: 5-row P2, PMC1 (40 I/0), USB, 2x RS-232, 2x DVI-D, VGA, 2x SATA, opt. HD analog audio

AD VP2/029-20

RTM: 5-row P2+P0, 2x PMC (64+64 I/0), USB, 2x RS-232, DVI-D, VGA, 2x SATA, GbE, GPIO, opt. HD analog audio

AD VP2/029-30

RTM: 5-row P2+P0, 2x PMC (32+64 I/0), 2x USB, 2x RS-232, DVI-D, VGA, 3x SATA, 2x GbE, 2x GPIO, opt. HD analog audio

AD VP2/031-10

RTM: 3-row P2, PMC1 (32 I/0), USB, DVI-D, 2x SATA, HD analog audio

CB 60D/124-00

High-Density to DisplayPort, 2 USB, RS-232- adapter cable

CB DYP/121-00

DisplayPort to VGA adapter

CB DYP/131-00

DisplayPort to DVI-D adapter

AD 110/001-vw

2,5" HDD/SSD incl. mounting kit

AD 231/10x-yz

Flash module

AD CR5/PMC-yz

Dual PMC carrier board

AD CR6/XMC-yz

Dual PMC/XMC carrier board

AD AUD/003-00z

HD audio CODEC module

Technical Documentation

VP F6x/msd Data Sheet
