VPX3-TL 3U conduction cooled VPX CPU Board with Intel Xeon W Processor, 32GB RAM and XMC Slot

3U VPX conduction cooled CPU board with an Intel® Xeon® W-11865MRE processor and Intel® RM590E controller. The board has up to 32GB of soldered DDR4-2666 ECC SDRAM.

ADLINK's VPX3-TL provides a XMC slot with PCIe x8 Gen3, one DisplayPort with up to 8K resolution, one 2.5GBASE-T and two 10GBASE-KR ports, one SATA 6 Gbit/s port, one RS-232 port, one RS-232/422/485 port, one maintenance RS-232 port, three USB ports, 4 GPIO ports, two PCIe x4 ports and optional one PCIe x8 port. In addition one M.2 2242 slot for NVMe and SSDs as well as one XMC slot with PCIe x8 Gen3 are available.

The board is aligned with the SOSA (Sensor Open Systems Architecture) technical standard. The SOSA (Sensor Open Systems Architecture) consortium is a voluntary, consensus-based membership consortium of the Open Group, a vendor-neutral technology standards organization that develops an open technical standard for sensors.

The board is supported by Microsoft Windows and Linux.

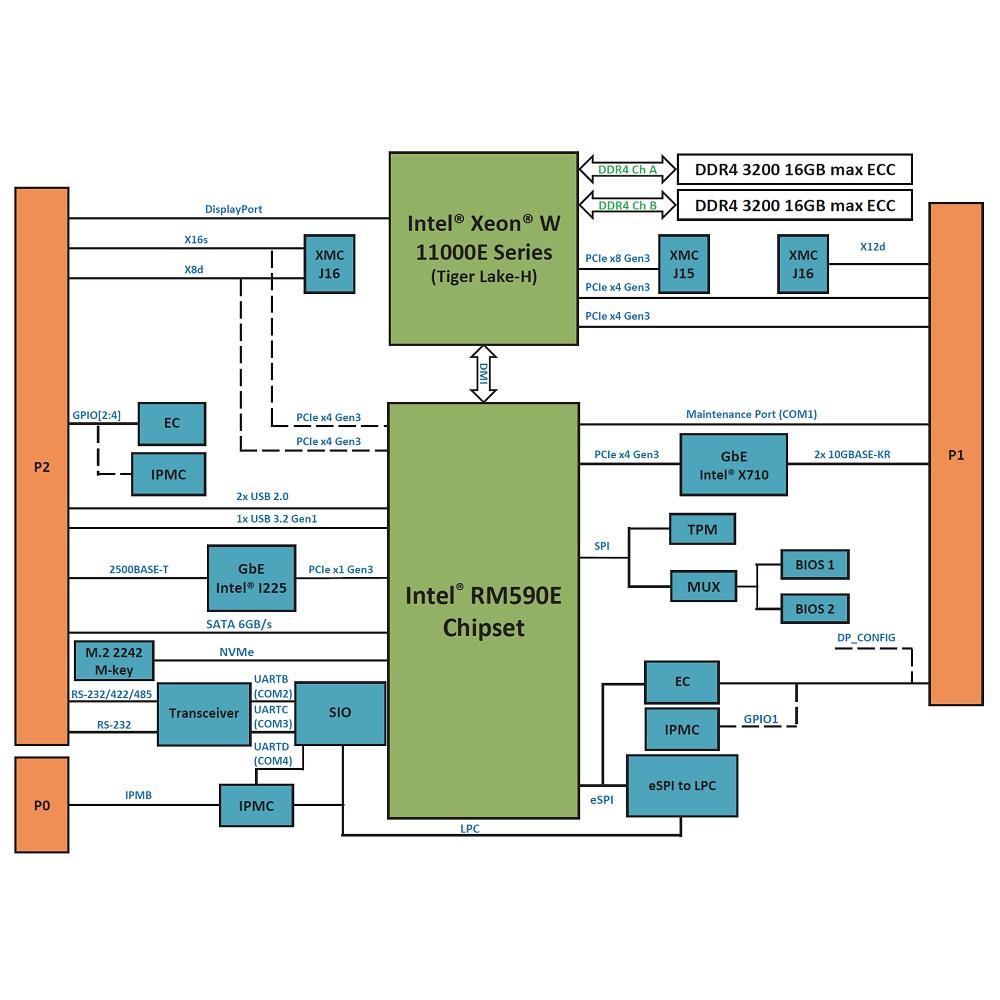

Technical Description

  • 3U/4HP VPX board, VITA 46, VITA 47.0, VITA 48.1 and VITA 65 OpenVPX compliant, SOSA aligned
  • SLT3-PAY-1F1F2U1TU1T1U1T-14.2.16 slot profile
    MOD3-PAY-1F1F2U1TU1T1U1T-16.2.15-2 module profile
  • 8-core Intel Xeon W-11865MRE CPU
  • Chipset Intel® RM590E
  • DisplayPort on P2 with DP++ support and up to 8K/60Hz resolution
  • 32GB ECC DDR4-2666 SDRAM, soldered
  • Two 256Mbit BIOS SPI flash
  • One XMC slot with rear I/O (X16s+X8d) on P2 and X12d to P1, PCIe x8 Gen3, XMC 1.0 and XMC 2.0 connector
  • One 2.5GBASE-T port on P2 with PXE and Wake-on-LAN support and two 10GBASE-KR ports on P1 or two 1GBASE-KX ports
  • One M.2 2242 slot with PCIe x4 3.0 and SATA3.0 support for NVMe and SSDs
  • One SATA 6Gbit/s port on P2
  • Two RS-232 ports, one RS-232 port on P2 and one RS-232/422/485 ports on P2
  • One maintenance RS232 port on P1
  • 3 USB ports, 1 USB 3.2 port and 2 USB 2.0 ports on P2, USB power supply support with overvoltage protection
  • Two PCIe x4 Gen3 ports on P1, optional one PCIe x8 Gen3 port
  • 4 GPIO ports, 1 port on P1 and 3 ports on P2
  • Conduction cooled, -40°C … +85°C operating temperature range
  • 2 years warranty

Order Information


3U VPX CPU board, Xeon W-11000E, 32GB RAM, XMC 1.0 site, conduction-cooled


3U VPX CPU board, Xeon W-11000E, 32GB RAM, XMC 2.0 site, conduction-cooled


3U VPX CPU board, Xeon W-11000E, 32GB RAM, PCIe x16, conduction-cooled


Backplane for VPX3-TL with XMC site


Backplane for VPX3-TL with 2 PCIe x4 slots

Technical Documentation

VPX3-TL Data Sheet
