VPX3000 3U VPX CPU Board with Intel Core i7 Generation 3 Processor, 8 GB RAM and XMC Site

3U VPX CPU board with a Quad Core 2.1 GHz Intel Core i7-3612QE or Dual Core 2.5 GHz Intel Core i7-3555LE processor and Intel's QM77 controller. 8 GB DDR3-1333 ECC SDRAM are soldered on the board. 16 GB flash are available.

ADLINKs VPX3000 offers one XMC site, one DVI port, one VGA port, two SATA 6Gbit/s ports, two 1000Base-BX/T ports, one RS-232 port, one RS-422 port, one USB 3.0, two USB 2.0 ports, audio ports, and four GPIO ports.

The board supports Wind River VxWorks 6.9, RedHat Enterprise Linux 6.2, and Windows 7 32/64bit.

ORDER NOW

Technical Description

proimg1
  • 3U/4HP VPX CPU board, VITA 46.0, VITA 46.4, VITA 46.6, VITA 46.9, VITA 46.10, VITA 46.11, VITA 48.0 and VITA 65 OpenVPX compliant
  • MOD3-PAY-2F2U-16.2.3-3 Module Profile
  • Quad core 2.1 GHz Intel Core i7-3612Q CPU, 6MB L2 cache
    Dual core 2.5 GHz Intel Core i7-3555LE CPU, 4MB L2 cache
  • Intel QM77 controller
  • 8 GB ECC 1333 MHz DDR3 RAM, soldered
  • 16 GB flash
  • XMC.3 site with rear IO via P2, PCIe x8 Gen2, XMC Signal: X8d+X12d
  • DVI and VGA graphics via P2
  • Two SATA 6Gbit/s ports via P1
  • One 1000BASE-T and two 1000Base-BX Ethernet ports
  • One RS-232 and one RS-422 port via P2
  • 3 USB ports, 1 USB 3.0 and 2 USB 2.0 ports via P1
  • 4 GPIO ports via P1/2
  • Intel HD audio ports via P2
  • AMI UEFI BIOS in 64 Mbit SPI flash
  • HW monitor and watchdog timer
  • Conduction-cooled (-40°C .. +75°C) with Core i7-3612QE CPU,
    Conduction-cooled (-40°C .. +85°C) with Core i7-3555LE CPU
  • 2 years warranty

Order Information

VPX-3000/3612Q/M8G

3U/4HP VPX CPU board, Quad Core 2.1 GHz Core i7-3612QE, 8 GB RAM, -40 .. +75°C

VPX-3000/3655L/M8G

3U/4HP VPX CPU board, Dual Core 2.5 GHz Core i7-3555LE, 8 GB RAM, -40 .. +85°C

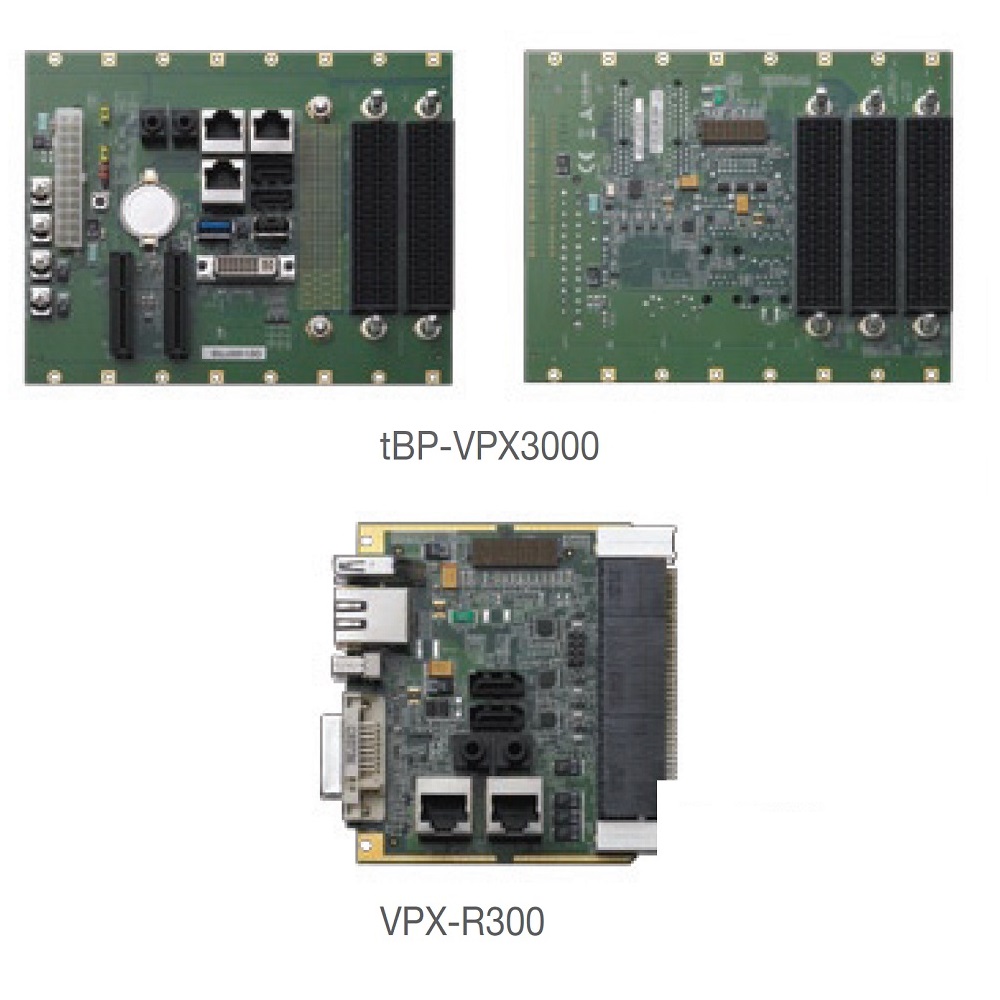

VPX-R300

RTM for VPX-3000 with DVI, audio, RS-232, RS-422, 1x USB 2.0, USB 3.0, 2x SATA

tBP-VPX3000

3-slot testbed for VPX-300

Technical Documentation

VPX3000 Data Sheet
