VPX3010

VPX3010 3U Conduction-cooled VPX CPU Board with 12 Core Intel Xeon D Processor, 16 GB RAM and 10G Ethernet

3U VPX CPU board with a 12 Core Intel Xeon D-1559 or eight core Xeon D-1539 or quad core Pentium D-1519 processor. 16 GB DDR4-2133 ECC SDRAM are soldered on the board. Up to 64 GB flash are available.

ADLINKs VPX3010 offers one XMC site, one VGA port, two 10GbE ports, up to three Gigabit Ethernet ports, two RS-232/422 ports, three USB ports, eight GPIO ports, two PCIe x8 ports and one PCIe x1 port.

The board supports Wind River VxWorks 7.0, RedHat Enterprise Linux 6.5, Windows 7 Embedded, and Windows 7 32/64bit.

The product is availably up to 30th September 2022. If you have questions please contact us.

ORDER NOW

Technical Description

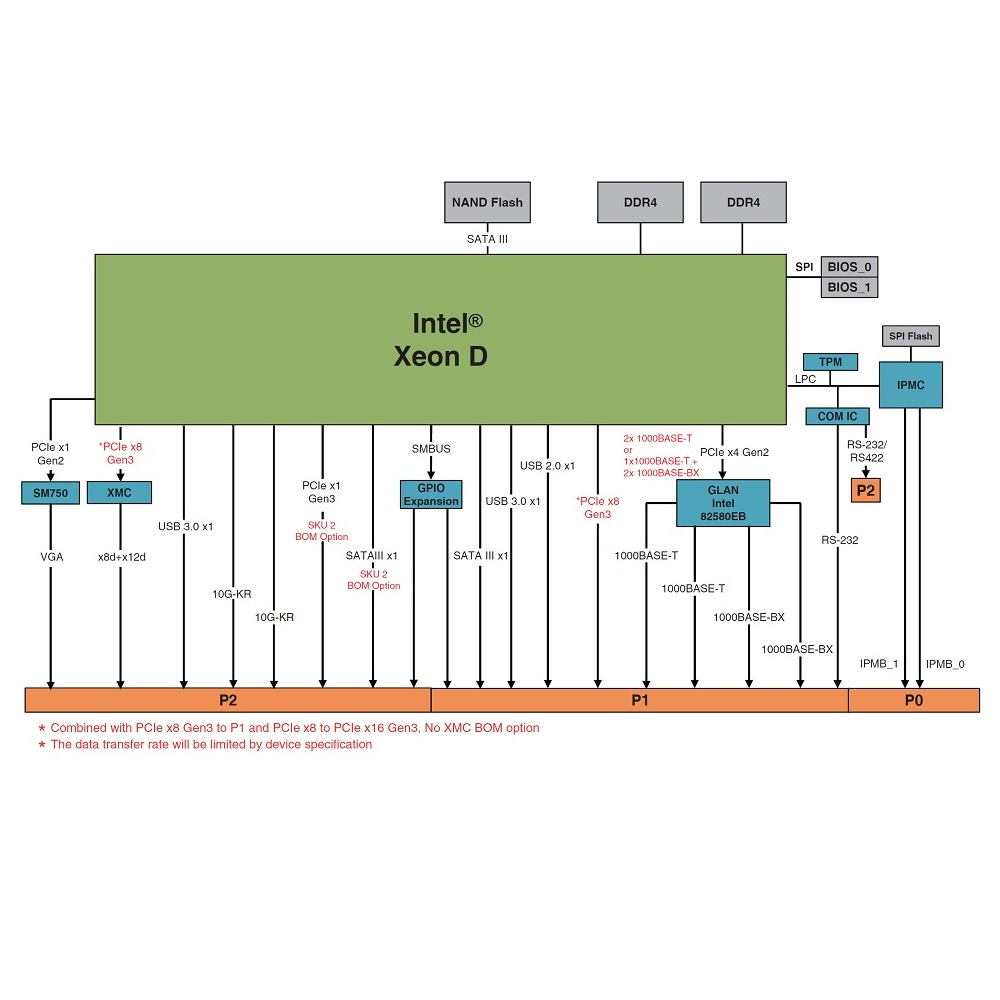

proimg1
  • 3U/4HP 1,0″ VPX CPU board, VITA 46.0, VITA 46.4, VITA 46.6, VITA 46.9, VITA 46.10, VITA 46.11, VITA 48.0 and VITA 65 OpenVPX compliant
  • MOD3-PAY-2F2T-16.2.5-3 module profile,
    SLT3-PAY-2F2T-14.2.5 slot profile
  • 12 core Intel Xeon D-1559 CPU,
    8 core Intel Xeon D-1539 CPU,
    4 core Intel Pentium D-1519 CPU
  • SMI750 on PCIe x1 with one VGA port via P2
  • 16 GB ECC 2133 MHz DDR4 RAM, soldered
  • Up to 64 GB SLKC flash
  • XMC site with rear IO via P2, PCIe x8 Gen3, XMC Signal: X8d+X12d
  • Two 10G-KR Ethernet ports via P2
  • Two 1000Base-T ports via P1 (or one 1000BASE-T and two 1000BASE-BX (BOM Option) Ethernet ports)
  • Two SATA 6Gbit/s ports, one port via P1 and one port via P2
  • Two RS-232 ports, one RS-232 port via P1 and one RS-232/422 port via P1
  • 3 USB ports, 1 USB 3.0 port via P1, 1 USB 3.0 port via P2 and 1 USB 2.0 port via P1
  • PCIe x8 Gen3 port to P1 configurable to 1 x8 or 2 x4 to P1, supports DMA and non transparent bridge for peer-to-peer communication,
    PCIe x8 Gen3 port to P2 (combined with PCIe x8 Gen3 to P1 for PCIe x16 Gen3, no XMC BOM option),
    PCIe x1 Gen3 port to P1 (no XMC BOM option)
  • 8 GPIO 5V tolerance ports via P1 and P2
  • AMI EFI BIOS in 64 Mbit SPI flash
  • Watchdog timer
  • Conduction-cooled (-40°C .. +75°C) operating temperature range
  • 2 years warranty

Order Information

VPX-3010/1559/M16/S32/XMC-R1

3U/4HP VPX CPU board, 12 Core Xeon D-1559, 16 GB RAM, 32GB SLC

VPX-3010/1559/M16/S32/P16-R1

3U/4HP VPX CPU board, 12 Core Xeon D-1559, 16 GB RAM, 32GB SLC, PCIe x16

VPX-3010/1559/M16/S64/XMC-R1

3U/4HP VPX CPU board, 12 Core Xeon D-1559, 16 GB RAM, 64GB SLC

VPX-3010/1559/M16/S64/P16-R1

3U/4HP VPX CPU board, 12 Core Xeon D-1559, 16 GB RAM, 64GB SLC, PCIe x16

VPX-3010/1539/M16/S32/XMC-R1

3U/4HP VPX CPU board, 8 Core Xeon D-1539, 16 GB RAM, 32GB SLC

VPX-3010/1539/M16/S32/P16-R1

3U/4HP VPX CPU board, 8 Core Xeon D-1539, 16 GB RAM, 32GB SLC, PCIe x16

VPX-R3010

RTM for VPX-3010 with GbE, SATA, USB 3.0/USB 2.0, RS-232, GPIO

VPX-R3010L2

RTM for VPX-3010 with PCIe x16 slot, PCIe x1 slot

VPX-R3010L2-1

RTM for VPX-3010 with 10G SFP+

VPX3G10-R

3U VPX NVIDIA GT745 GPU board, 384 CUDA GDDR5 2GB, conduction-cooled

XMC-G745-R

XMC NVIDIA GT745M GPGPU board, 384 CUDA GDDR5 2GB, conduction-cooled

VPX-TF3090

3U VPX conduction-cooled test frame with tBP-VPX3000

Technical Documentation

VPX3010 Data Sheet
