VR E7x/msd

VR E7x/msd 6U VPX CPU Board with Intel Xeon E-2176M Processor, 10Gigabit Ethernet and up to 2 XMC Sites

6U VPX CPU board with a 6-Core Intel Xeon E-2176M processor. The board is based on Intel's CM246 controller. Up to 32 GB DDR4 ECC SDRAM are soldered on the board.

CONCURRENT Technologies VR E7x/msd offers two XMC sites, two DisplayPorts, one DVI-D port, two M.2 SSD sites, up to four SATA 6Gbit/s ports, one 10Gigabit Ethernet port, up to five Gigabit Ethernet ports, 2 RS-232/422/485 ports, up to 13 USB ports, 8 GPIO ports, 8 GPI ports, Intel High Definition audio interface, and two PCIe x8 or four PCIe x4 ports. Opt. one onboard flash module can be mounted. The front panel offers 10Gigabit Ethernet, two USB 2.0, one RS-232, one DisplayPort, opt. two USB 3.0 and opt. one additional DisplayPort and front I/O from the XMC module.

The board supports Microsoft Windows, Linux, and VxWorks.

The VR E7x/msd is available in standard operating temperature range, extended temperature and in conduction-cooled.

ORDER NOW

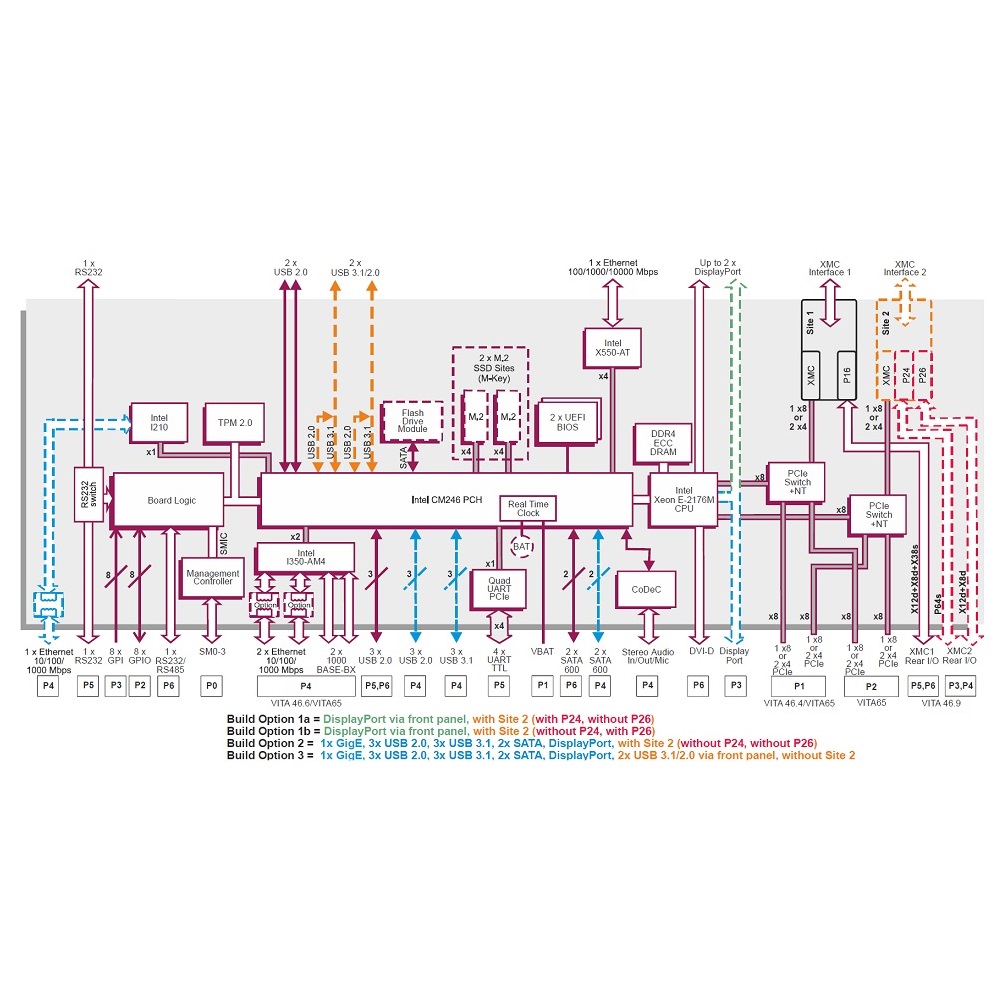

Technical Description

proimg1
  • 6U/4HP VPX CPU board, VITA 42, VITA 46.0, VITA 46.4, VITA 46.6, VITA 46.9, VITA 65, VITA 47, VITA 48.0, VITA 48.2, VITA 61, VITA 65, and OpenVPX compliant
  • 6-core 2.7 GHz Intel Xeon E-2176M CPU, 12 MB smart cache
  • Intel CM246 controller
  • Up to 32 GB ECC DDR4 RAM, soldered
  • Dual 16 MB SPI BIOS flash and 8 KB User EEPROM
  • Up to 2 XMC sides, front and rear I/O (VITA 46.9), 1 PCIe x8 or 2 PCIe x4 Gen3, VPWR +5V or +12V
    Option 1a: 2 XMC sides, XMC side 2 with rear I/O (P24 = P64s)
    Option 1b: 2 XMC side, XMC side 2 with rear I/O (P26 = X12d+X8d)
    Option 2: XMC side 2 without rear I/O (P24 und P26)
    Option 3: only XMC side 1
    All options XMC side 1 with rear I/O (P16 = X12d+X8d+X38s)
  • Up to 3 independent graphics interfaces, 2 DisplayPorts with 3840×2160 pixel resolution (2 DisplayPorts on option 1a and 1b on the front panel, 1 DisplayPort on option 2 and 3 on the front panel and one DisplayPort via P3), DVI-D with 1920×1200 pixel resolution via P6, Intel UHD graphics 630, DirectX 12, OpenGL 4.4 and OpenCL 2.0 support
  • One 10Gigabit Ethernet front panel port
  • Up to 5 Gigabit Ethernet ports, two 1000Base-BX via P4 and up to 3 Gigabit Ethernet front panel ports via P4 with or without magnetic, Wake-on-LAN support, Precision Time Protocol support, Intel I210, Intel I350-AM
  • Two M.2 SSDs sides: 2242, 2260 and 2280 devices are supported, PCIe x4 interface (M-key), NVM Express (NVMe) logical interface, RAID 0, 1, 5 and 10 support
  • Up to 4 SATA 6 Gbit/s ports, 2 ports via P6 and 2 additional ports on option 2 and 3 via P4
  • 2 RS-232 Ports, one RS-232 front panel port or via P5, and one RS-232/422/485 port via P6
  • Up to 13 USB ports:
    Option 1a und 1b: 2 USB 2.0 front panel ports, 3 USB 2.0 ports via P5 and P6
    Option 2: 2 USB 2.0 front panel ports, 3 USB 3.1 ports via P4, 6 USB 2.0 ports via P4, P5, P6
    Option 3: 2 USB 3.0 und 2 USB 2.0 front panel ports, 3 USB 3.1 ports via P4, 6 USB 2.0 ports via P4, P5, P6
  • Intel High Definition analog audio interface (onboard CoDeC) with audio Input / Output and microphone
  • 8 GPIO ports via P2 and 8 GPI ports via P3
  • Opt. onboard flash module
  • One 10GbE, two USB 2.0, one RS-232, one DisplayPort, opt. two USB 3.0 and opt. one additional DisplayPort in the front panel and XMC front I/O
  • Two PCIe x8 or four PCIe x4 Gen 3 ports via P1, VITA 46.4, VITA 65, configurable by the VPX switch configuration tool, up to two non-transparent ports with DMA for multi-processing applications
  • CPU temperature, board temperature and voltage sensors accessed via System Manager
  • Opt. Build-In Test support: Power-on-BIT, Initiated BIT, Continuous BIT
  • UEFI BIOS with Microsoft Secure Boot, LAN Boot Firmware, Intel Boot Guard, opt. Fast Boot solution using the Intel Firmware Support Package (FSP)
  • Real Time clock and watchdog timer
  • Trusted Platform Module (TPM 2.0)
  • In 5 environmental classes available: standard (0°C .. 55°C), extended (-25°C .. +70°C), (-40°C .. +70°C), (-40°C .. +85°C), and conduction-cooled (-40°C .. +85°C)
  • 2 years warranty

Order Information

VRE76/m21-zy

6U/4HP CPU board, 6 Core 4.4GHz Xeon E-2176M, 45W, 16 GB RAM

VRE76/m22-zy

6U/4HP CPU board, 6 Core 4.4GHz Xeon E-2176M, 45W, 32 GB RAM

VRE76/m31-yz

6U/4HP CPU board, 6 Core TBD GHz Xeon E-2176M, 35W, 16 GB RAM

VRE76/m32-yz

6U/4HP CPU board, 6 Core TBD GHz Xeon E-2176M, 35W, 32 GB RAM

VRE76/m41-yz

6U/4HP CPU board, 6 Core TBD GHz Xeon E-2176M, 25W, 16 GB RAM

VRE76/m42-yz

6U/4HP CPU board, 6 Core TBD GHz Xeon E-2176M, 25W, 32 GB RAM

m=0

0.8-inch slot width, VITA 46.0 front panel, dual XMC sites, 1 DisplayPort

m=1

0.8-inch slot width, VITA 46.0 front panel, dual XMC sites

m=2

0.8-inch slot width, VITA 46.0 front panel, 1 XMC site, 2 USB 3.1

m=6

1.0-inch slot width, VITA 65 front panel, dual XMC sites, 1 DisplayPort

m=7

1.0-inch slot width, VITA 65 front panel, dual XMC sites

m=8

1.0-inch slot width, VITA 65 front panel, 1 XMC site, 2 USB 3.1

y/z

Rear I/O configuration

AD VR3/002-vw

0.8-inch slot width 6U VPX RTM for VR E7x/msd

AD VR3/005-vw

0.8-inch slot width 6U VPX RTM for VR E7x/msd

AD VR3/602-vw

1.0-inch slot width 6U VPX RTM for VR E7x/msd

AD VR3/605-vw

1.0-inch slot width 6U VPX RTM for VR E7x/msd

AD 231/103-yz

Flash module under 64 GB

AD 231/104-yz

Flash module more than 64 GB

CB 60D/127-00

60-way HD to 2 DisplayPort, 1 VGA, 2 USB, 1 RS-232 cable

Technical Documentation

VR E7x/msd Data Sheet
