XM SA1/001

XM SA1/001 XMC Module with 4 SAS/SATA Ports

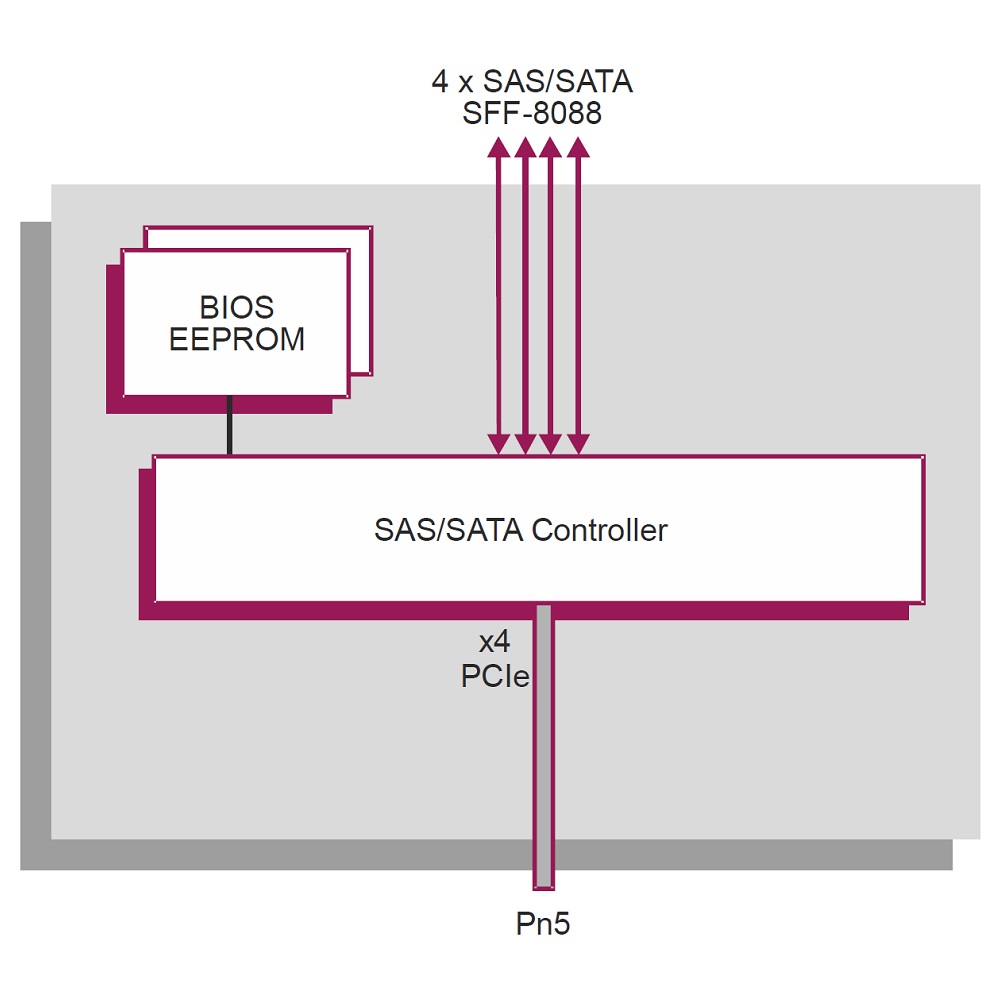

XMC modules capable of connecting to 4 external SAS or SATA drives via a convenient front panel connector. XM SA1/001 supports up to 6 Gbps drives and allows a mixing of SAS and SATA storage devices. The I/O signals are available via Pn5.

We offer a wide range of XMC modules.


Technical Description

  • XMC module, VITA 42.0, VITA 42.3
  • PCI 2.0 compliant, PCIe x1, x2 and x4 (Gen 1 and Gen2) interface
  • Support for 4 SAS 2.0/SATA 3.0 ports
  • Front panel mini SAS 4x connector (SFF-8088)
  • 4 Mbit SPI flash EEPROM with BIOS firmware to support OS Boot
  • Linux and Windows support
  • 0°C .. 55°C operating temperature range
  • 2 years warranty

Order Information


XMC module with 4 SAS/SATA Ports

Technical Documentation

XM SA1/001 Data Sheet
