XMC-E540 Dual 10Gigabit Ethernet Interface

XMC module providing a dual channel 10Gigabit Ethernet 100BASE-TX/1000BASE-T/10GBASE-T interface. Both Ethernet interfaces support 100, 1000 Mbit/s and 10 Gbit/s transmission rates. The two Ethernet interfaces are capable of performing an auto-negotiation algorithm which allows the link-partners to determine the best link parameters.

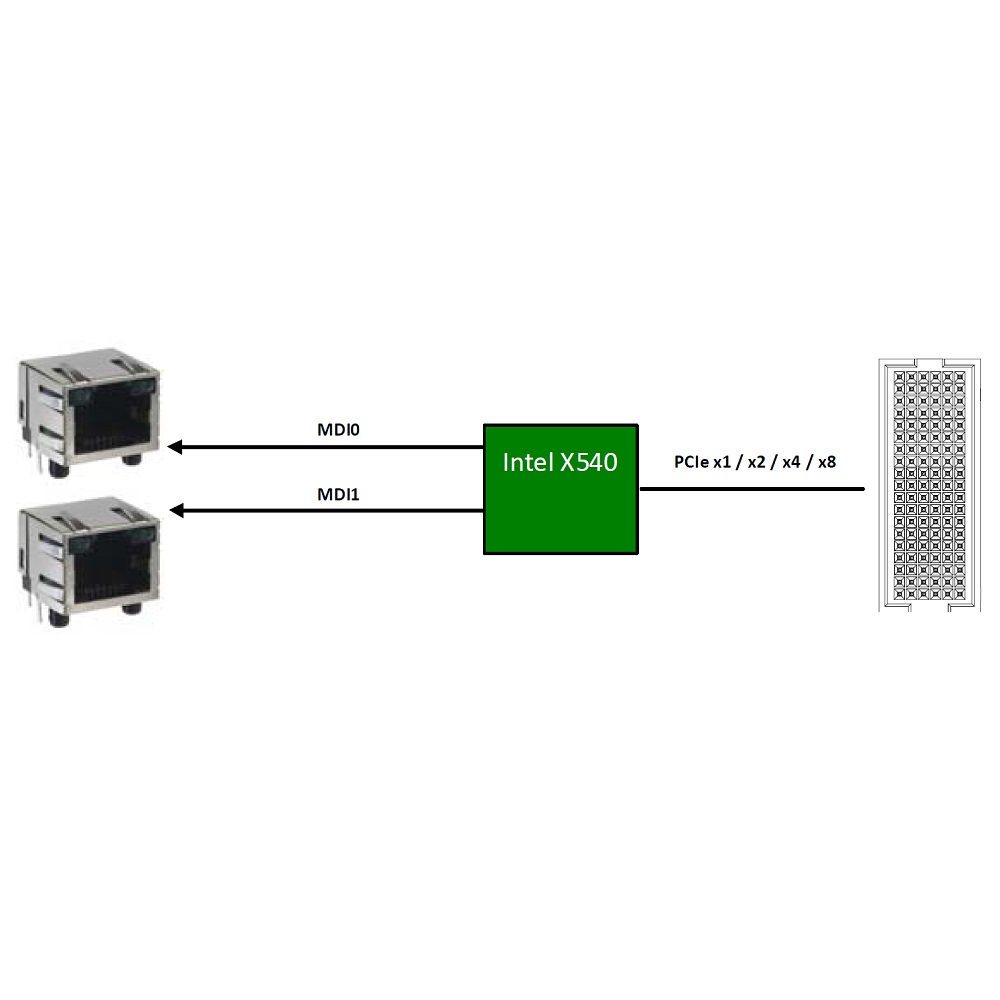

The XMC-Connector P15 provides access to the Intel X540 dual port 10GbE controller via an x8 PCIe link.


Technical Description

  • XMC module, VITA 42.0, PCIe x8 compliant VITA 42.3
  • Two 100/1000/10GBaseTX Ethernet ports, Intel X540 controller
  • Jumbo frames up to 15.5KB
  • Auto negotiation
  • TCP/UDP segmentation
  • IPv6/TCP, IP/UDP receive checksum offload
  • VMDq1, VMDq and PCI-SIG SR-IOV virtualization
  • 0°C .. +60°C operating temperature range
  • 2 years warranty

Order Information


XMC module, Dual 10Gigabit Ethernet interface

Technical Documentation

XMC-E540 Data Sheet

XMC-E540 User Manual
