ComEth4050e 32 Port Gigabit Ethernet Layer 2/3 Switch

6U CompactPCI 1/10/40 Gigabit Ethernet Layer 2/3 Switch with up to 32 ports. Powered by the newest Marvell highly integrated system-on-chip (SoC) with programmable packet processors, Interface Concept's ComEth4050e series is fully backward compatible and provides a high 10/40 Giga Ethernet port count. The boards are available in two variants. Option 1 has 24 GbE ports via J3, J4 and J5, plus an additional 8 GbE SFP+ front panel ports. Option 2 offers 20 GbE ports over J3, J4 and J5 plus an additional 8 GbE SFP+ front panel ports and a mezzanine with front interfaces. The mezzanine is available with 4 front SFP+ (1/10 Gbps), 2 front 1/2.5/5/10 BaseT or 1 front QSFP+ (40Gbps) ports.

The ComEth40x0e matrix coupled with an independent management processor is controlled by Switchware, the field-proven Interface Concept network management application. Switchware supports a wide range of Ethernet protocols and has an easy to use graphical user interface (GUI).

In addition to a non-Flash device, a removable Flash disk allows storing switch configuration files and logs, offering flexibility to the user, and allowing sanitization when needed.

The ComEth4050e series comes in four different environment classes from standard (0°C to 55°C), extended temperature (-20°C to +65°C), rugged convection-cooled (-40°C to +75/85°C) up to conduction-cooled (-40°C to +75/85°C).

ORDER NOW

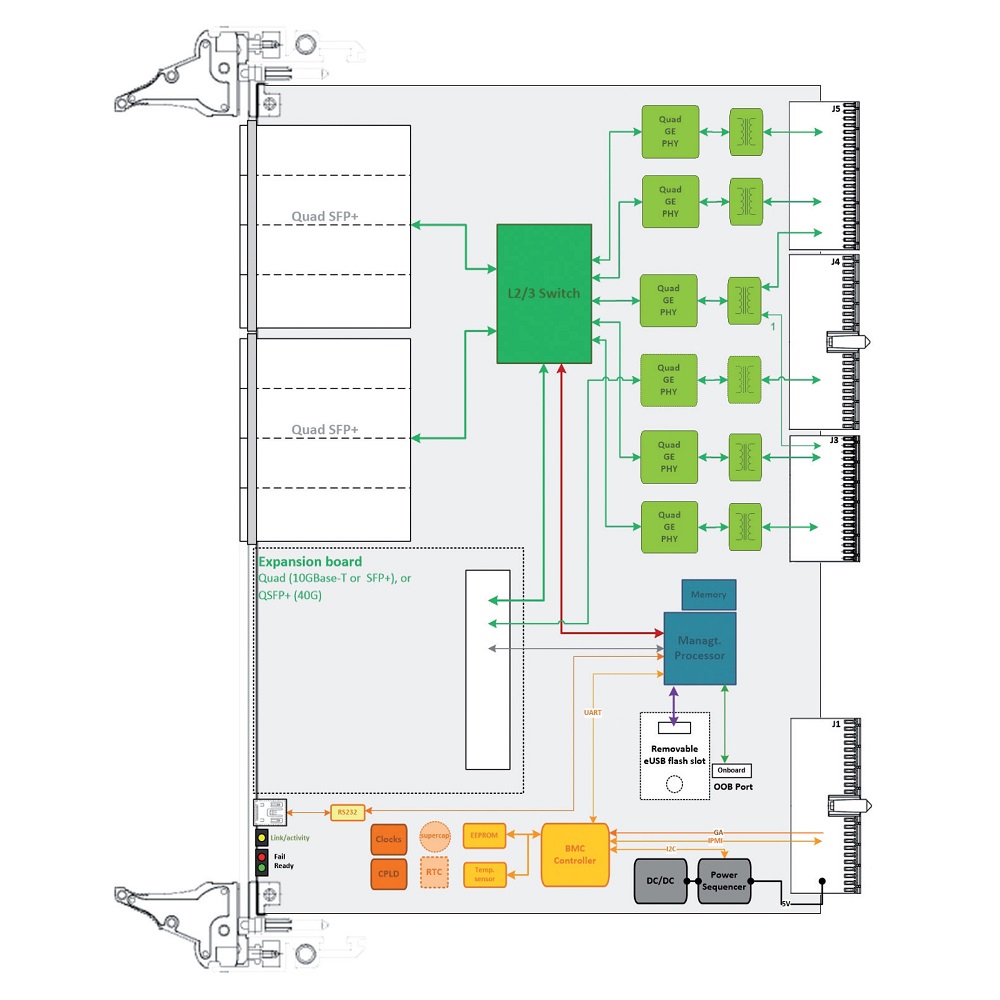

Technical Description

proimg1
  • 6U/4HP CompactPCI switch, PICMG 2.16, VITA 31.1, IEEE 802.1x compliant
  • 32 port layer 2/3 Gigabit Ethernet Switch
  • Up to 24 GbE ports via J3, J4 and J5
  • 8 GbE SFP+ front panel ports
  • Opt. mezzanine with 4 front SFP+ (1/10 Gbit/s), 2 front 1/2,5/5/10 BaseT or 1 front QSFP+ (40Gbit/s)
  • Speed, duplex, auto-negotiation, flow control and power management on all ports
  • QoS on all ports
  • VLAN support / 802.1Q tagging
  • Port mirroring and port rights management
  • Static MAC address list and static IPM address list
  • Port static authentication
  • IEEE 802.1X port-based authentication
  • Ingress filtering
  • Storm prevention
  • Ingress / egress access lists
  • Static trunking / LACP
  • STP / RSTP
  • IGMP/MLD snooping
  • Secure switch management by HTTPS, SSH or SNMPv3
  • Login/password, key or certificate authentication
  • IGMP snooping (v1, v2, v3) and MLD snooping (v1, v2)
  • Layer3: ICMP, Proxy-ARP, DHCP-Relay, NAT, IPv4 routing (unicast/multicast), static IP routing (unicast and multicast), RIPv1, RIPv2 (IPv4), RIPng(IPv6), OSPFv2 (IPv4) / OSPFv3(IPv6)
  • PBIT results
  • Operating temperature range: 0°C .. 55°C, -20°C .. +65°C, -40°C .. +75/85°C or conduction-cooled
  • 2 years warranty

Order Information

ComEth4050e-110

32 port GbE layer2/3 Switch, 0°C .. 55°C operating temperature range

ComEth4050e-111

32 port GbE layer2/3 Switch, -20°C .. +65°C operating temperature range

ComEth4050e-112

32 port GbE layer2/3 Switch, -40°C .. +75°C operating temperature range

ComEth4050e-113

32 port GbE layer2/3 Switch, conduction-cooled

Technical Documentation

ComEth4050e-DS

ComEth4050e data sheet
