cPCIS-2633/2833

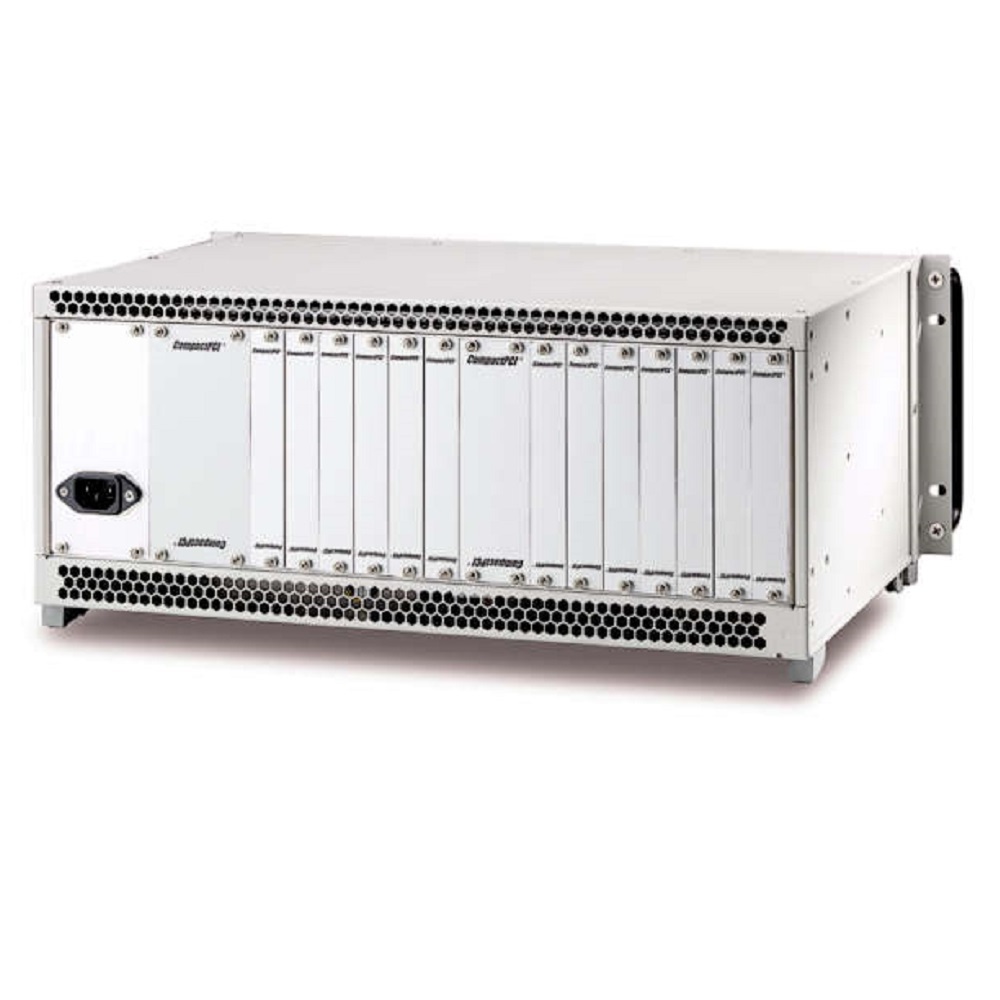

cPCIS-2633/2833 4U cPCI Chassis with 13 3U Slots and 2+1 redundant PICMG2.11 Power Supply

4U CompactPCI 19"-chassis with 13 slots for 3U boards. The robust and reliable chassis cPCIS-2633/2833 from ADLINK is suitable for applications in industrial automation and Test&Measurement.

The cPCIS-2633/2833 is designed for system-slot CPUs of 4..12HP and provides 12 32-bit CompactPCI I/O slots. The PCI-PCI bridge for the coupling of the bus segments is included in the delivery.
The 2+1 redundant power supply is realized with 250W 100..240VAC PICMG 2.11 power modules. Versions with front I/O or front/rear I/O are available.
An alarm module supervises the chassis' internal temperature and the status of the fans. Alerts are indicated via LED and buzzer. The module indicates the power supplies of 5V, 3.3V and +/-12V via LEDs.

The chassis is in combination with ADLINK's CPU boards available, e.g. cPCI-3510BL or cPCI-3520.

ORDER NOW

Technical Description

proimg1
  • 4U 19″-rackmount chassis for 3U CompactPCI boards, PICMG 2.0 Rev. 2.1, PICMG 2.1 hot swappable
  • 10 layer multilayer backplane with 8 32-bit cPCI and 3 PICMG 2.11 power supply slots
  • cPCIS-2633: backplane cBP-3213P with front I/O
    cPCIS-2633R: backplane cPB-3213PR with front/rear I/O
  • 2+1 redundant power supply via 250W 100..240VAC PICMG 2.11 power supplies (opt. 18..36VDC or 36..72VDC)
  • cPCI 32-bit bridge board
  • Cooling via 5 hot swappable fans
  • Alarm module for monitoring of the chassis’ internal temperature and fans status. Alarm indication via LED and buzzer, LED indicators for 5V, 3.3V, and +/-12V power
  • Dimensions:
    cPCIS-2633: 448.4 x 177.8 x 258mm, ( WxHxD w.o. handles)
    cPCIS-2833: 448.4 x 177.8 x 288mm, ( WxHxD w.o. handles)
  • Operating temperature range 0..60°C
  • IEEE 1101.10 und 1101.11 compliant
  • CE certified, FCC class B
  • 2 years warranty

Order Information

cPCIS-2633/AC

4U 19" cPCI chassis, 13 32-bit slots, FP I/O, incl. cPCI bridge board, 50mm RTM slots

cPCIS-2633R/AC

4U 19" cPCI chassis, 13 32-bit slots, FP/rear I/O, incl. cPCI bridge board, 50mm RTM slots

cPCIS-2833/AC

4U 19" cPCI chassis, 13 32-bit slots, FP I/O, incl. cPCI bridge board, 80mm RTM slots

cPCIS-2833R/AC

4U 19" cPCI chassis, 13 32-bit slots, FP/rear I/O, incl. cPCI bridge board, 80mm RTM slots

cPS-H325AC

250W PICMG 2.11 100..240VAC power supply

cPB-3213P

13 slot 3U cPCI backplane

cPB-3213PR

13 slot 3U cPCI backplane with rear I/O

cPCI-Panel-3U1S

3U front panel 4HP

Technical Documentation

cPCIS-2633/2833 data sheet

cPCIS-2633/2833 user manual

cPS-H325/AC+cPS-H325/48 data sheet

cPB-3213P data sheet
