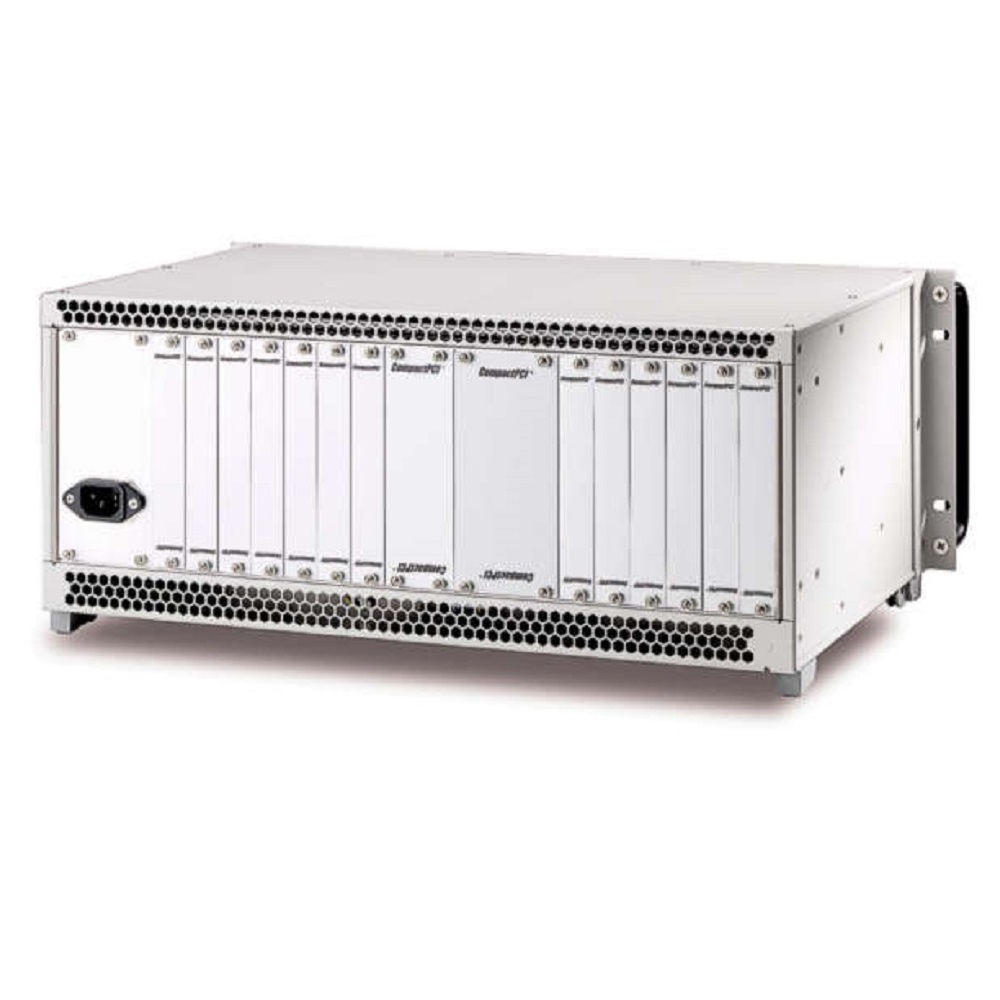

cPCIS-2642/2842 rear view
Hot swap fan exchange
Alarm module (chassis bottom view, w.o. bottom cover)
cPCIS-2642/2842 4U cPCI Chassis with dual 6 Slot 3U Backplane and PICMG2.11 Power Supplies
4U CompactPCI 19"-chassis with two independent cPCI domains with each 6 slots for 3U boards. The robust and reliable chassis cPCIS-2642/2842 from ADLINK is suitable for applications in industrial automation, laboratory, and data acquisition.
The cPCIS-2642/2842 is designed for system-slot CPUs with 4..12HP and provides five 32-bit CompactPCI I/O slots per backplane segment. The power supply is realized with plugged 250W 100..240VAC PICMG 2.11 power modules. Versions with front I/O as well as front plus rear I/O are available.
An alarm module supervises the chassis internal temperature and the status of the fans. Alerts are indicated via LED and buzzer. The module indicates the power supplies of 5V, 3.3V and +/-12V via LEDs.
The chassis is in combination with ADLINK's CPU boards available, e.g. cPCI-3510BL or cPCI-3520.
- 4U 19″-rackmount chassis for 3U CompactPCI boards, PICMG 2.0 Rev. 2.1, PICMG 2.1 hot swappable
- Two 10 layer multilayer backplanes with 6 32-bit cPCI slots each
- cPCIS-2642: 2 backplanes cBP-3206 with front I/O
cPCIS-2642R: 2 backplanes cPB-3206R with front/rear I/O
- Power supply via 250W 100..240VAC PICMG 2.11 power supply (opt. 18..36VDC or 36..72VDC)
- Cooling via 5 hot swappable fans
- Alarm module for monitoring of the chassis’ internal temperature and fans status. Alarm indication via LED and buzzer, LED indicators for 5V, 3.3V, and +/-12V power
cPCIS-2642: 448.4 x 177.8 x 258mm, ( WxHxD w.o. handles)
cPCIS-2842: 448.4 x 177.8 x 288mm, ( WxHxD w.o. handles)
- Operating temperature range 0..60°C
- IEEE 1101.10 und 1101.11 compliant
- CE certified, FCC class B
- 2 years warranty
4U 19" cPCI chassis, dual 32-bit 6 slot, FP I/O, 50mm RTM slots
4U 19" cPCI chassis, dual 32-bit 6 slot, FP/rear I/O, 50mm RTM slots
4U 19" cPCI chassis, dual 32-bit 6 slot, FP I/O, 80mm RTM slots
4U 19" cPCI chassis, dual 32-bit 6 slot, FP/rear I/O, 80mm RTM slots
250W PICMG 2.11 100..240VAC power supply
6 slot 3U cPCI backplane
6 slot 3U cPCI backplane with rear I/O
3U front panel 4HP
