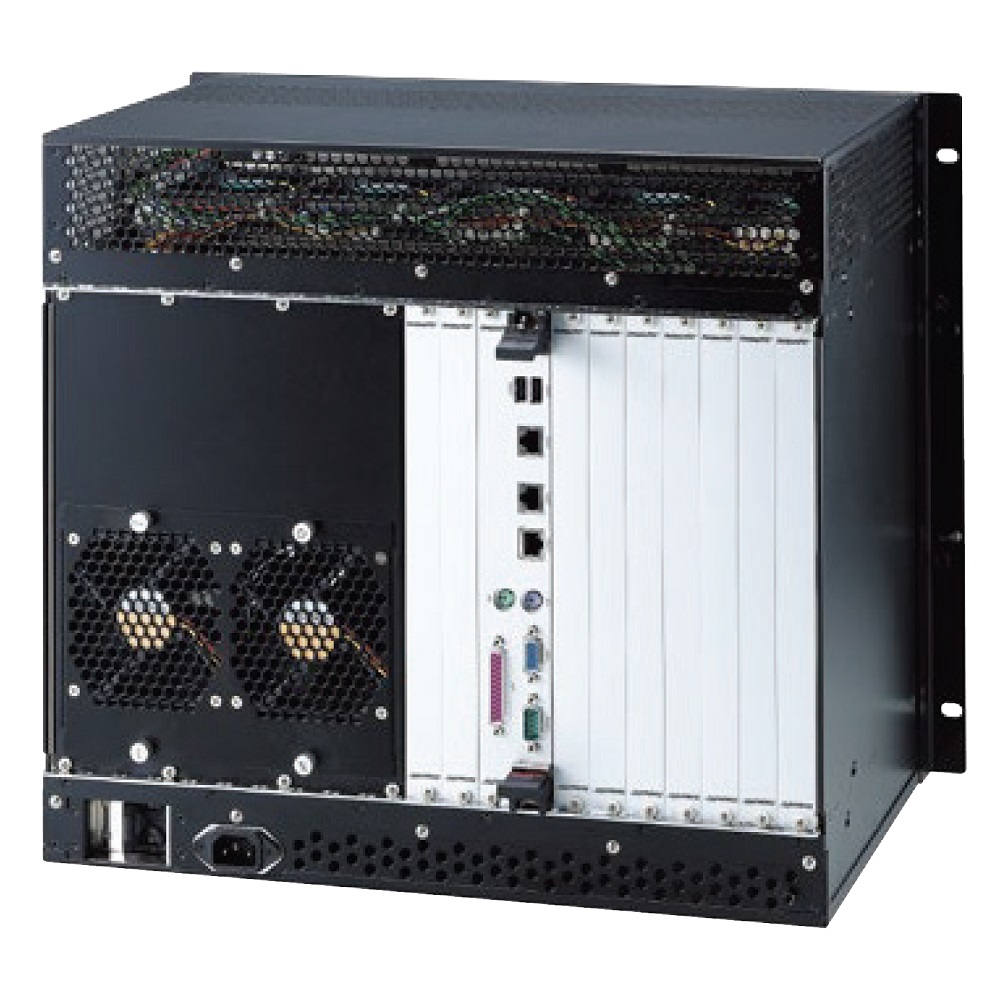

cPCIS-3330 9U CompactPCI HA Chassis with 8 Slots and H.110 Backplane

9U CompactPCI 19"-chassis with 8 slots. The robust and reliable HA chassis cPCIS-3330 from ADLINK is suitable for the use telecommunication.

The cPCIS-3330 chassis provides 8 32/64-bit CompactPCI slots with H.110 backplane, rear I/O, and 3+1 redundant 750W+250W power supplies with wide-range AC or optional DC inputs. For installation of drives are two 5.25" and a 3.5" mounting bays available on the front panel. An alarm module monitors voltages, chassis temperature, and fan status and informs the user by LEDs and a speaker.

The cPCIS-3330 chassis is available in combination with ADLINK CPU boards.


Technical Description

  • 9U 19″-rack mount chassis for 6U cPCI boards, PICMG 2.0, PICMG 2.5 (H.110), and PICMG 2.1 (hot swap)
  • cBP-6108R 32-bit or cBP-6408R 64-bit CompactPCI backplane with 8 slot H.110 CT bus and rear I/O
  • Front/rear I/O according IEEE 10.11.11
  • Two 5.25″, and one 3.5″ drive bays
  • 3+1 redundant 250W AC or 48VDC PICMG 2.11 power supplies protected via magnetic circuit breaker

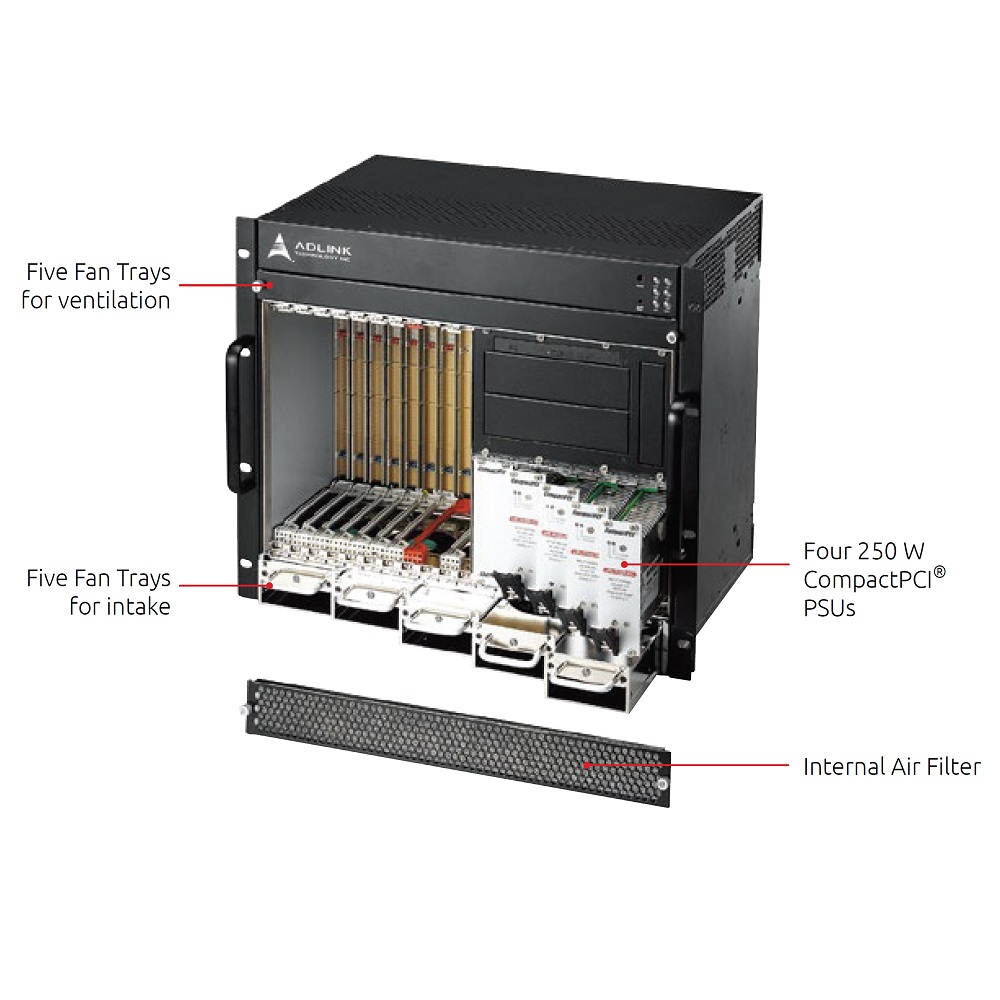

  • Cooling via 10 hot swapping filtered DC fans, performance 330m³/h
  • Alarm module with fan, voltage, and temperature monitoring, LED indicators and acoustic alarm signal
  • CE certified, FCC class A, NEBS level 3, IEEE 1101.10 und 1101.11 compliant
  • Operating temperature range 0..45°C
  • Dimensions 482.75 x 400 x 296.2mm (WxHxD)
  • 2 years warranty

Order Information


9U 19" cPCI chassis, 8 slot 32-bit H.110 backplane, rear I/O, 4 AC power supplies, alarm module


9U 19" cPCI chassis, 8 slot 64-bit H.110 backplane, rear I/O, 4 AC power supplies, alarm module


9U 19" cPCI chassis, 8 slot 32-bit H.110 backplane, rear I/O, 4 48V DC power supplies


cPCI 6U backplane, 8 slots, 32-bit, H.110, rear I/O


cPCI 6U backplane, 8 slots, 64-bit, H.110, rear I/O


250W PICMG 2.11 100..240VAC power supply


250W PICMG 2.11 18..36VDC power supply


250W PICMG 2.11 36..72VDC power supply


6U front panel

Technical Documentation

cPCIS-3330 data sheet

cPCIS-3330 user manual

cBP-6xxx data sheet

cPS-H325/AC+cPS-H325/48 data sheet

cPS-H325/24+cPS-H325/110 data sheet
