cPCIS-6235R CompactPCI chassis with 3 slots and standard or H.110 backplane

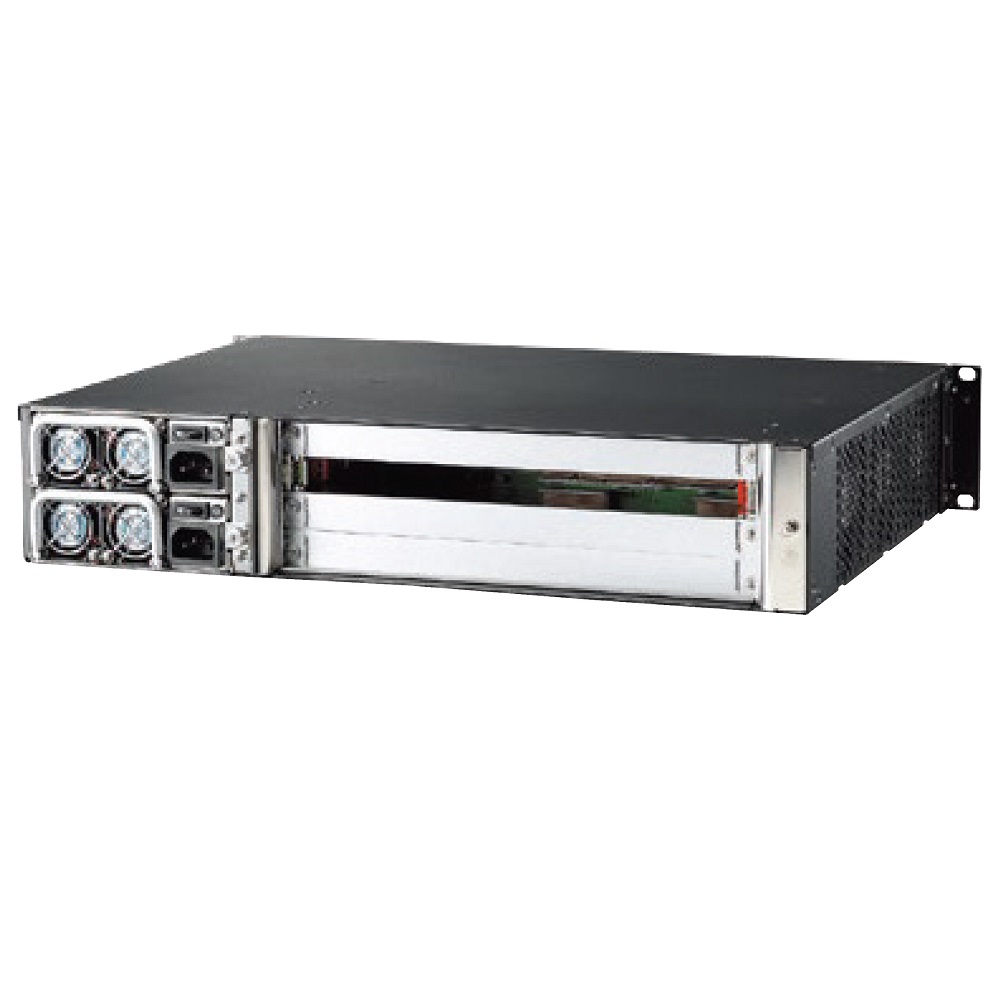

cPCIS-6235R rear view

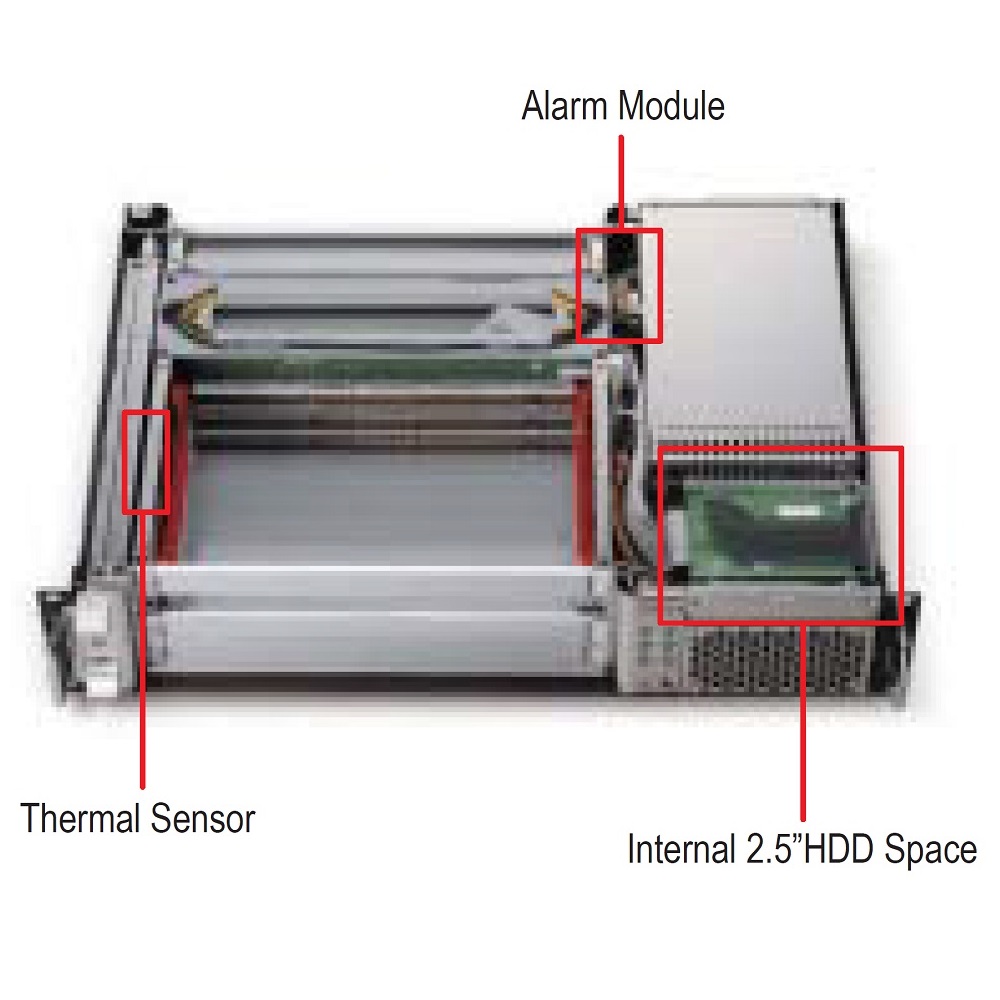

cPCIS-6235R inside view

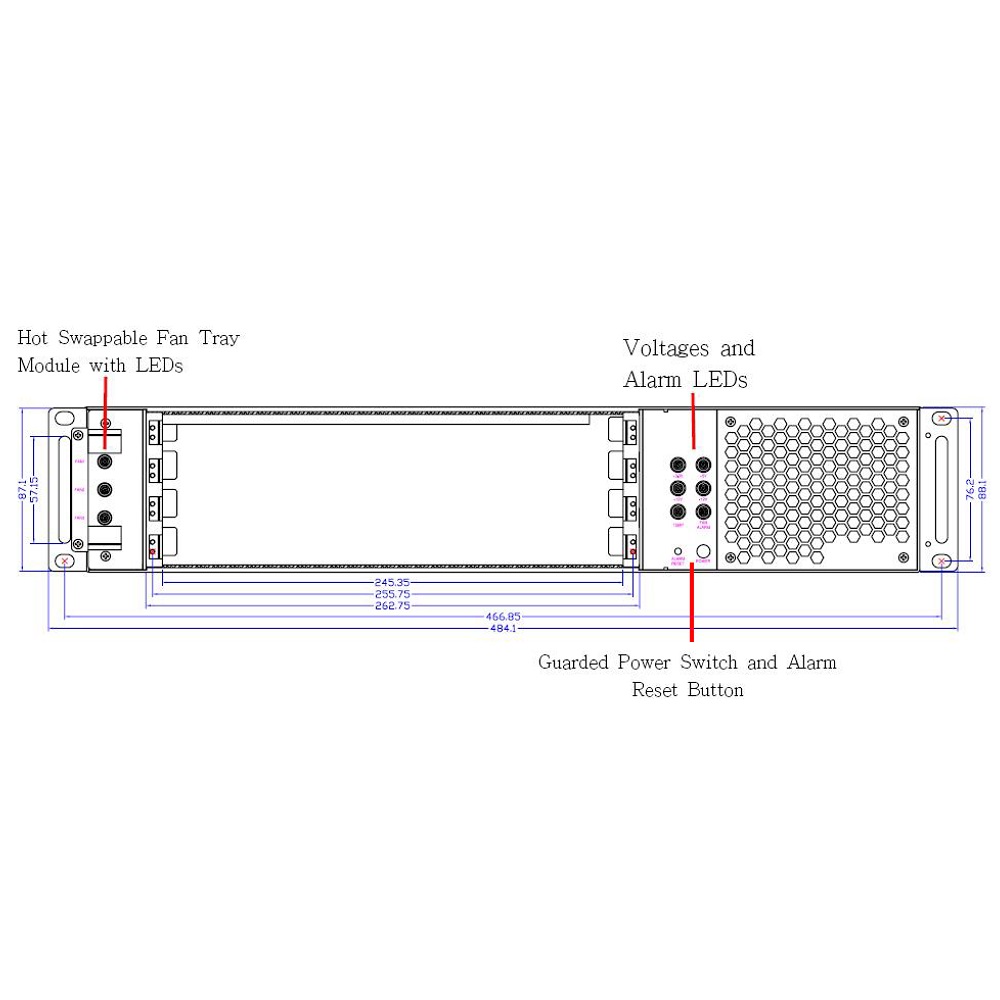

cPCIS-6235R front view mechanical drawing

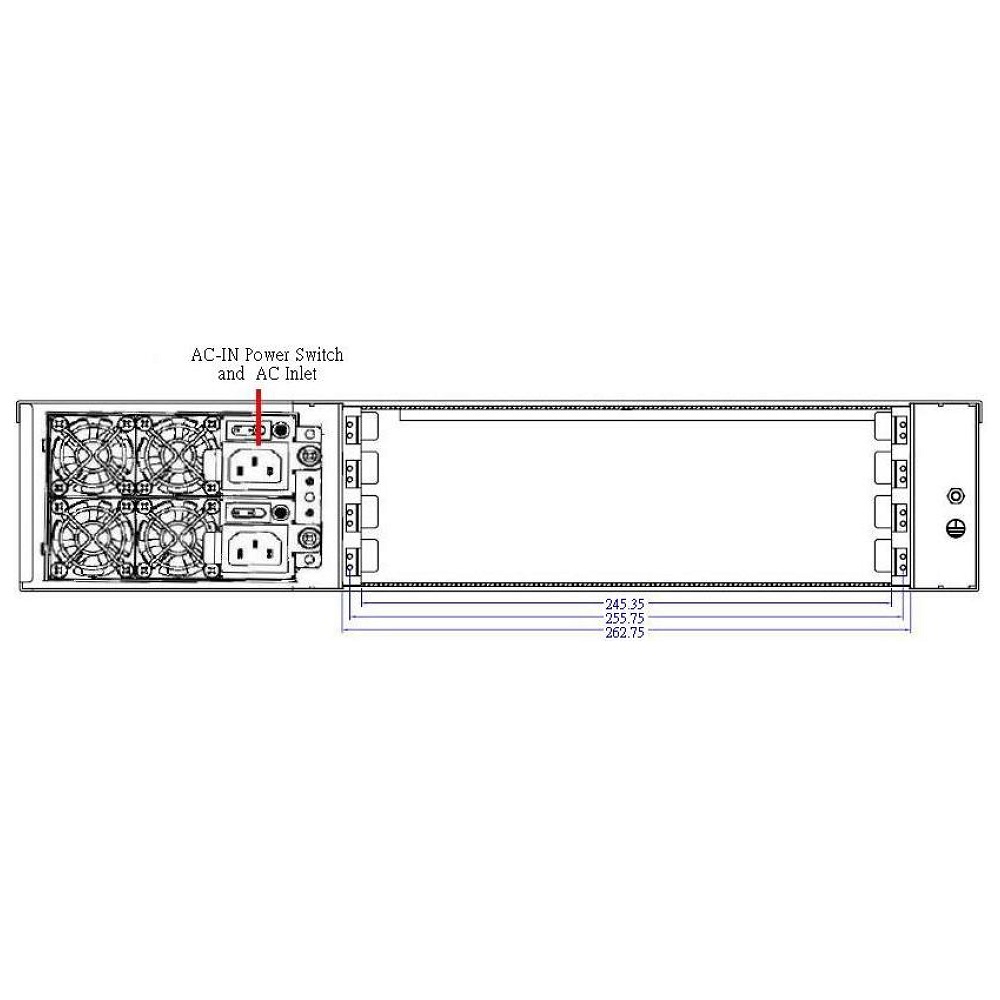

cPCIS-6235R rear view mechanical drawing
cPCIS-6235R 2U CompactPCI Rackmount Chassis with 3 Slots
2U CompactPCI rackmount chassis with 3 slots. The chassis cPCIS-6235 from Adlink may be used for single or dual slot CPU boards and supports rear I/O modules. Versions with 32 or 64 bit H.110 (PICMG 2.5) and standard backplanes are available, and the systems are PICMG 2.1 hot swap compliant.
The cPCIS-6235 comes with mini redundant 300W AC power supply units, has internal space for one 2.5" hard disk drive and access for one external IDE device.
The chassis are available in combination with ADLINK CPU boards e.g. cPCI-6540, and all others. We offer system configurations which fit into your special requirements.
- 2U 19″ rack mounted chassis for 6U CompactPCI boards with rear I/O, PICMG 2.0 R3.0, PICMG 2.1 R2.0, PICMG 2.5 R1.0
- 3 CompactPCI slots
- 32 bit and 64 bit H.110 and 64 bit standard backplane configurations
- Redundant 300W AC power supply with 90V to 264V input range
- Internal space for one 2.5″ hard disk drive
- LED indicators for 3.3V, 5V, 12V, and -12V power supply voltages, fan status and temperature alarm
- Alarm module for chassis temperature and fan status monitoring
- Redundant cooling with 3 DC fans, hot swap
- Guarded power and reset switch
- 0°C .. 40°C operating temperature range
- 2 years warranty
2U 19" CompactPCI chassis with 3 slot 32 bit backplane, hot swappable fan tray, and redundant 300W AC power supply
2U 19" CompactPCI chassis with 3 slot 64 bit backplane, hot swappable fan tray, and redundant 300W AC power supply
