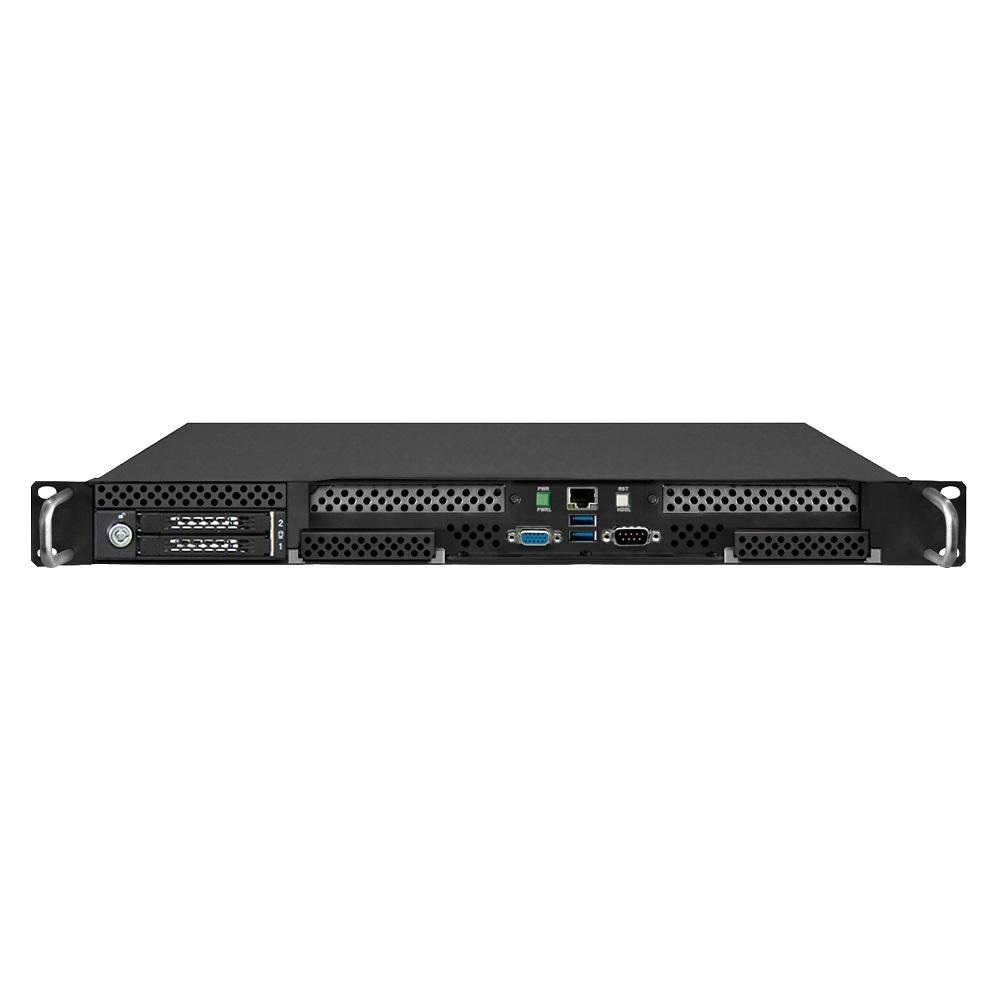

GAP-145F-S7 Server front view

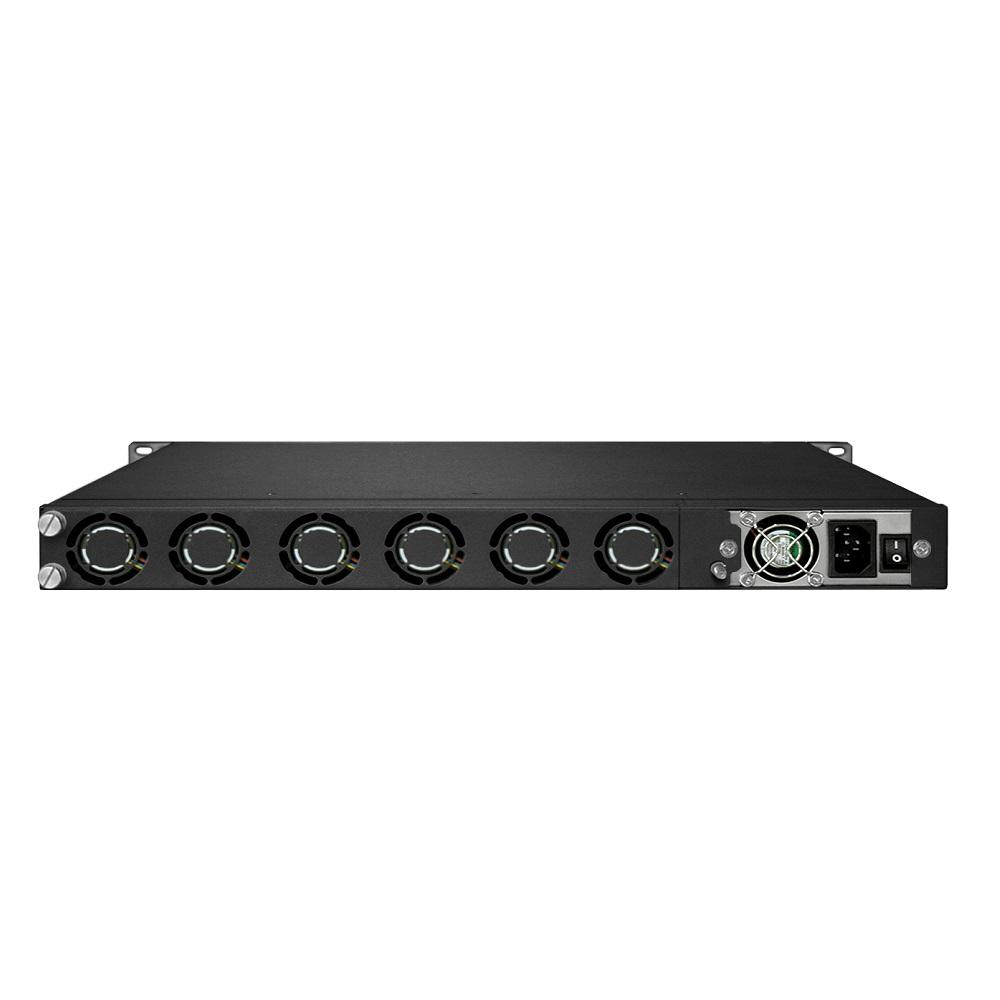

GAP-145F-S7 Server rear view

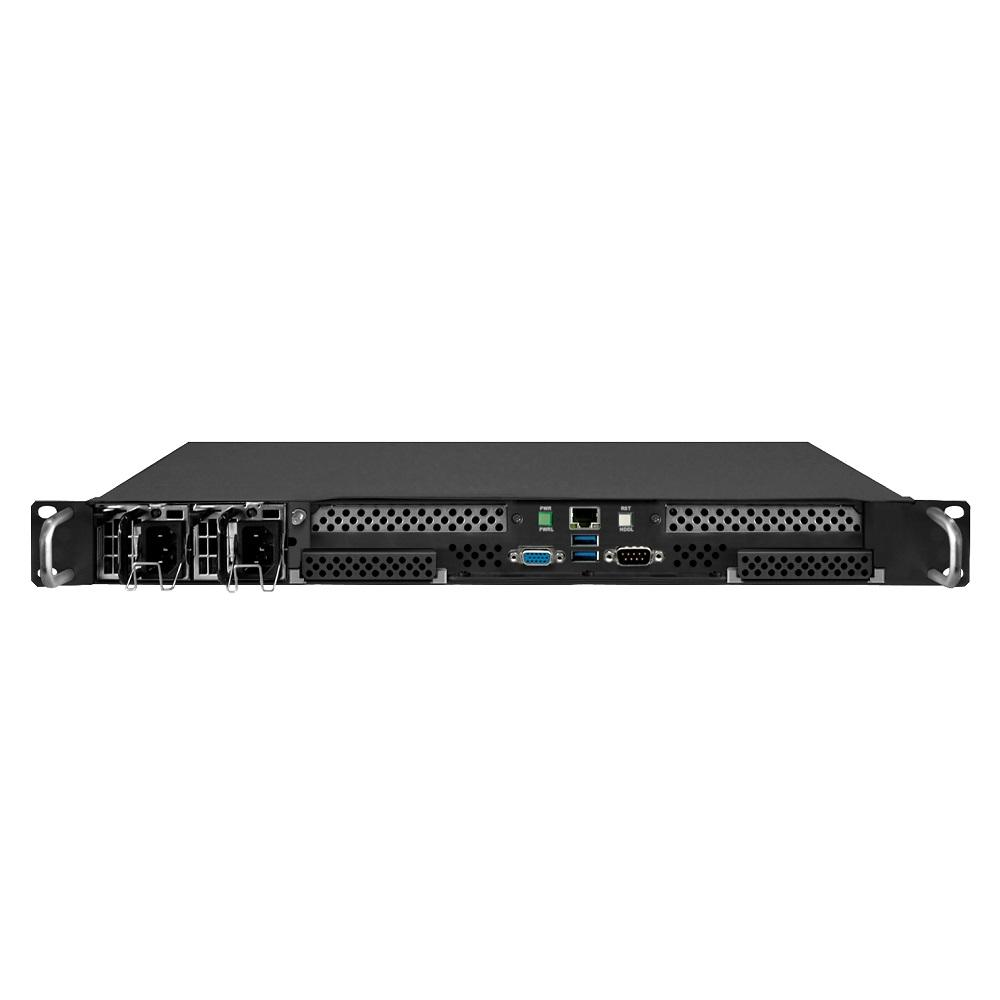

GAP-145P-S7 Server front view

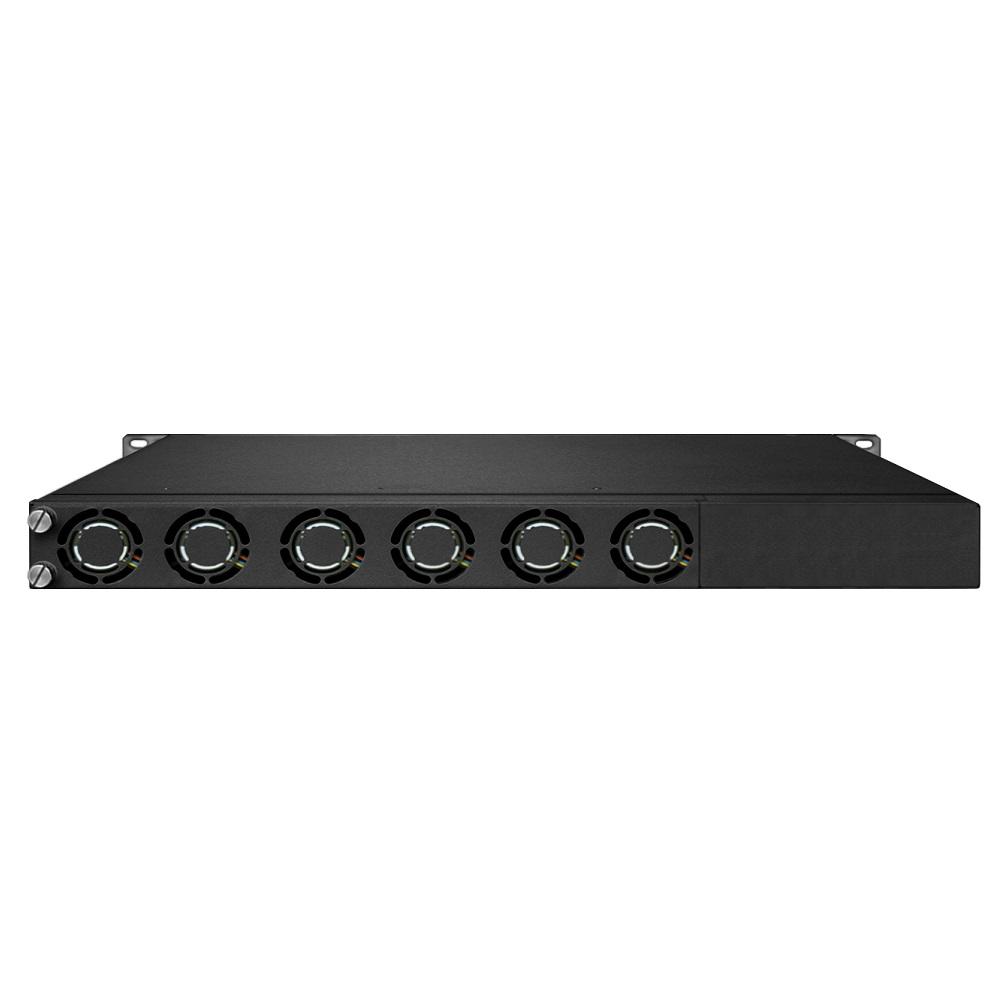

GAP-145P-S7 Server rear view
GAP-151R-S7 Server front view

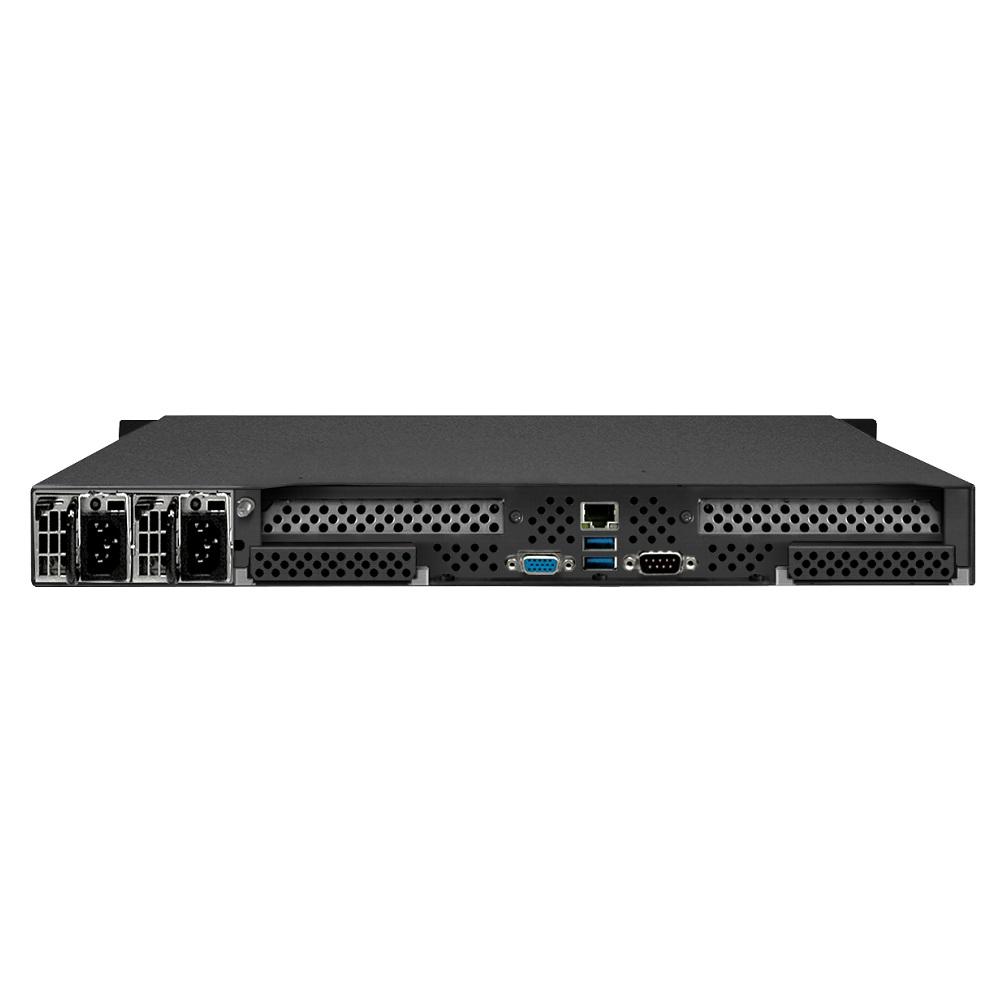

GAP-151R-S7 Server rear view
1U Rugged Server with 2 Xeon CPUs, up to 4TB RAM and Front or Rear Power Supply
1U Rugged Server with two Intel® Xeon® Gen. 3 Scalable and 4TB RAM. The GAP series of rugged servers and workstations are designed for applications that require rugged and qualified MIL-GRADE equipment with up to 20G/11ms shock (MIL-STD-810G Method 516.7). The GAP-1xxx-S7 are designed for 19" rack mounting and are suitable for operation in critical environments. The 1U servers feature scalable dual-socket 3rd generation Intel® Xeon® processors that provide integrated AI acceleration and advanced security features, as well as up to 4TB of DDR4 3200 RAM. Integrated IPMI services support monitoring, control and management funtions sending alarm notifications in case of critical events. GAP servers are designed to meet MIL-STD-810F for temperature and shock and MIL-STD-167-1A for vibrations. Optionally, they can conform to MIL-STD-461 for EMI/EMC. The I/O connectors and power supply input can be provided with MIL-GRADE connectors. All version have two M.2 NVMe slots, one Disk on Module slot, two PCIe 4.0 x16 full height half length slots and two GbE/10GbE/25GbE/100GbE OCP NIC 3.0 slots with RJ45 or SFP connectors.
The GAP-145F-S7 has a depth of 450mm. The front I/O and rear power supply layout includes two removable U.2 NVMe SSDs or three removable 2.5" SAS/SATA SSDs. The server provides VGA, 2x USB 3.0, IPMI LAN und COM in the front.
The GAP-145P-S7 has a depth of 450mm. The front I/O and front power supply layout includes a 2.5" U.2 /SATA/SAS SSD. The server provides VGA, 2x USB 3.0, IPMI LAN und COM in the front.
The GAP-151R-S7 has a depth of 510mm. The rear I/O and rear power supply layout includes 6 removable U.2 NVMe SSDs or 9 removable 2.5" SAS/SATA SSDs. The server provides VGA, 2x USB 3.0, IPMI LAN und COM in the rear. Optional DVD drive is available.
- 1U rugged server, 450mm or 510mm depth
- 2x Intel® Xeon® 3rd Gen scalable processors
- Up to 4TB ECC DDR4-3200 MHz RAM, 16 DIMM slots
- Intel C621A chipset
- ASPEED AST2600 BMC graphics
- 2x GbE/10GbE/25GbE/100GbE OCP NIC 3.0 slots with RJ45 or SFP connectors
- 2x PCIe 4.0 x16 full height half length slots
- 2x M.2 2280 NVMe with M-Key
- Disk on Module
- GAP-145F: Up to 2x hot-swap U.2 NVMe SSD or 3x hot-swap 2.5″ SATA/SAS SSDs
GAP-145P: One 2.5″ U.2 NVMe/SATA/SAS SSD
GAP-151R: Up to 6x hot-swap U.2 NVMe SSD or 9x hot-swap 2.5″ SATA/SAS SSDs
- VGA, 2x USB 3.0, IPMI LAN and COM in the front of the GAP-145F and GAP-145P version, in the rear of the GAP-151R version
- Optional DVD drive at GAP-151R version
- GAP-145F: Rear AC power supply
GAP-145P: Front redundant AC power supply
GAP-151R: Rear redundant AC power supply
- 0°C .. 50°C operating temperature range, MIL-STD-810H, method 501.7 & 502.7,
optional -20°C .. +60°C operating temperature range
- 20G/11ms shock MIL-STD-810G method 516.7, optional EMC MIL-STD-461 and conformal coating
- 2 years warranty
1U Rugged Server, front I/O, rear power supply, 3x hot-swap SSD, 450mm depth
1U Rugged Server, front I/O, front power supply redundant, 4x SSD, 450mm depth
1U Rugged Server, rear I/O, rear power supply redundant, 9x hot-swap SSD, 510mm depth
1U Rugged Server, rear I/O, rear power supply redundant, 9x hot-swap SSD, DVD, 510mm depth
Server_GAP-145F-S7 data sheet
Server_GAP-145P-S7 data sheet
Server_GAP-151R-S7 data sheet
