3U VPX CPU Board with Intel Xeon D-1500 Processor, 10Gigabit Ethernet, Kintex-7 FPGA and opt. XMC Slot

3U VPX CPU board with an Intel Xeon D-1500 processor, Kintex-7 FPGA and up to 32 GB DDR4 ECC SDRAM. The board has a boot flash memory.

The Interface Concept IC-INT-VPX3e offers two 10Gigabit Ethernet ports, one Gigabit Ethernet port, 4 PCIe x4 ports, 4 SATA ports, one RS-232/422/485 port, one console port, 4 USB ports, 8 differential pairs, 6 GPIO ports and one onboard SATA NAND SSD. Optional is one XMC slot available.

The board is available in six versions. There is a standard 0°C to 55°C version, -20°C to +65°C, -40°C to +75°C rugged, -40°C to +85°C rugged, -40°C to +71°C conduction-cooled and -40°C to +85°C conduction-cooled operating temperature ranges.

The board supports Linux distributions. For VxWorks and Windows please contact us.

ORDER NOW

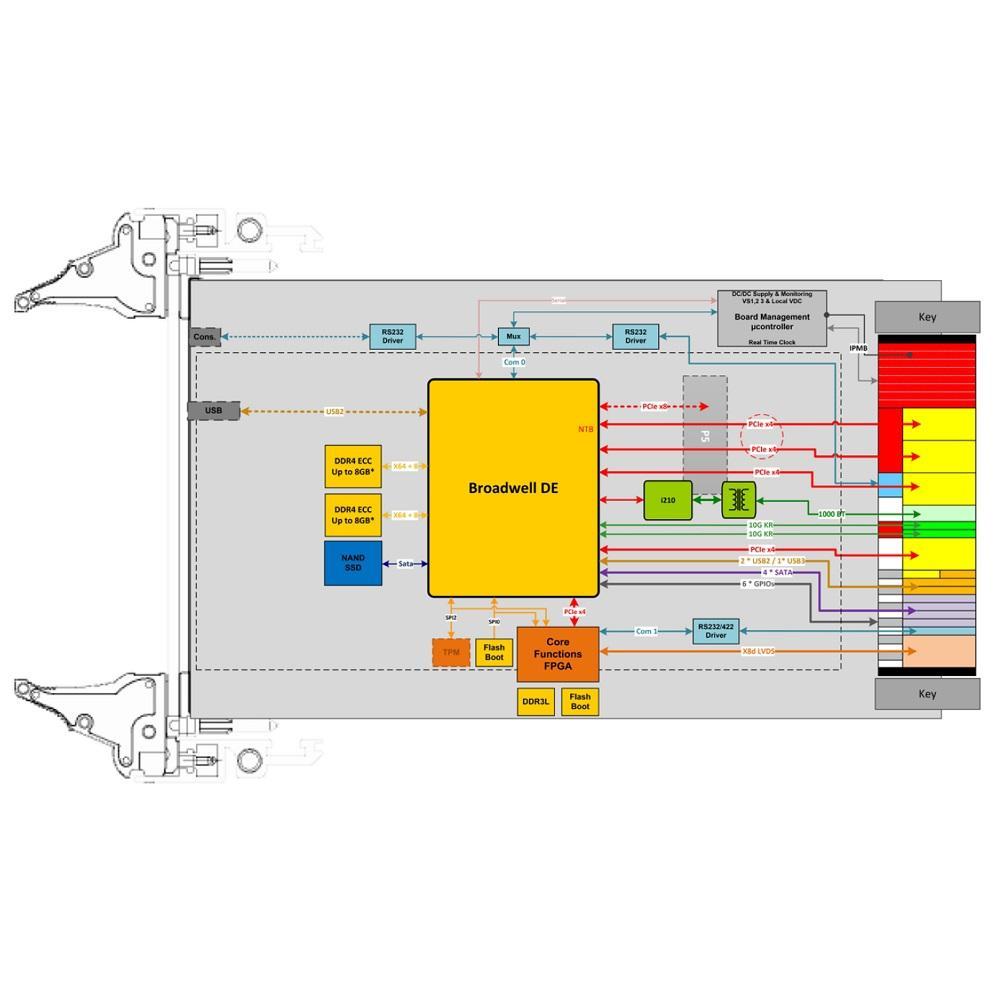

Technical Description

proimg1

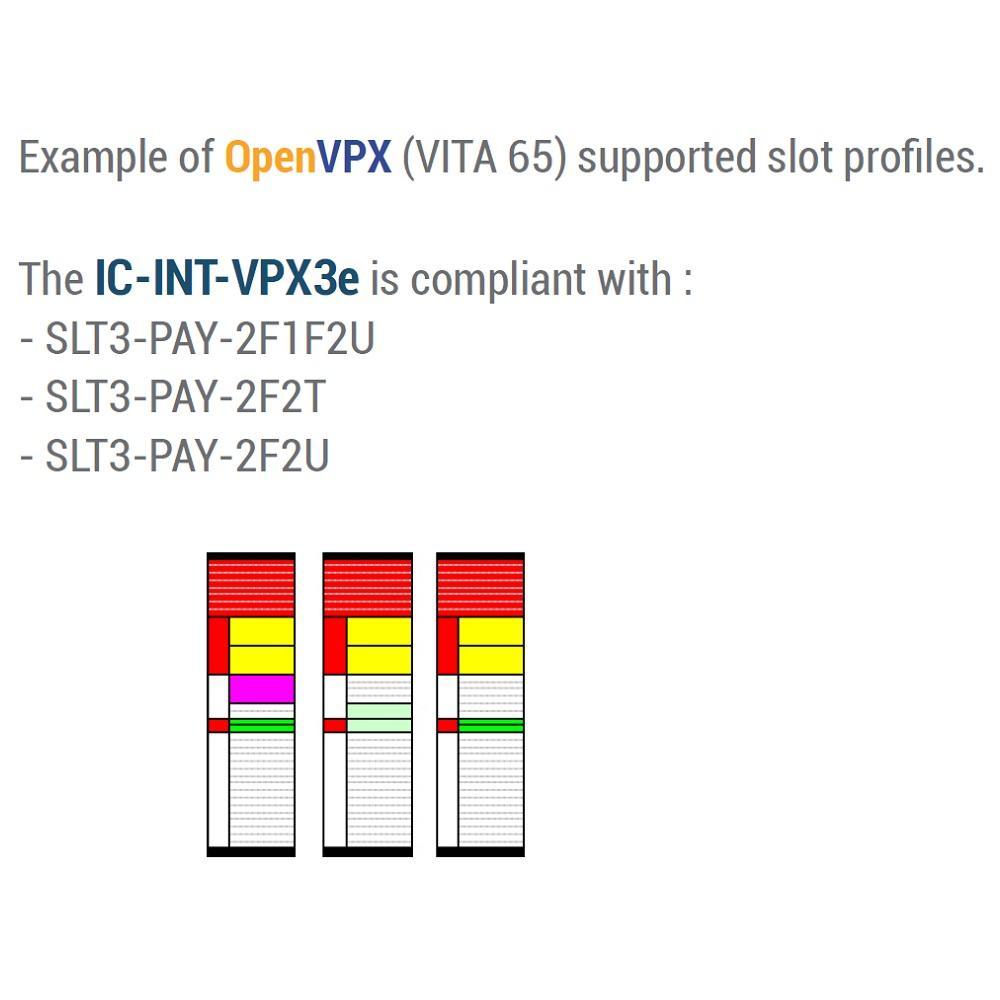

  • 3U/4HP VPX CPU board, VITA 46.0, VITA 46.11, VITA 65 and OpenVPX compliant
  • SL3-PAY-2F1F2U,
    SL3-PAY-2F2T,
    SL3-PAY-2F2U OpenVPX profile
  • One Intel Xeon D-1500 CPU
  • Up to 32 GB DDR4 ECC RAM
  • ARM Kintex-7 FPGA
  • Optional XMC slot
  • Two 10GBase-KR Ethernet ports via P1
  • One Gigabit Ethernet port via P1
  • 4 PCIe x4 ports, 3 Gen3 ports via P1A/P1B/P1C and 1 Gen2 port (can be splittet in 4 x1 ports) via P2A
  • 4 SATA ports via P2
  • One RS-232/422/485 port via P2
  • One console port via mini USB in the front panel or via P1 or via P2
  • 4 USB ports, 1 USB 3.0 port via P2, 2 USB 2.0 ports via P2, 1 USB 2.0 front panel port or via P2
  • 8 differential pairs from FPGA to P2
  • 1 onboard SATA NAND SSD
  • 6 GPIO ports via P2
  • UEFI BIOS
  • Thermal/voltage monitoring sensors
  • Available in 6 environmental classes: standard (0°C .. 55°C), extended grade (-20°C .. +65°C), rugged (-40°C .. +75°C), rugged (-40°C .. +85°C), conduction-cooled (-40°C .. +71°) and conduction-cooled (-40°C .. +85°)
  • 2 years warranty

Order Information

IC-INT-VPX3e-100

3U VPX Xeon CPU board, 0 .. +55°C

IC-INT-VPX3e-100e

3U VPX Xeon CPU board, -20 .. +65°C

IC-INT-VPX3e-100r1

3U VPX Xeon CPU board, -40 .. +75°C, rugged

IC-INT-VPX3e-100r2

3U VPX Xeon CPU board, -40 .. +85°C, rugged

IC-INT-VPX3e-100c1

3U VPX Xeon CPU board, -40 .. +71°C, conduction-cooled

IC-INT-VPX3e-100c2

3U VPX Xeon CPU board, -40 .. +85°C, conduction-cooled
