NAMC-8569-CPU Processor AMC with 1.3 GHz MP8569 PowerPC

The 1.3 GHz MPC8569 PowerQUICC III PowerPC CPU with e500 PowerPC Core and 4 RISC Cores provides up to 1 GB DDR2 SDRAM, 512 KB MRAM, 2 GB NAND flash and up to 128 MB NOR flash. The Lattice ECP3 FPGA with up to 70,000 logic cells and timeslot interchanger (TSI) provides a TDM to I-TDM bridge. 125 µs and 1 ms I-TDM are supported as well as TDM cross-connect. An opt. additional H.110 like 32 MHz clocked TDM interface is available.

The NAMC-8569-CPU module from NAT has four Gigabit Ethernet ports, one RS-232 port, one USB 2.0 port, one MicroSD slot and opt. one sub module slot for custom IO in the full size version. Two Gigabit Ethernet ports, the RS-232 and the USB port are available on the front panel. On the backplane are Serial Rapid IO (SRIO), PCI Express (PCIe) and Gigabit Ethernet (GbE) available. The fabric interface can be configured to implement either one PCIe x1 or one PCIe x4 or two SRIO x1 or one SRIO x4 or one PCIe x1 and one SRIO x1 port. The base interface offers Gigabit Ethernet.

The module supports Embedded Linux, QNX including SRIO support and the real time Open Kernel 1 (OK1), which will be delivered in source code.

ORDER NOW

Technical Description

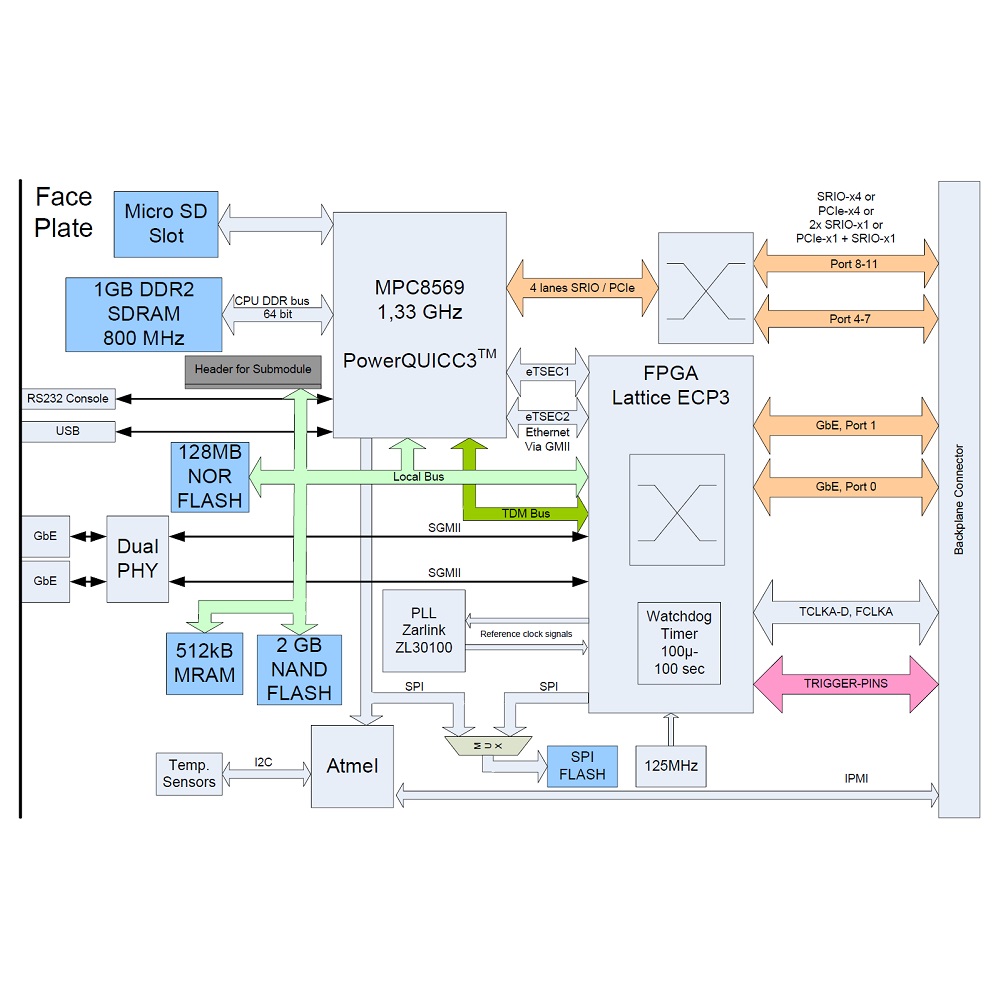

proimg1
  • Processor AMC module
  • AMC-Modul with AMC.1 type 4 or AMC.1 type 1, AMC.2 type E2 and AMC.4 SRIO interface, mid size and full size form factor
  • Up to 1.3 GHz Freescale PowerQUICC III MPC8569 processor with e500 PowerPC Core and 4 RISC Cores
  • Up to 1 GB DDR2 SDRAM
  • 2 GB NAND flash + up to 128 MB NOR flash
  • 512 KB MRAM
  • Lattice ECP3 FPGA with up to 70,000 logic cells
  • MicroSD slot
  • Four Gigabit Ethernet ports, 2 front panel ports and 2 ports on the backplane via port 0 and 1
  • RS232 port on the front panel
  • USB port on the front panel
  • I-TDM interface, 125 µs and 1 ms I-TDM modes as well as TDM cross-connect
  • Opt. H.110 like 32 MHz TDM interface
  • Serial Rapid IO (SRIO), PCI Express (PCIe) and Gigabit Ethernet (GbE) on the backplane
  • Sub module slot for custom IO, only in full size version
  • 0°C .. 55°C operating temperature range
  • 24 W power consumption
  • 2 years warranty

Order Information

NAMC-8569-CPU-F

Processor AMC module, 1.3 GHz MP8569 PowerPC, GbE, full size

NAMC-8569-CPU-M

Processor AMC module, 1.3 GHz MP8569 PowerPC, GbE, mid size

Technical Documentation

NAMC-8569-CPU-DS

NAMC-8569-CPU Data Sheet

NAMC-8569-CPU-UM

NAMC-8569-CPU User Manual
