NAMC-EXT-RTM Extender for AMC Modules
The NAMC-EXT-RTM-F and NAMC-EXT-RTM-F-PS from N.A.T. are passive extender cards for testing MicroTCA.4 systems. The NAMC-EXT-RTM-R is for testing Tranistion Module (RTM). The NAMC-EXT-RTM-F/-PS provides access to the double width AMC modules.
The extenders support all fabric connectors as specified by the AMC.x and the additional I/O connector of the MicroTCA.4 specifications. For the purpose of voltage and current measurements the NAMC-EXT-RTM-F/-PS allows access to the respective power planes. The extenders are targeted at any applications running in MicroTCA.4 systems. The extenders provide access to the tracks of payload power and management power voltage. This enables users to easily check these voltages as well as to measure the power consumption of the AMC under test conditions.
The NAMC-EXT-RTM-F-PS offers an additional on-board 3.3V power supply requiring only 12V for standalone usage of the AMC module.

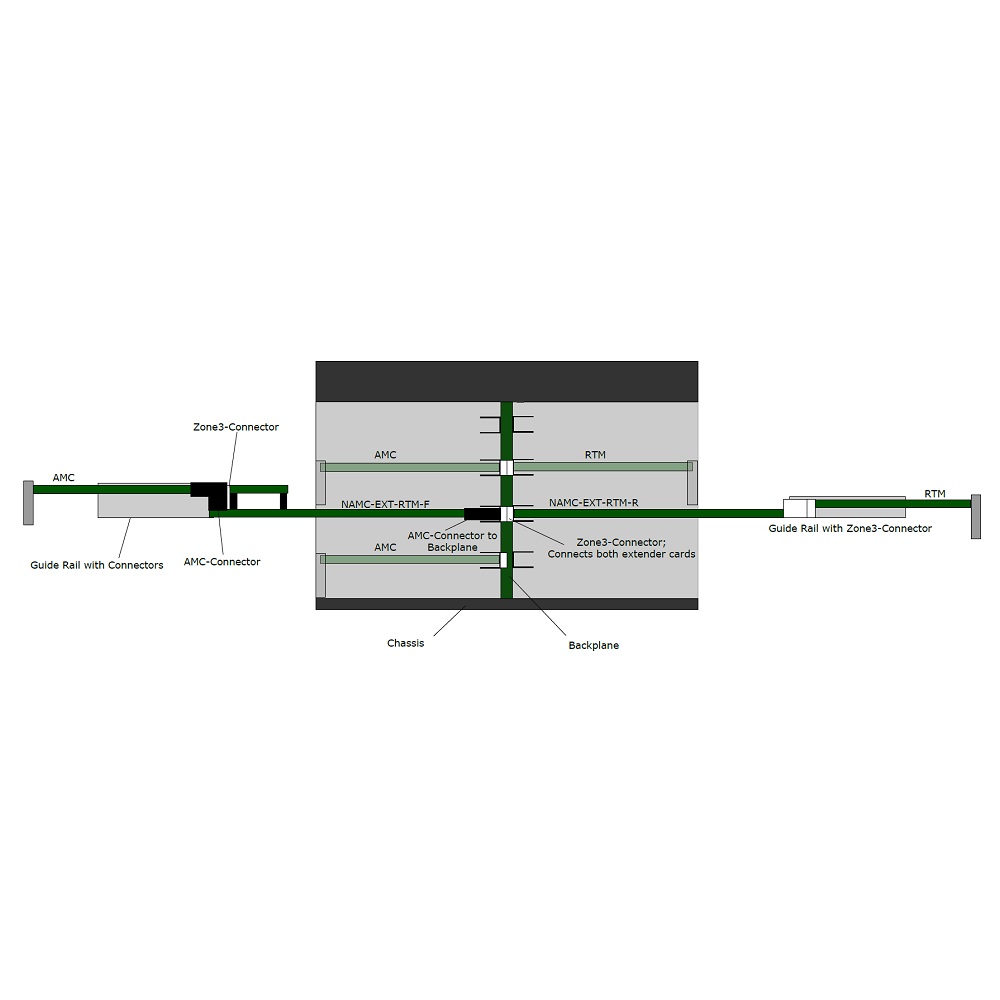

The NAMC-EXT-RTM-R allows easy signal access to the front- and rear-site of an RTM module outside the chassis. It is connected to the NAMC-EXT-RTM-F/-PS via the I/O connector.
- AMC extender module, double width form factor
- Easy signal access to the front and rear side of an AMC module from outside the chassis
- Voltage and current measurement of management and payload power
- Test points for soldering additional cables to measure all AMC signals
- Test points for JTAG interface
Additional 3.3V on-board power supply allows stand-alone mode of an AMC module (only 12V required)
Easy signal access to the front and rear side of an RTM module from outside the chassis
- -40°C .. +85°C operating temperature range
- 2 years warranty
Extender board, double full size, rear part of xTCA-Physics system
Extender board, double full size, break out for management and payload power, front part of xTCA-Physics system
Extender board, double full size, break out for management and payload power, on-board 3.3V power supply for stand-alone operation, front part of MTCA.4 system
NAMC-EXT-RTM Data Sheet
NAMC-EXT-RTM-F User Manual
NAMC-EXT-RTM-R User Manual
