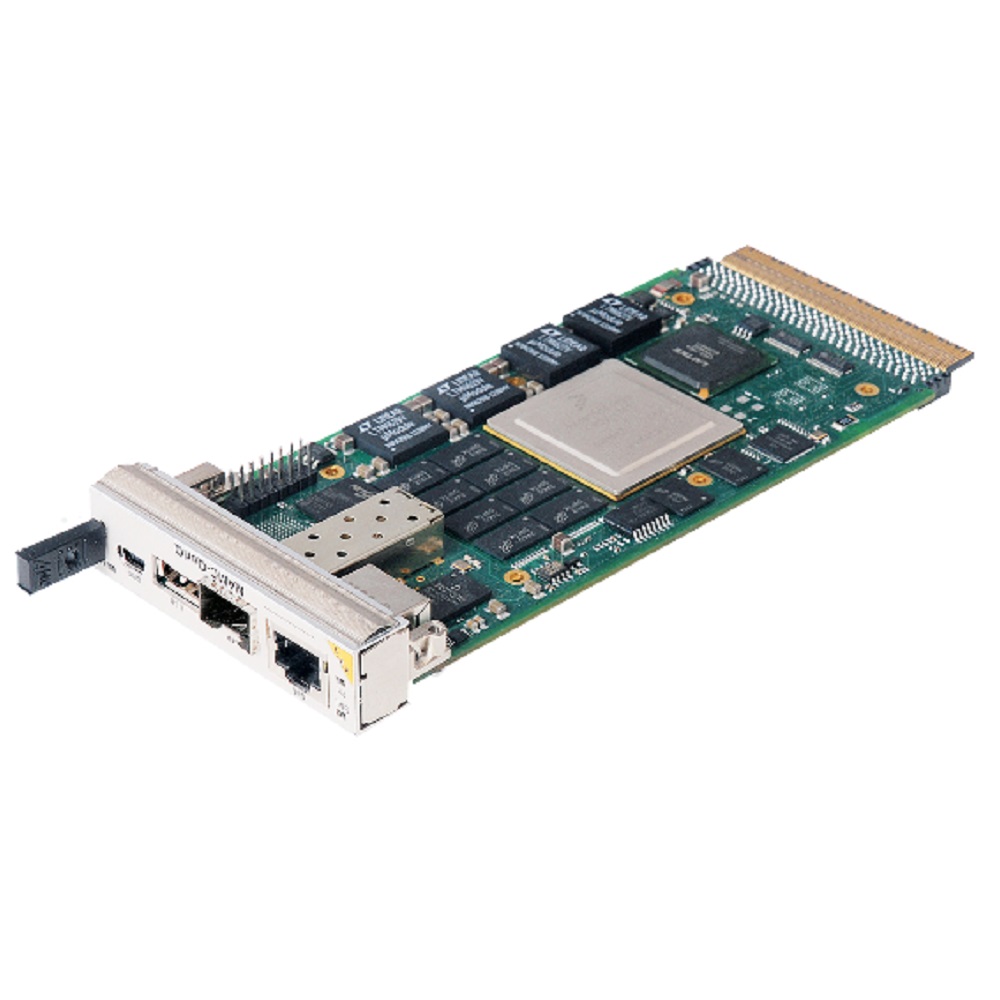

NAMC-QorIQ-P4080 Processor AMC with 8 Core 1.5 GHz P4080 PowerPC and opt. 10GbE Front Panel Port

The processor AMC module offer an 1.5 GHz P4080 processor with 8 e500mc PowerPC Cores and have up to 8 GB DDR3 1333 MHz ECC SDRAM and up to 2 GB NAND flash. The Lattice ECP3 FPGA offers ITDM, PTP protocol acceleration, and IEEE1588/RTP timestamp insertion/synchronization. RTP (Real Time Protocol) and PTP (Precision Time Protocol) real time clock and PPL telecom clock are supported. An opt. additional H.110-like timeslot interchanger (TSI) interface is available.

The NAMC-QorIQ-P4080 series from NAT has three Gigabit Ethernet ports, two SATA ports, one USB port, and 18 SerDes ports. The backplane offers Serial Rapid IO x4 (SRIO), 10Gigabit Ethernet (XAUI), and PCIe x4. Opt. one 10Gigabit Ethernet SFP+ port, one RS-232 port, I-TDM and H.110 are available. One Gigabit Ethernet, one USB 2.0 and opt. one 10Gigabit Ethernet and opt. one RS-232 port are available on the front panel.

The module supports Linux, QNX, VxWorks, the real time Open Kernel 1 with multi processing (OK1-M), which will be delivered in source code and the multi-core real-time operating system Enea OSE which is optimized for Telecom applications.

ORDER NOW

Technical Description

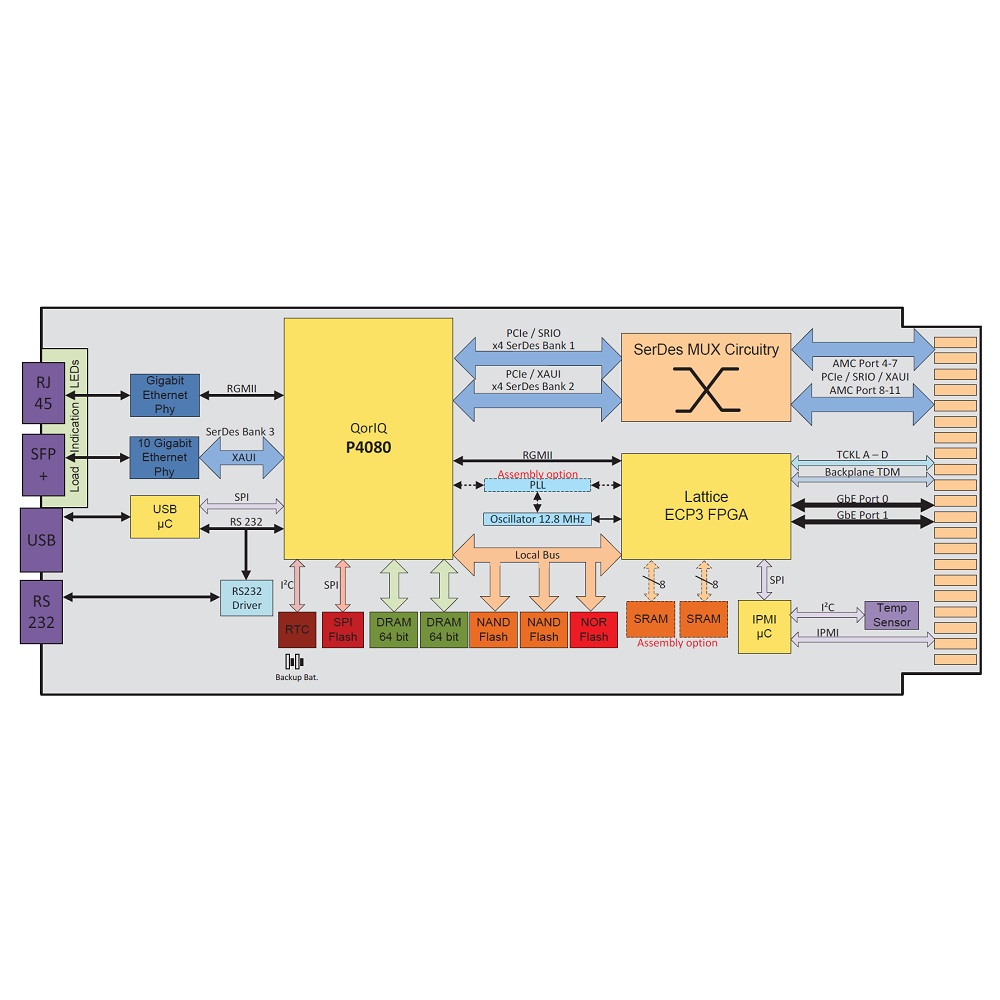

proimg1
  • Processor AMC module
  • AMC-Modul with AMC.1 type 4, AMC.2 type E2, AMC.3 SATA and AMC.4 SRIO interface, mid size and full size form factor
  • 8 Core 1.5 GHz P4080 processor with e500mc PowerPC Cores
  • Up to 8 GB DDR3 1333 MHz ECC SDRAM
  • Up to 2 GB NAND flash
  • 18 SerDes ports (two XAUI, three PCIe 2.0, two SRIO 1.3 & 2.1, and eight SGMII)
  • Lattice ECP3 FPGA or Xilinx Virtex-6 FPGA XC6VLX130T, XC6VLX195T, XC6VLX240T or XC6VLX365T
  • Opt. 10Gigabit Ethernet port (XAUI) SFP+ front panel port
  • Three Gigabit Ethernet ports, 1 front panel port and 2 ports on the backplane via port 0 and 1
  • Two SATA ports on the backplane via port 2 and 3
  • USB front panel port
  • Opt. RS-232 front panel port
  • Opt. I-TDM interface
  • Opt. H.110 like TSI interface
  • Serial Rapid IO x4 (SRIO), PCI Express x4 (PCIe) and 10Gigabit Ethernet x4 (XAUI) on the backplane via port 4-7 or 8-11
  • 0°C .. 55°C operating temperature range
  • 2 years warranty
