NAT-FMC-SDR

NAT-FMC-SDR4 with 2 Analog Devices ADCs and 4 Rx/Tx with HPC

The NAT-FMC-SDR4 is a radio frequency (RF) front-end FMC module that provides eight front panel ports for connection to antennas in wireless networks (4x transmit, 4x receive). ADRV9009 RF transceivers provide the transmit/receive functionality, with 200 MHz instantaneous bandwidth per channel.

Two modules may be stacked to provide 8 Rx/Tx channels. Mounting one or two NAT-FMC-SDR4 RF transceiver FMC module(s) to the NAMC-ZYNQUP-FMC creates the NAT-AMC-ZYNQUP-SDR4 (or 8), which combines high performance FPGA processing with RF front-end antenna connections. The nature of the mezzannine connectors means that, for an 8-channel module, the variants to mount on the FPGA carrier board are NAT-FMCSDR4-M and NAT-FMC-SDR4-T.

ORDER NOW

Technical Description

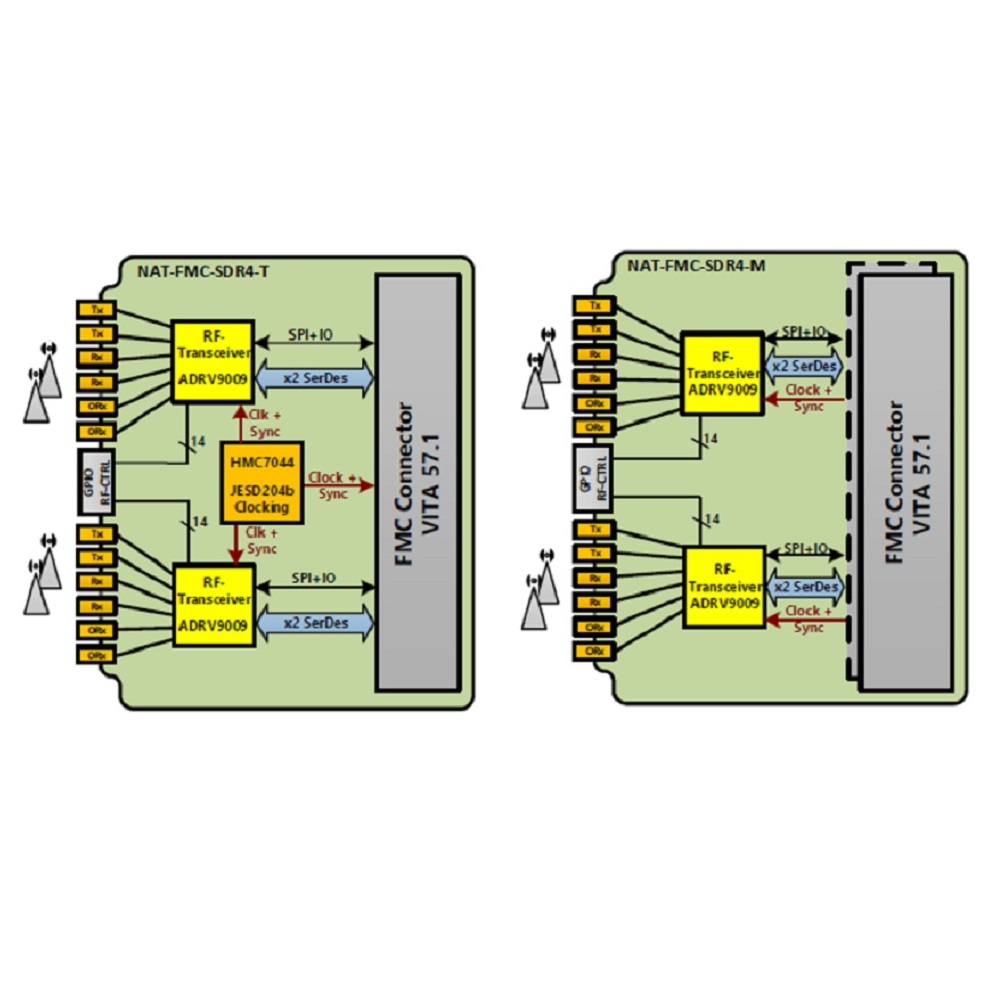

proimg1
  • FMC module, VITA 57.1 comliant
  • 4 Rx and 4 Tx channels with 200 MHz instantaneous bandwidth each
  • Rx observation channel for DPD and PA
  • 2 Analog Devices ADRV9009
  • Synchronizable for creating large phased arrays
  • 200 MHz maximum receiver bandwidth
  • 450 MHz maximum observation receiver bandwidth
  • 450 MHz maximum tuneable transmitter synthesis bandwidth
  • Multichip phase synchronization for RF- and baseband signals
  • Multiboard synchronization
  • 75 MHz to 6000 MHz tuning range (center frequency)
  • RX gain range: 30dB in 0.5dB steps
  • RX noise figure: 2dB @ 800 MHz, 3dB @ 2.4 GHz, 3.8 dBm @ 5.5 GHz
  • 2 years warranty

Order Information

NAT-FMC-SDR-M

FMC Module with 2 Analog Devices ADCs, 4 Rx/Tx with HPC

NAT-FMC-SDR-T

FMC Module with 2 Analog Devices ADCs, 4 Rx/Tx with HPC

Technical Documentation

NAT-FMC-SDR Data Sheet
