3U PXIe Controller with Intel Xeon E Processor and 2 Graphics Interfaces

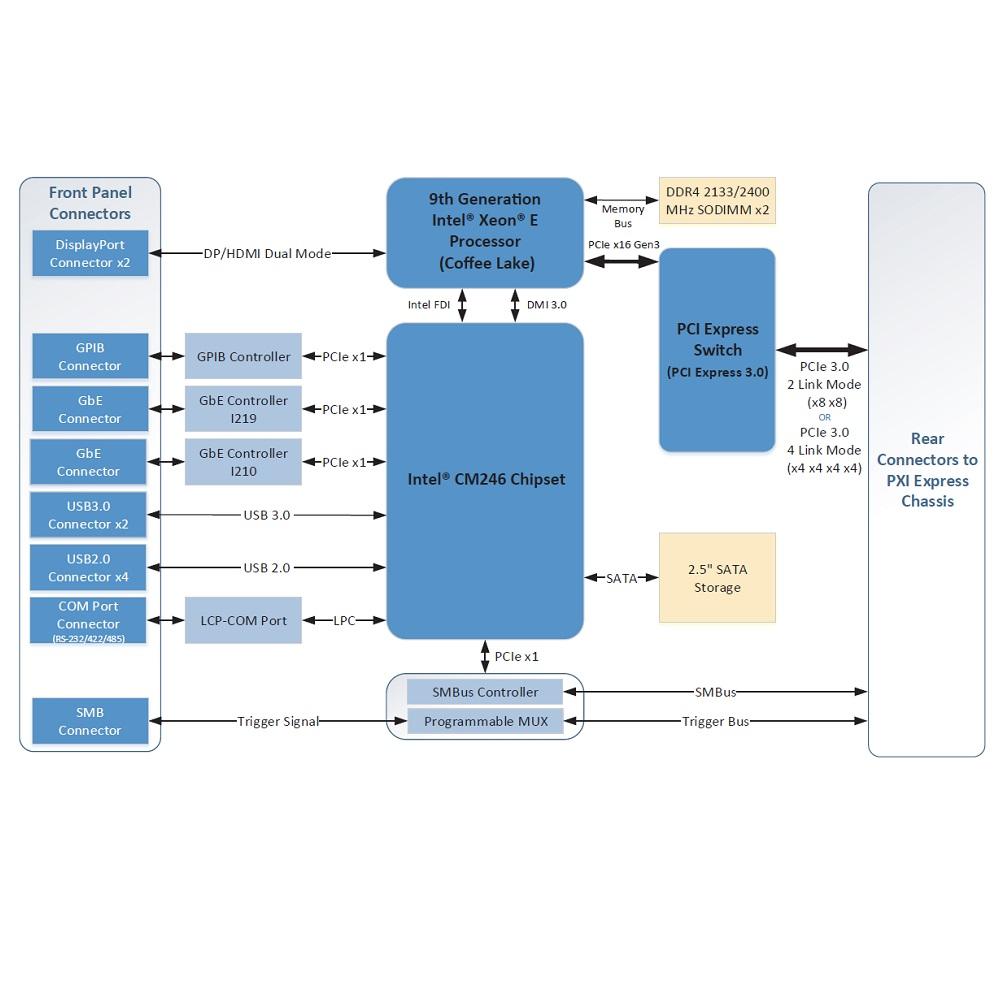

3U/4-slot PXI Express controller with a 9th generation 6-core 2.8 GHz (4.5 GHz Turbo Boost) Intel Xeon E-2276ME processor. The Intel CM246 chipset provides up to 64 GB of DDR4 memory. System bandwidth is up to 16GB/s with PCIe 3.0 and can be configured as 2-link mode with x8 x8 and 4-link mode with x4 x4 x4. ADLINK Technology's PXIe-3988 controller offers two Gigabit Ethernet front panel ports, two DisplayPorts on the front panel with up to 3840x2160 pixel resolution, one SATA 6.0 Gb/s port with a 2. 5" SSD, 2 USB 3.0 front panel ports, 4 USB 2.0 front panel ports, RS-232/422/485 DB-9 front panel port, trigger I/O with front panel SMB connector and a Micro-D 25-pin GPIB connector. One GbE port is for LAN connection and the other for LXI instrument control. The SMB port allows an external trigger signal to be routed to/from the PXI trigger bus, and the Micro-D GPIB connector for connecting GPIB instruments is for controlling hybrid PXI-based test systems.

The controller is available with 0°C to +55°C operating temperature range and Microsoft Windows 10 64-bit.


Technical Description

  • 3U/4-slot PXI Express controller
  • 6 core 2,8 GHz (4,5 GHz Turbo Boost) Intel Xeon E-2276ME processor
  • Up to 64 GB DDR4-2400 SDRAM
  • Intel CM246 chipset
  • 2 DisplayPorts on the front panel, 3840×2160 pixel resolution
  • 2 Gigabit Ethernet front panel ports
  • One SATA 6.0 Gb/s port with a 2.5″ SSD
  • 6 USB front panel ports, 2 USB 3.0 ports and 4 USB 2.0 ports
  • RS-232/422/485 DB-9 front panel port
  • Trigger I/O with SMB front panel connector
  • Micro-D 25-pin GPIB connector
  • PCIe 3.0 with 16GB/s system bandwidth, 2-Link Mode: x8 x8 and 4 Link Mode: x4 x4 x4 x4
  • 0°C … +55°C operating temperature range
  • 2 years warranty

Order Information


3U PXIe Xeon E-2276ME 2.8GHz, 16GB RAM, 512GB SSD


25-pin Micro-D zu GPIB cable, 1M


Displayport to D-DUB 15PIN (F) cable, 150mm


Displayport to DVI (F) cable, 150mm


Displayport to HDMI (F) cable, 150mm

Technical Documentation

PXIe-3988 Data sheet
