RackPak/M6-02 1U 19" 6 Slot MTCA Crate

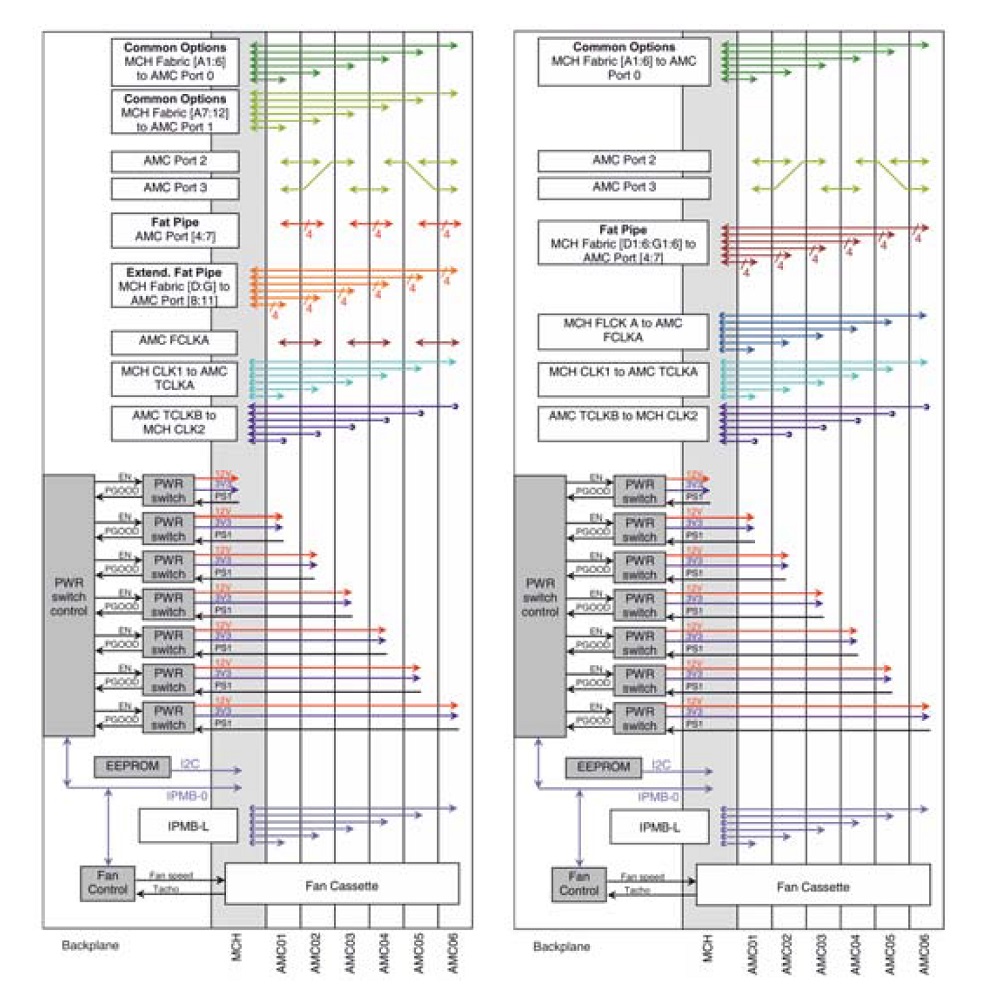

Closed 1U rack offering 6 mid-size AMC slots and one MCH slot. In addition the Crate has an integrated 400W AC power supply and power management (PM EMMC) on the backplane. The MicroTCA backplane conforms to the PICMG MTCA.0 R1.0 specification and provides data transfer rates up to 40 Gbps.

The Pentair RackPak/M6-02 MTCA crate has a hot-swap fan unit with Cooling Unit Manager (CU EMMC) and 5 fans. The fan unit can be replaced from the front. The crate is available with air flow from right to left.


Technical Description

  • 1U MTCA crate, PICMG MicroTCA.0 R1.0 compliant
  • 6 mid-size AMC slots
  • MCH slot
  • Hot swap fan unit with cooling unit manager (CU EMMC) and 5 fans
  • Fan unit exchangeable from the front
  • Integrated 150W AC power supply with wide range AC input and 12V DC output
  • Right to left air flow

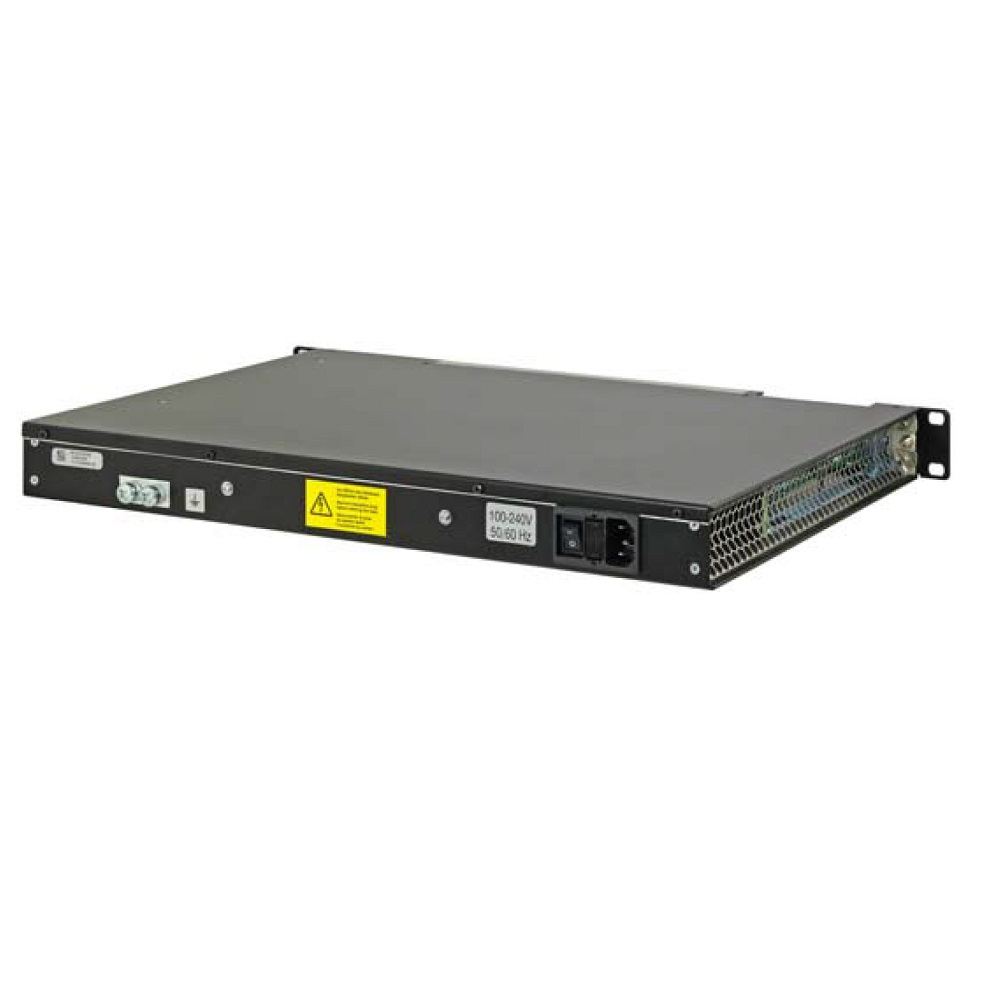

  • AC input (100 … 240 VAC) on the back of the chassis,
    400W power supply, power management (PM EMMC) on the backplane
  • System depth: 301.00 mm
  • 2 years warranty

Order Information


1U 6-Slot MTCA crate, cooling unit, right to left air flow

AM F54/371

Processor AMC module, Quad Core 2.8 GHz Intel Xeon E3-1505M, 16 GB RAM, mid size

Technical Documentation

RackPak/M6-02 Data Sheet
