TAMC260 EOL

TAMC260 AMC Carrier Board with one PMC Slot

AMC carrier board with one PMC module. The double full size TEWS TAMC260 allows to extend AdvancedTCA and MicroTCA systems with standard I/O functions. The board can use in industry applications although the needed I/O functions doesn't exit as AMC module.

Access to all PMC I/O lines is provided by 68 pin SCSI-V type connector mounted in the front panel or on P14.

A big variety of analogue I/O, digital I/O, field bus, motor controller and serial ports PMC modules is available in our product line.

The product is end of life on 30.11.2024. If you have any questions, please contact us.

ORDER NOW

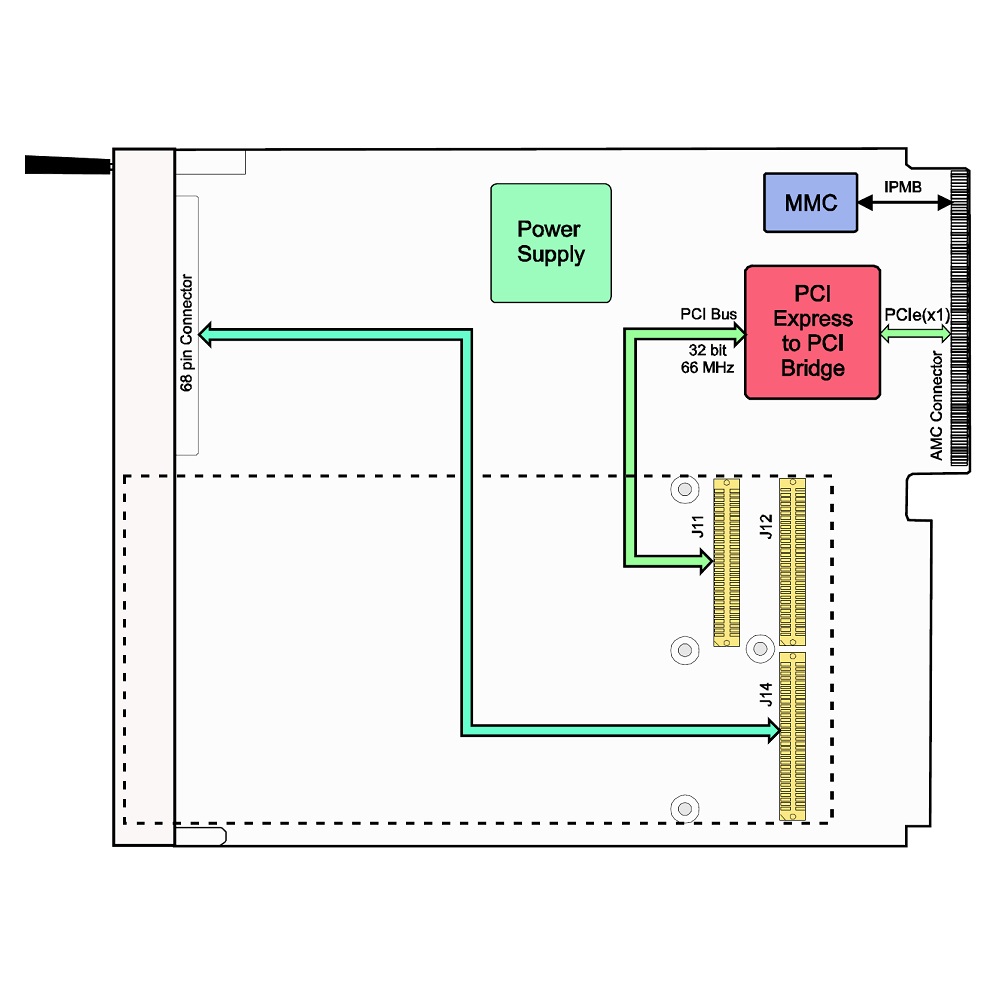

Technical Description

proimg1
  • AMC carrier board for 1 PMC module, PCI 3.0 compliant, 5V and 3.3V signalling voltage
  • AMC module with AMC.1 type 1 interface, double full size form factor
  • 32bit 66MHz PMC slot for IEEE 1386.1 compliant modules
  • P14 rear I/O via 68-pol. SCSI-V connector
  • IPMI interface
  • -40°C .. +85°C operating temperature range
  • 5 years warranty

Order Information

TAMC260-10R

AMC carrier for 1 PMC module, 5V, full size

TAMC260-11R

AMC carrier for 1 PMC module, 3.3V, full size

TAMC260-20R

AMC carrier for 1 PMC module, 5V, mid size

TAMC260-21R

AMC carrier for 1 PMC module, 3.3V, mid size

Technical Documentation

TAMC260 data sheet

TAMC260 user manual
