TAMC863

TAMC863 4 Channel high-speed syn. Serial Interface

The TEWS TAMC863 is an AMC module with four high speed serial data communication channels.

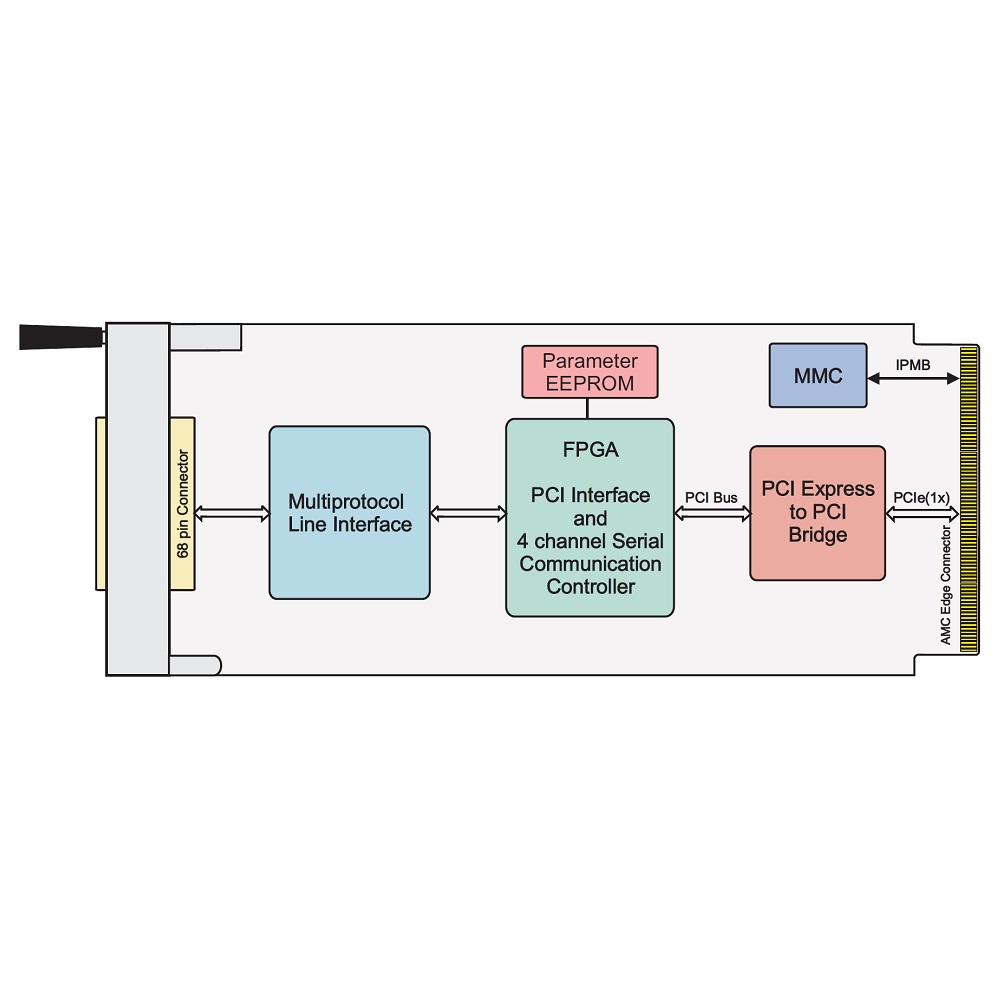

The serial communication controller is implemented in FPGA logic, along with the bus master capable PCI interface, guaranteeing long term availability and having the option to implement additional functions in the future. Several interrupt sources can generate interrupts on INTA for each channel. Interrupts can be enabled and disabled separately. A 14.7456 MHz oscillator provides standard asynchronous baud rates. An additional 24 MHz oscillator is provided for other baud rates. A 10 MHz oscillator is used for the synchronous baud rate of 10 Mbit/s.

Each channel supports various serial communication protocols such as HDLC, asynchronous, isochronous, synchronous. Multiprotocol transceivers are used for the line interfaces. The physical interface can be selected by software individually for each channel as EIA-232, EIA-422, EIA-449, EIA-530, EIA-530A, V.35, V.36 or X.21.

The TAMC863 supports RxD+/-, TxD+/-, RxC+/-, TxC+/-, RTS+/-, CTS+/- and CD+/- lines for each channel. Additionally channel 3 provides DSR3+/- and DTR3+/- signals, both over front I/O only. The FPGA controller contains a receive and transmit FIFO of 512 long words (32 bit) per channel.

The TAMC863 provides front panel I/O via a HD-68 SCSI-3 type connector.

A wide range of drivers is available: Linux, LynxOS, QNX, VxWorks and Windows. All drivers - except the Windows drivers - are supplied as C source code.

ORDER NOW

TECHNISCHE BESCHREIBUNG

proimg1
  • 4 channel serial Interface
  • AMC module with AMC.1 type 1, mid size form factor, opt. full size
  • 4 port EIA-232, EIA-422, EIA-449, EIA-530, EIA-530A, V.35, V.36, X.21 controller, interface is  software selectable per channel
  • Front panel I/O via HD-68 socket
  • Supported are HDLC, asynchronous, isochronous and synchronous protocols
  • FPGA controller
  • 512 32-bit word FIFO per channel
  • Transfer rates up to 10 Mbit/s synchronous, 2 Mbit/s asynchronous and 115.2 Kbit/s with EIA-232
  • 4 KV ESD protection
  • -40°C .. +85°C operating temperature range
  • Linux, LynxOS, QNX, VxWorks, and Windows drivers are available
  • 5 years warranty

Bestellbezeichnungen

TAMC863-10R

4 port serial high-speed interface, mid size

TAMC863-11R

4 port serial high-speed interface, full size
