TPCE277

TPCE277 PCIe x1 Gen3 XMC Carrier

PCIe x1 Gen3 carrier provides a XMC site with front panel I/O. The TPCE277 board allows the use of XMC modules in PCIe based calculators - e.g. in systems for applications like process control, medical systems, telecommunication and traffic control.

The TPCE277 is available in two different VPWR (voltage power) versions. The TPCE277-x0R versions provide 12V VPWR and the TPCE277-x1R have 5V VPWR.

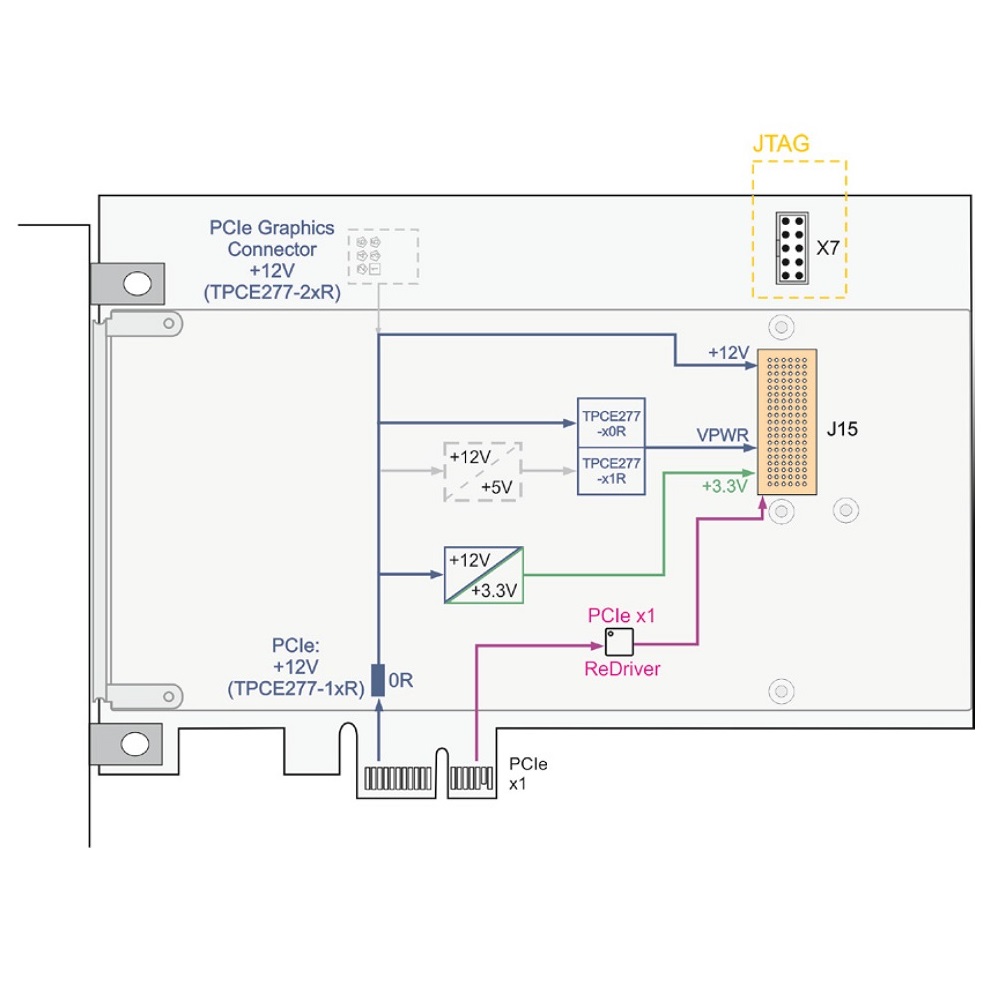

The TPCE277-1xR uses the +12V of the PCIe edge card connector to generate all power supply voltages (+3,3V, VPWR, +12V) for the XMC slot. According to the PCIe specification, a PCIe x4 card is limited to 6W on the +12V.

The TPCE277-2x offer a PCIe graphics power connector for increased power requirements to supply the +12V for generating all the power supply voltages for the XMC slot providing power of up to 25W.

ORDER NOW

TECHNISCHE BESCHREIBUNG

proimg1
  • PCIe board, PCIe x1 Rev. 3.0 interface
  • One XMC site with FP I/O
  • 5V or 12V VPWR
  • All XMC Power Supplies generated from +12V:
    TPCE277-1xR from PCIe edge card connector
    TPCE277-2xR from PCIe graphics power connector
  • -40°C .. +85°C operating temperature range
  • 5 years warranty

Bestellbezeichnungen

TPCE277-10R

1 Slot XMC carrier, PCIe x1, VPWR: 12V, 12V from PCIe connector

TPCE277-11R

1 Slot XMC carrier, PCIe x1, VPWR: 5V, 12V from PCIe connector

TPCE277-20R

1 Slot XMC carrier, PCIe x1, VPWR: 12V, 12V from PCIe graphics power connector

TPCE277-21R

1 Slot XMC carrier, PCIe x1, VPWR: 5V, 12V from PCIe graphics power connector
