TPMC321 Conduction Cooled 64 Digital TTL I/O or 32 Differential I/O

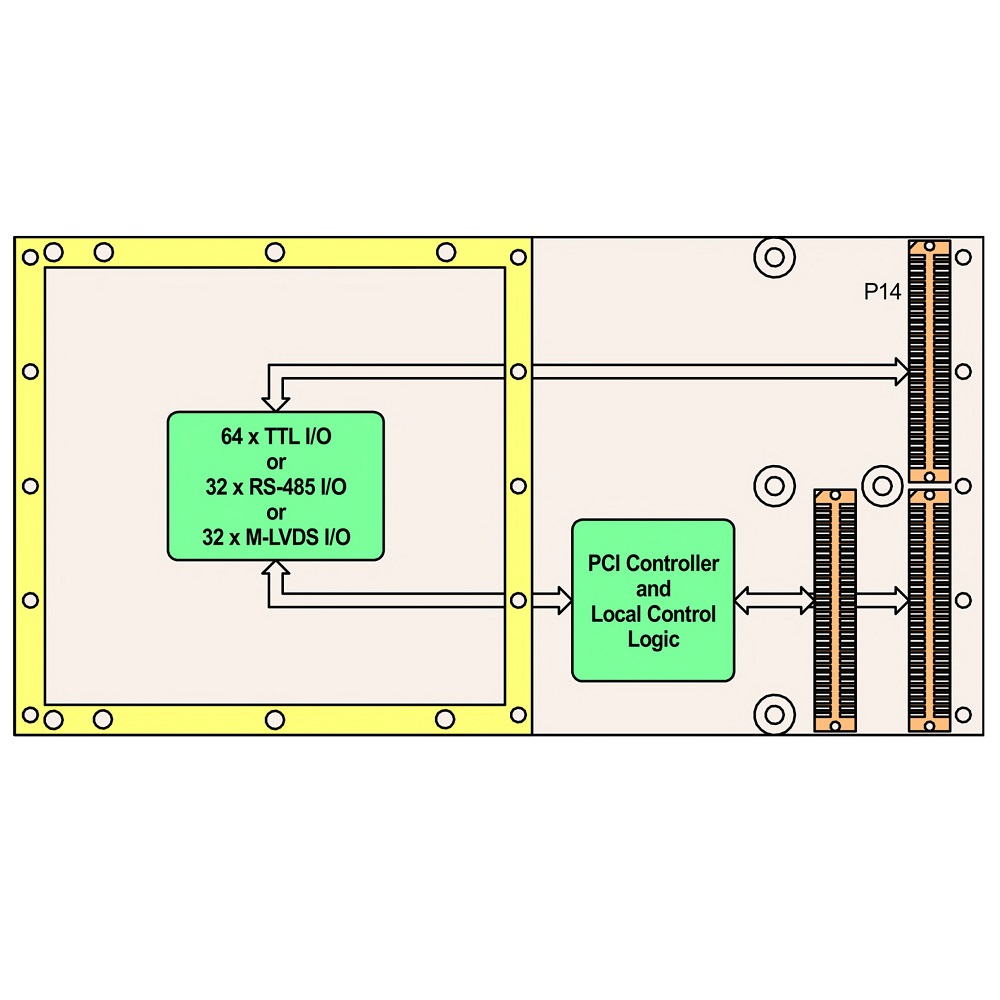

Conduction cooled PMC module offer 64 Digital TTL I/O or 32 Differential I/O. The TPMC321-10R has 64 ESD-protected 5V-tolerant TTL lines, the TPMC321-11R provides 32 differential I/O lines using EIA-422 / EIA-485 compatible, ESD-protected line transceivers. The TPMC321-12R provides 32 differential I/O lines using M-LVDS line transceivers.

All lines are individually programmable as input, output or tri-state. The receivers are always enabled, which allows determining the state of each I/O line at any time. Each TTL I/O line has a pull-up resistor. The pull-up voltage is selectable to be either +3.3V or +5V. The differential I/O lines are terminated by 120Ω resistors.

All input lines can generate an interrupt. The signal edge handling is programmable to interrupt on rising, falling or both edges of the input signal. Interrupts can be enabled and disabled for each bit. For interrupt source detection, the status of each line can be read from interrupt status registers.

The TPMC321 provides rear I/O via P14.

A wide range of drivers is available: Linux, QNX, VxWorks and Windows. All drivers - except the Windows drivers - are supplied as C source code.


Technical Description

  • PMC module, 32 bit/33MHz PCI interface, IEEE P1386.1 compliant, PCI 3.0 compliant, 3.3V and 5V Vio
  • I/O lines: 64 TTL I/O (-10R), 32 differential I/O EIA-422 / EIA-485 (-11R) or 32 differential I/O M-LVDS (-12R), direction individually programmable
  • P14 I/O
  • ESD and overvoltage protection for each TTL I/O line
  • ESD protected EIA-485 and M-LVDS transceiver
  • -40°C .. +85°C operating temperature range
  • Integrity, Windows, Linux, QNX, and VxWorks drivers available
  • 5 years warranty

Order Information


64bit TTL I/O, conduction-cooled


32bit EIA-422 / EIA-485 I/O, conduction-cooled


32bit M-LVDS I/O, conduction-cooled


PIM module with 68 pin SCSI-3 type connector


Integrity driver


VxWorks driver


Windows driver


Linux driver


QNX driver

Technical Documentation

TPMC321 data sheet

TPMC321 user manual

TPIM003 data sheet

TPIM003 user manual

Integrity driver user manual

VxWorks driver user manual

Windows driver user manual

Linux driver user manual

QNX driver user manual
