TPMC554

TPMC554 16/32 Channel 16 Bit DA Converter with SRAM

32 16 bit analogue output channels. A 16 channel version is also available. The output voltage range is 0-5V, 0-10V, 0-10.8V, +/-5V, +/-10V or +/-10.8V and can be individually set per channel. The conversion time is typ. 10 µs and the DAC outputs are capable to drive a load of 2 KΩ, with a capacitance up to 4000 pF. A sequencer allows periodic updates of enabled channels with a sequence time range that extends from 10 µs to 11.93 h.

In addition to the double buffered distributed RAM inside the FPGA the TPMC554 provides 2 M x 16bit external SRAM to store values that are known in advance. This feature can also be used to periodically output any kind of waveform or bit pattern. The size of the FIFO for each DAC channel is adjustable.

The DA converter are available with front panel IO. The TPMC554 PMC module is factory calibrated. The calibration data is stored in the Identification-PROM.

A wide range of drivers is available: Linux, QNX, VxWorks and Windows. All drivers - except the Windows drivers - are supplied as C source code.

ORDER NOW

TECHNISCHE BESCHREIBUNG

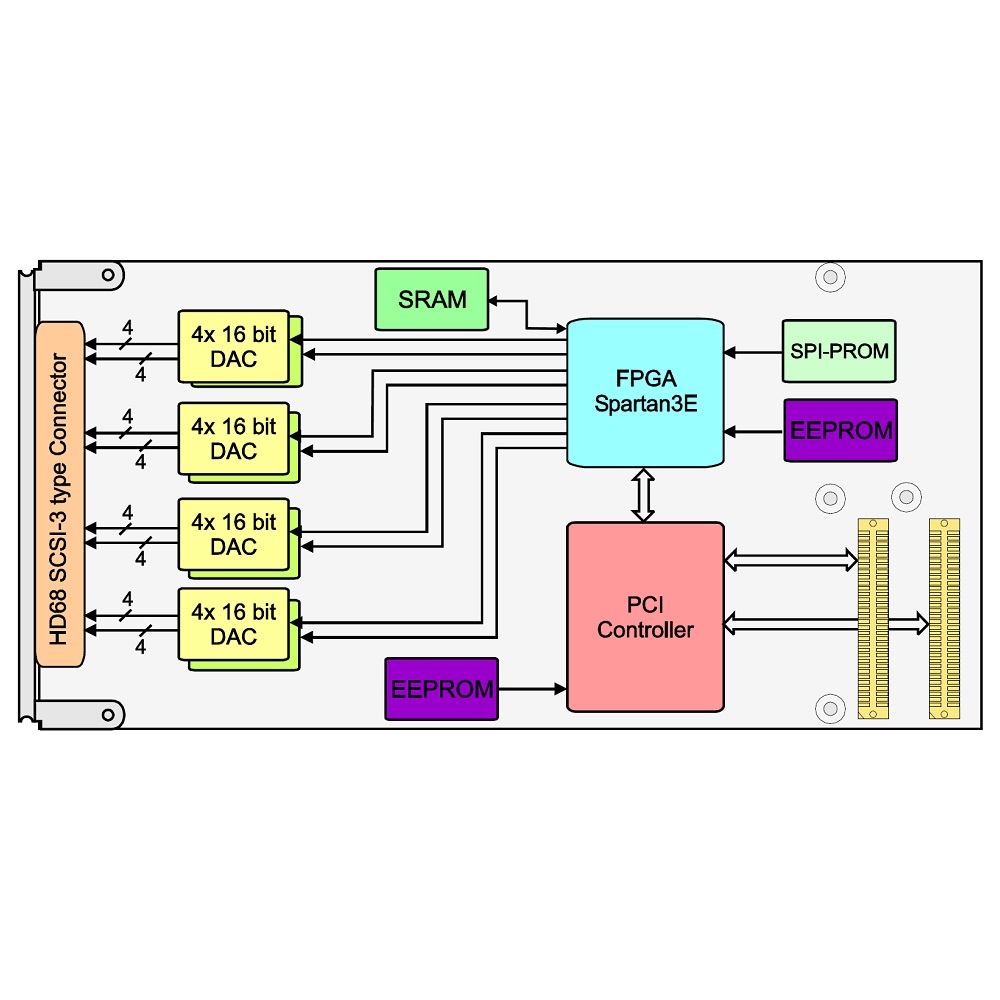

proimg1
  • PMC module, 32 bit/33MHz PCI interface, IEEE P1386.1 compliant, PCI 2.1 compliant, 3.3/5 Vio
  • 16 or 32 channel 16 bit DA converter
  • 0..5V, 0..10V, 0..10.8V, ±5V, ±10V or ±10.8V output voltage range, programmable in groups of 4 channels
  • 2 M x 16bit SRAM
  • HD-68 SCSI-3 front panel I/O
  • Overcurrent protection
  • 10 µs conversion time
  • Factory calibrated, calibration data in EEPROM
  • Progr. sequence timer, 10 µs to 11.93 h
  • -40°C .. +85°C operating temperature range
  • Windows, Linux, QNX, Integrity, and VxWorks drivers are available
  • 5 years warranty

Bestellbezeichnungen

TPMC554-10R

32 port 16 bit DAC, insulated, FP I/O

TPMC554-11R

16 port 16 bit DAC, insulated, FP I/O

TPIM002-10R

PIM module with 68 pin SCSI-3 type connector

TA304-10R

Connection kit 1.8m cable with HD-68 connectors and 68 pin terminal block with HD-68 connector

TDRV016-SW-25

Integrity driver

TDRV016-SW-42

VxWorks driver

TDRV016-SW-65

Windows WDM driver

TDRV016-SW-82

LINUX driver

TDRV016-SW-95

QNX 6 driver

TECHNISCHE DOKUMENTATION

TPMC554 data sheet

TPMC554 user manual

TPIM002 data sheet

TPIM002 user manual

VxWorks driver user manual

Windows WDM driver user manual

LINUX driver user manual
