TPMC821 EOL

TPMC821 INTERBUS Master Interface

Complete PMC INTERBUS Master Generation 4 (G4) Interface. A MC68332 local controller and the IPMS3 INTERBUS protocol controller are used as controlling units on board of the TPMC821 PMC module. The communication between the host CPU and the TPMC821 is handled via a 4 Kb dual port memory. The on board firmware running on the MC68332 is the original INTERBUS Master Generation 4 (G4) firmware from Phoenix Contact. Furthermore the TPMC821 provides a RS232 diagnostic port, the optically isolated INTERBUS interface and status LEDs.

A wide range of drivers is available: Linux, Integrity, QNX, VxWorks and Windows. All drivers - except the Windows drivers - are supplied as C source code.

The product is end of life on 30.11.2024. If you have any questions, please contact us.

ORDER NOW

Technical Description

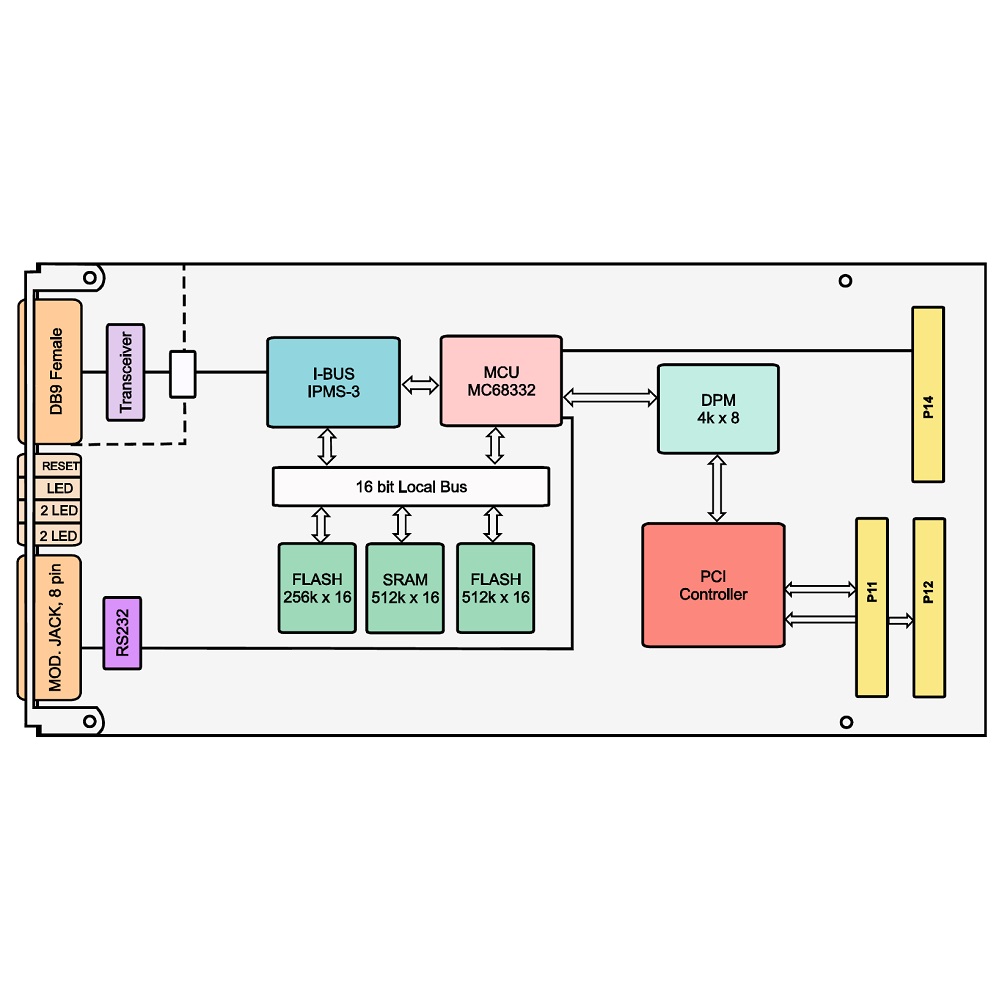

proimg1
  • PMC module, 32 bit/33 MHz PCI interface, IEEE P1386.1 compliant, PCI 2.1 compliant
  • 4th generation INTERBUS master interface
  • Motorola MC68332 CPU and Phoenix IPMS3 controller with Phoenix V4.40 firmware
  • 4 KB dual port memory, 1 MB SRAM and 1 MB flash
  • INTERBUS interface on a DB9 connector in the front panel, optically isolated
  • Diagnostic port on the front panel and on P14
  • Asynchronous, bus-synchronous and program-synchronous operation
  • 4.096 I/O points on max. 512 I/O modules
  • 384 KB PCP memory, max. 62 PCP modules, non volatile parameter memory
  • Linux, Integrity, QNX, VxWorks, and Windows drivers are available
  • 0°C .. 70°C operating temperature range
  • 5 years warranty

Order Information

TPMC821-10R

INTERBUS G4 master interface

TPMC821-SW-25

Integrity driver

TPMC821-SW-42

VxWorks driver

TPMC821-SW-65

Windows WDM driver

TPMC821-SW-82

LINUX driver

TPMC821-SW-95

QNX 6 driver

Technical Documentation

TPMC821 data sheet

TPMC821 user manual

VxWorks driver user manual

Windows WDM driver user manual

LINUX driver user manual
