TR H4x/3sd-RCx

TR H4x/3sd-RCx Conduction-cooled 3U VPX CPU Board with Intel Xeon D-1500 Processor, up to 64 GB RAM and 40Gigabit Ethernet

3U VPX CPU board with a 12-Core 1.5 GHz Intel Xeon D-1559 or a 8-Core 1.6 GHz Intel Xeon D-1539 processor. Up to 64 GB DDR4 ECC SDRAM are soldered on the board.

The CONCURRENT Technologies TR H4x/3sd-RCx offers up to two 10Gigabit Ethernet Ports, two RS-232 maintenance ports and one PCIe x8 or two PCIe x4 ports via P1. In addition opt. one 40Gigabit Ethernet Port, one USB 2.0 port, 7 GPIO ports and one VGA port with 1920x1080 resolution are available. Two M.2 SSDs via an opt. I/O module can be mounted on the TR H4x/3sd-RCx. The M.2 SSD sites are connected via PCIe x2 interface to the CPU and they are NVMe 1.2 compliant. The front panel offers opt. one VGA and one USB port for ease setup.

The board supports Microsoft Windows and Linux. Other OS are on request.

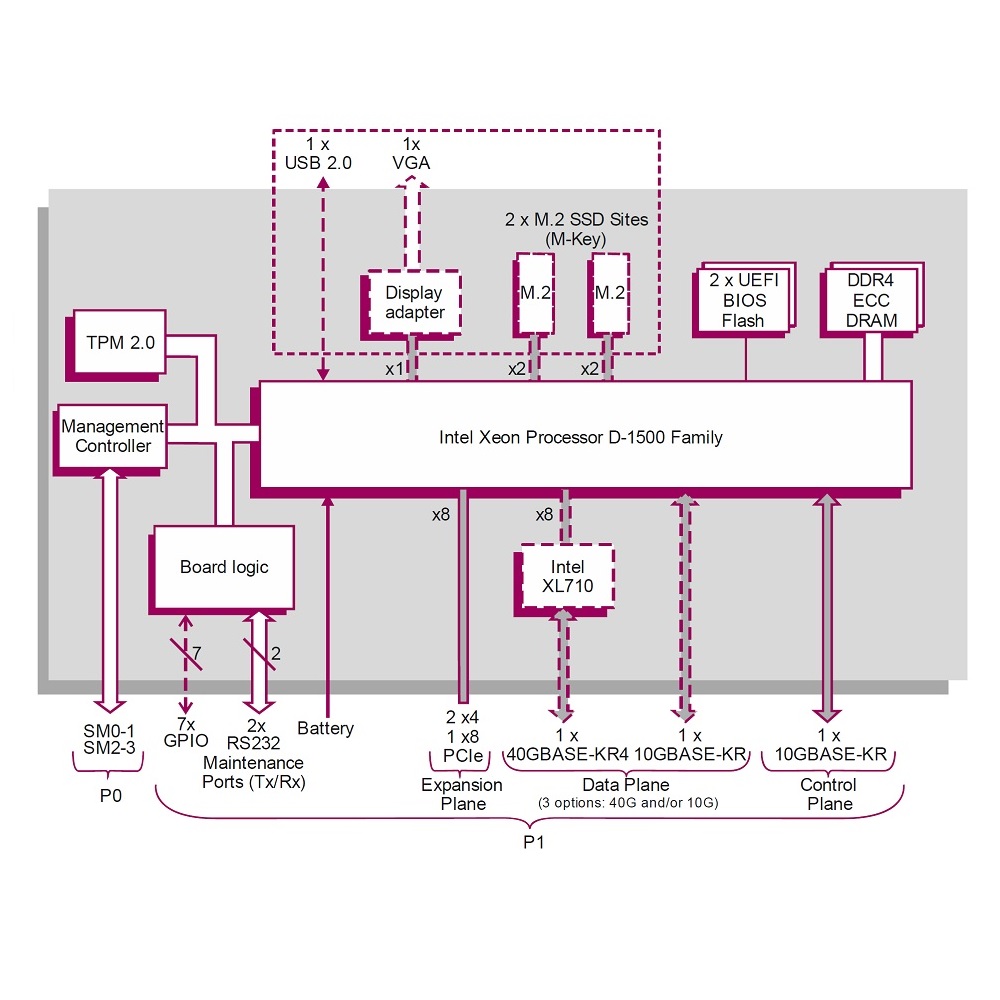

Technical Description

  • 3U/4HP VPX CPU board, VITA 46.0, VITA 46.11, VITA 47, VITA 48.0, VITA 48.2, VITA 65.0, VITA 65.1, and OpenVPX compliant
  • SLT3-PAY-1F1U1S1S1U1U2F1HJ-14.6.11-0,
    MOD3p-PAY-1F1U1S1S1U1U2F1H-16.6.11-4 Module profile
  • 12-Core 1.5 GHz Intel Xeon D-1559 CPU, 18MB cache,
    8-Core 1.6 GHz Intel Xeon D-1539 CPU, 12MB cache
  • Intel Advanced Vector Extensions 2
  • Up to 64 GB ECC DDR4 RAM, soldered
  • Dual 16 MB BIOS flash
  • Opt. VGA port (1920×1080 resolution) via 16-way I/O connector
  • Opt. two M.2 SSD sites: 2242 format modules are supported, PCIe x2 interface, NVMe 1.2 compliant
  • Up to two 10Gigabit Ethernet 10GBase-KR ports via P1: one port on the control plane and opt. one port on the data plane
  • Opt. one 40Gigabit Ethernet 40GBASE-KR4 port via P1 on the data plane, Intel XL710-BM1 via PCIe x8 Gen 3 port
  • Two RS-232 (Tx/Rx) maintenance ports via P1
  • Opt. 1 USB 2.0 port via 16-way I/O connector
  • Opt. 7 GPIO ports via P1
  • One PCIe x8 or two PCIe x4 ports via P1 on the expansion plane with Gen 1, Gen2 and Gen3 support
  • Opt. VGA and USB front panel port
  • 4 channel DMA engine for fast data block moves
  • Dual UEFI 2.4 BIOS with Secure Boot, LAN Boot Firmware
  • Real Time clock and watchdog timer
  • System management with CPU temperature and voltage monitor and IPMC onboard controller via SM0-1 and SM2-3
  • Opt. Trusted Platform Module (TPM 2.0) and opt. Build-In Test (BIT)
  • Conduction-cooled, -40°C .. +85°C operating temperature range
  • 2 years warranty

Order Information


3U/4HP CPU board, 12-Core Xeon D-1559, -40 .. +85°C


3U/4HP CPU board, 8-Core Xeon D-1539, -40 .. +85°C





AD 261/401-12RC

M.2 flash carrier with 512GB M.2

AD 261/401-43RC

M.2 flash carrier with 1TB M.2, Opal 2.0 AES-256

AD 261/401-44RC

M.2 flash carrier with 1TB M.2, AES-256, write protect

AD 261/401-53RC

M.2 flash carrier with 2TB M.2, Opal 2.0 AES-256

AD 261/401-54RC

M.2 flash carrier with 2TB M.2, AES-256, write protect

CB 16D/122-00

16 pol. HD to 1x VGA, 1x USB cable

KT BKT/010-00

Spare M.2 device retainer

Technical Documentation

TR H4x/3sd-RCx Data Sheet
