TR J4x/6sd-RCx

TR J4x/6sd-RCx Conduction-cooled 3U VPX CPU Board with Intel Xeon D-1500 Processor, up to 64 GB RAM and 40Gigabit Ethernet

3U VPX CPU board with a 12-Core 1.5 GHz Intel Xeon D-1559 processor. Up to 64 GB DDR4 ECC SDRAM are soldered on the board.

The CONCURRENT Technologies TR J4x/6sd-RCx offers up to six 10Gigabit Ethernet Ports, two RS-232 maintenance ports and one PCIe x8 or two PCIe x4 ports via P1. In addition opt. one 40Gigabit Ethernet Port, one USB 2.0 port, 7 GPIO ports and one VGA port with 1920x1080 resolution are available. Two M.2 flash sites via an opt. I/O module can be used on the TR J4x/6sd-RCx. The M.2 flash sites are connected via PCIe x2 interface to the CPU and they are NVMe 1.2 compliant. The front panel offers opt. one VGA and one USB port for ease setup.

The board supports Microsoft Windows and Linux. Other OS are on request.

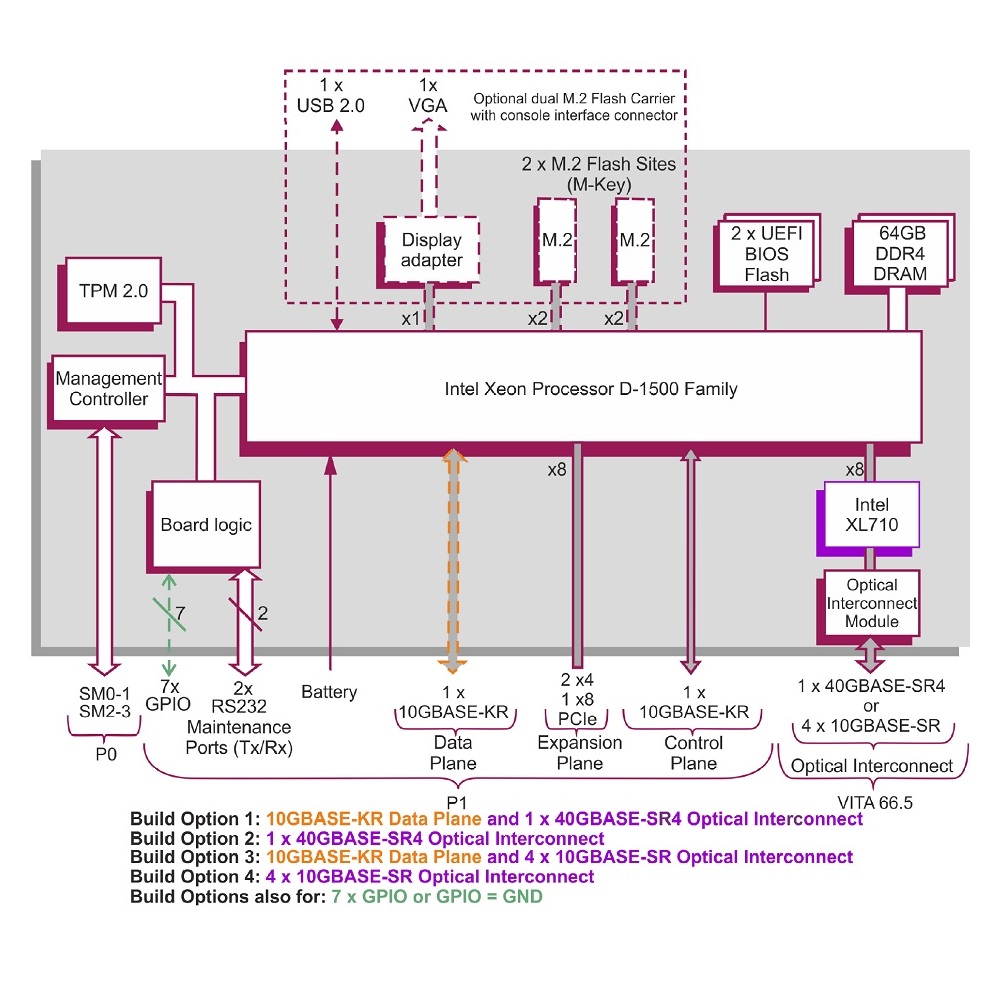

Technical Description

  • 3U/4HP VPX CPU board, VITA 46.0, VITA 46.11, VITA 47, VITA 48.0, VITA 48.2, VITA 65, VITA 66.5, and OpenVPX compliant
  • SLT3-PAY-1F1U1S1S1U1U2F1HJ-14.6.11-0,
    MOD3p-PAY-1F1U1S1S1U1U2F1H-16.6.11-4 Module Profile
  • 12-Core 1.5 GHz Intel Xeon D-1559 CPU, 18MB Cache
  • Intel Advanced Vector Extensions 2
  • Up to 64 GB ECC DDR4 RAM, soldered
  • Dual 16 MB BIOS flash
  • Opt. VGA port (1920×1080 resolution) via 16-way I/O connecto
  • Opt. two M.2 flash sites: 2242 format modules are supported, PCIe x2 interface, NVMe 1.2 compliant
  • Up to six 10Gigabit Ethernet ports: one 10GBase-KR port via P1 on the control plane, opt. one 10GBase-KR port via P1 on the data plane and opt. 4 10GBase-SR VITA 66.5 ports
  • Opt. one 40Gigabit Ethernet 40GBASE-SR4 VITA 66.5 port, Intel XL710-BM1 via PCIe x8 Gen 3 port
  • Two RS-232 (Tx/Rx) maintenance ports via P1
  • Opt. 1 USB 2.0 port via 16-way I/O connector
  • Opt. 7 GPIO ports via P1
  • One PCIe x8 or two PCIe x4 ports via P1 on the expansion plane with Gen1, Gen2 and Gen3 support
  • Opt. VGA and USB front panel port
  • 4 channel DMA engine for fast data block moves
  • Dual UEFI 2.4 BIOS with Secure Boot, LAN Boot Firmware
  • Real Time clock and watchdog timer
  • System management with CPU temperature and voltage monitor and IPMC onboard controller via SM0-1 and SM2-3
  • Trusted Platform Module (TPM 2.0) and opt. Build-In Test (BIT)
  • Conduction-cooled, -40°C .. +85°C operating temperature range
  • 2 years warranty

Order Information


3U/4HP CPU board, 12-Core Xeon D-1559, -40 .. +85°C





Technical Documentation

TR J4x/6sd-RCx Data Sheet
