TR MAx/6sd-RCx

3U conduction cooled VPX CPU Board with Intel Ice Lake-D Processor, up to 128 GB RAM and 100GbE

3U conduction cooled VPX CPU board with a 10-core Intel® Ice Lake-D or a 4-core Intel® Ice Lake-D processor. The board has up to 128 GB of soldered DDR4 ECC SDRAM, Intel® Vector Neuro Network Instructions (VNNI), Intel® Vector Byte Manipulation Instructions (VBMI) and Intel® Advanced Vector Extensions AVX-512.

The CONCURRENT Technologies TR MAx/6sd-RCx offers one 100GbE port, four 25GbE and up to six 10GbE ports. In addition, up to seven GPIO ports, two RS232 or LVCMOS maintenance ports, one PCIe x16 port, one PCIe x8 or one PCIe x8 port and two PCIe x4 or two PCIe x4 ports are available. Opt. a M.2 SSD and a front I/O module can be mounted. The front I/O module has one VGA port with 1920×1080 pixel resolution and a USB 2.0 port.

The board is aligned with the SOSA (Sensor Open Systems Architecture) technical standard. The SOSA (Sensor Open Systems Architecture) consortium is a voluntary, consensus-based membership consortium of the Open Group, a vendor-neutral technology standards organization that develops an open technical standard for sensors.

The board is supported by Microsoft Windows and Linux.

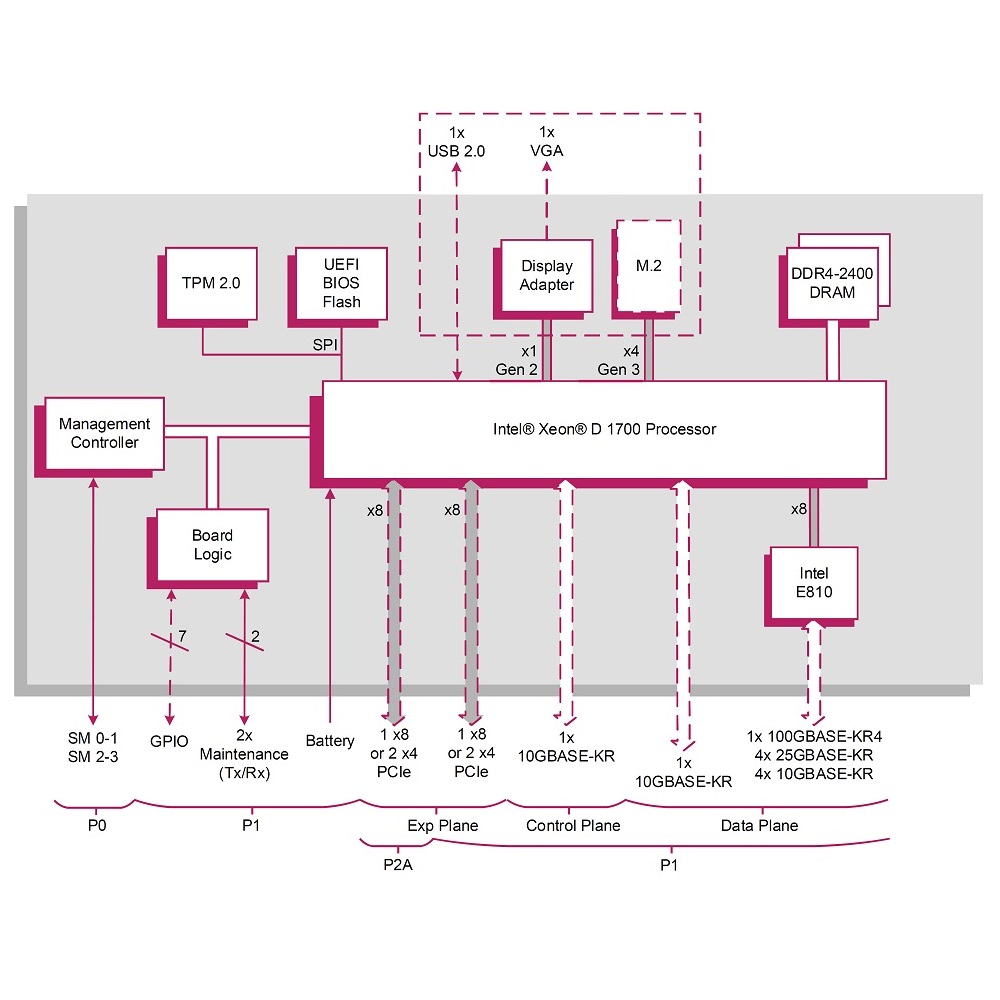

Technical Description

  • 3U/4HP VPX board, VITA 46.0, VITA 46.4, VITA 46.6, VITA 46.7, VITA 46.11, VITA 47.1, VITA 48.0, VITA 48.2 and OpenVPX compliant
  • SLT3-PAY-1F1U1S1S1U1U2F1H-14-6.11-0 slot profile,
    MOD3p-PAY-1F1U1S1S1U1U2F1H-16-6.11-4 module profile and
    SLT3-PAY-1F1U1S1S1U1U4F1J-14.6.13-n slot profile,
    MOD3p-PAY-1F1U1S1S1U1U4F1J-16.6.13-1 module profile
  • 10-core Intel Ice Lake-D CPU, 15MB cache
    4-core Intel Ice Lake-D CPU, 6MB cache
  • Intel® Advanced Vector Extensions AVX-512,
    Intel® Vector Neuro Network Instructions (VNNI) and
    Intel® Vector Byte Manipulation Instructions (VBMI)
  • Up to 128 GB ECC DDR4 SDRAM, soldered
  • 32 MB BIOS SPI Flash EPROMs
  • Opt. VGA via front I/O board, 1920×1080 resolution
  • One 100GbE 100GBase-KR4 port,
    four 25GbE 25GBase-KR ports,
    up to six 10GbE 10GBase-KR ports,
  • Opt. one M.2 SSD slot: 2242 module formats supported, PCIe x4 interface, NVMe logical device interface, NVMe 1.3 compatible, write protection and Opal 2.0 security support
  • 2 RS-232 or LVCMOS maintenance ports on P1
  • Opt. one USB 2.0 port via front I/O board
  • Up to seven GPIO ports on P1
  • One PCIe x16 port via P1 and P2A,
    one PCIe x8 via P1 or one PCIe x8 via P2A,
    two PCIe x4 over P1 or two PCIe x4 via P2A on expansion plane with Gen4 support
  • UEFI 2.7 BIOS with Secure Boot, LAN Boot Firmware, Intel Boot Guard, opt. fast boot solution with the Intel Slim Bootloader
  • Real-time clock and watchdog timer
  • System management with CPU temperature and voltage monitoring and IPMC onboard controller via SM0-1 and SM2-3
  • Trusted Platform Module (TPM 2.0) and opt. build-in test (BIT)
  • Conduction cooled, -40°C … +85°C operating temperature range
  • 2 years warranty

Order Information


3U VPX board, 10 core CPU


3U VPX board, 4 core CPU


64 Gbytes DRAM


128 Gbytes DRAM


Rear IO configuration

AD 262/001-45RC

512 GB M.2 flash module kit, -40°C .. +85°C, conduction-cooled

AD 262/001-46RC

1 TB M.2 flash module kit, -40°C .. +85°C, conduction-cooled

AD TPG/001-10

Thermal Gap Pad for M.2 module

KT BKT/010-00

M.2 device holder

AD EN1/004-20

Front IO adapter with RS232, GbE

CB 16D/122-00

16-pin high density to 1x VGA, 1x USB connection cable

Technical Documentation

TR MAx/6sd-RCx Data Sheet
