TXMC395 Conduction-Cooled Quad Gigabit Ethernet XMC Module

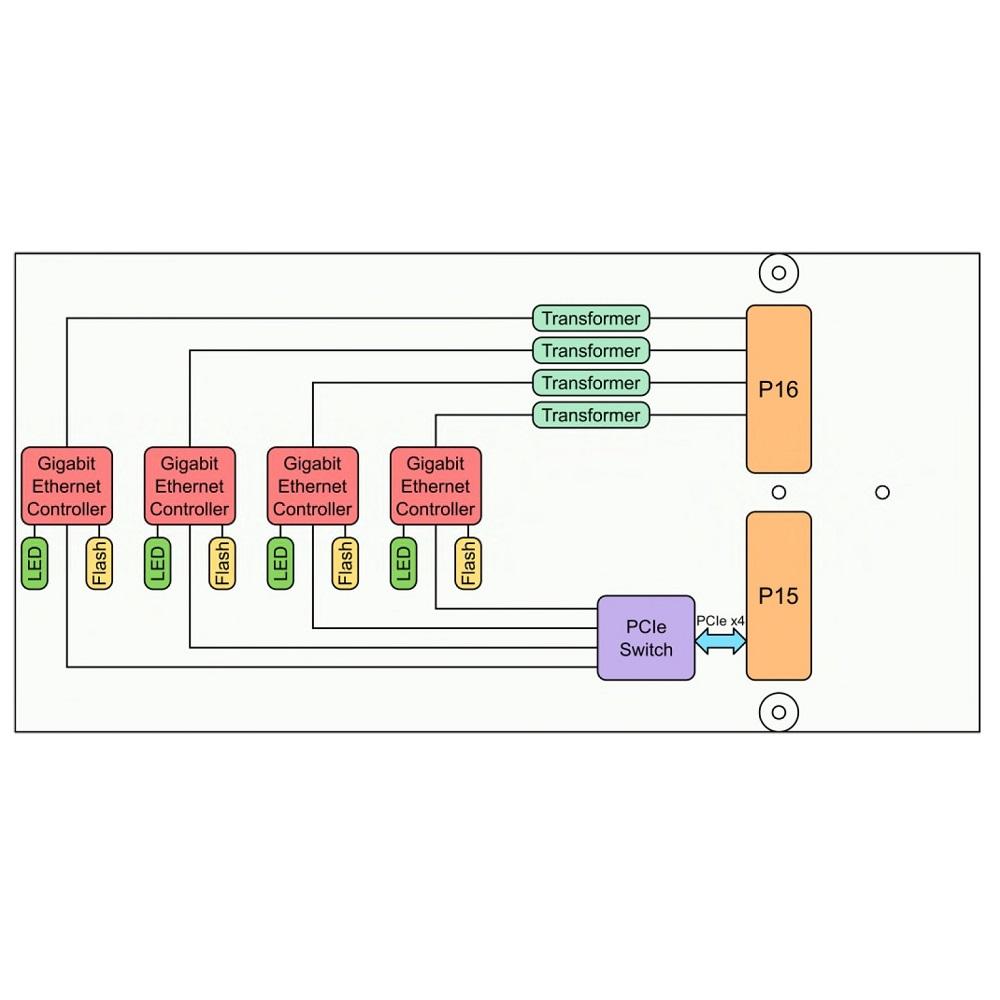

Quad channel Gigabit Ethernet 10BASE-T/100BASE-TX/1000BASE-T interface. A PCIe switch provides access to the four Intel I210IT Ethernet Controllers, which support 10, 100, and 1000 Mbit/s transmission rates are supported. Each channel of the TXMC395 is capable of performing an auto negotiation algorithm which allows both link-partners to find out the best link-parameters.

All ports are galvanically isolated from the Ethernet controllers and LEDs on the board indicate the different network activities.

The TEWS TXMC395-10R XMC module routes all four Ethernet ports to the rear I/O P16 connector. The XMC module comes without front panel. The PIM module TPIM007-10R provides RJ45 jacks for rear IO.


Technical Description

  • XMC module, PCIe 1.1 ANSI/VITA 42.0,  ANSI/VITA 42.3, ANSI/VITA 20 and VITA46.9 compliant
  • Four 10/100/1000BaseTX Ethernet ports, Intel I210IT controller
  • x4 PCIe 2.1 interface via P15
  • Auto negotiation
  • Rear I/O via P16
  • All ports galvanically isolated
  • 16 Mbit serial flash
  • IEEE 1588/802.1AS Precision Time Protocol (PTP)
  • IEEE 802.1Qav Audio/Video Bridging (AVB) traffic shaping (with software extensions)
  • Conduction-cooled, -40°C .. +85°C operating temperature range
  • 5 years warranty

Order Information


XMC Module, Quad 10/100/1000BaseT Ethernet interface with P16 I/O, conduction cooled


PIM I/O module with four RJ45 jacks for TXMC395-10R
