TXMC888 Two SFP+ 10Gigabit Ethernet Interface

XMC module providing a two channel 10Gigabit Ethernet SFP+ interface. The XMC connector P15 provides access to the Intel 82599ES dual port 10GbE controller via an PCIe x8 link. The SFP+ ports accept various SFP and SFP+ transceiver modules like SFP+ Direct Attach Twinaxial Cable, SFP+ SFPwire Active Optical Cable, SFP+ 10GBase-SR/SW / 1000Base-SX, SFP+ 10GBase-LR/LW / 1000Base-LX and SFP 1000Base-T. The controller is equipped with a 1 Mbit serial flash for Boot ROM and an 128 kbit EEPROM storing configuration data.

The product is end of life on 28.2.2025. If you have any questions, please contact us.

ORDER NOW

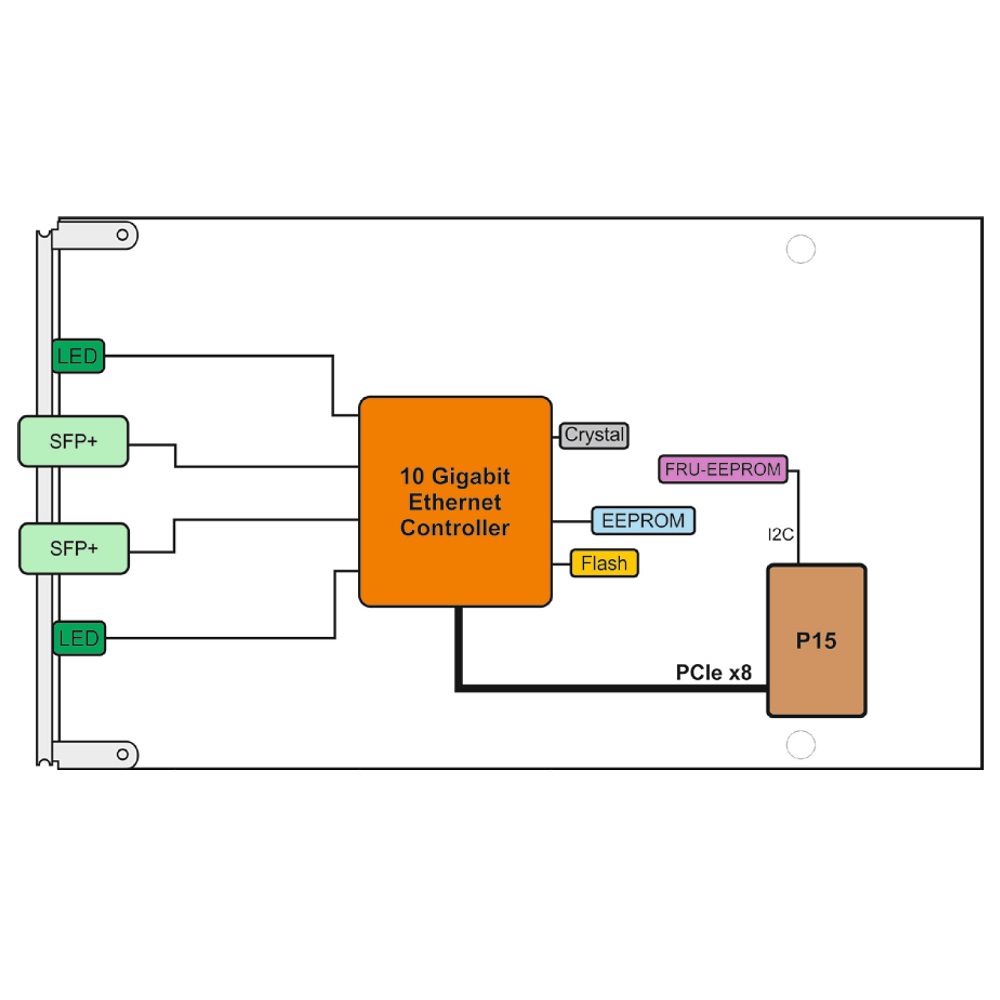

Technical Description

proimg1
  • XMC module, VITA 42.0, PCIe x8 compliant VITA 42.3
  • Two 10GbE SFP+ ports, dual Intel 82599ES controller
  • 1 Mbit flash for Boot ROM
  • 128 kbit EEPROM storing configuration data
  • IPMI resource: FRU hardware definition information stored in on-board EEPROM
  • MTBF 555.000h
  • 0°C .. +70°C operating temperature range
  • 5 years warranty

Order Information

TXMC888-10R

XMC module, two 10GbE SFP+ interface

Technical Documentation

TXMC888-DS

TXMC888 Data Sheet

TXMC888-UM

TXMC888 User Manual
