2 or 4 Port 10Gigabit Ethernet Interface

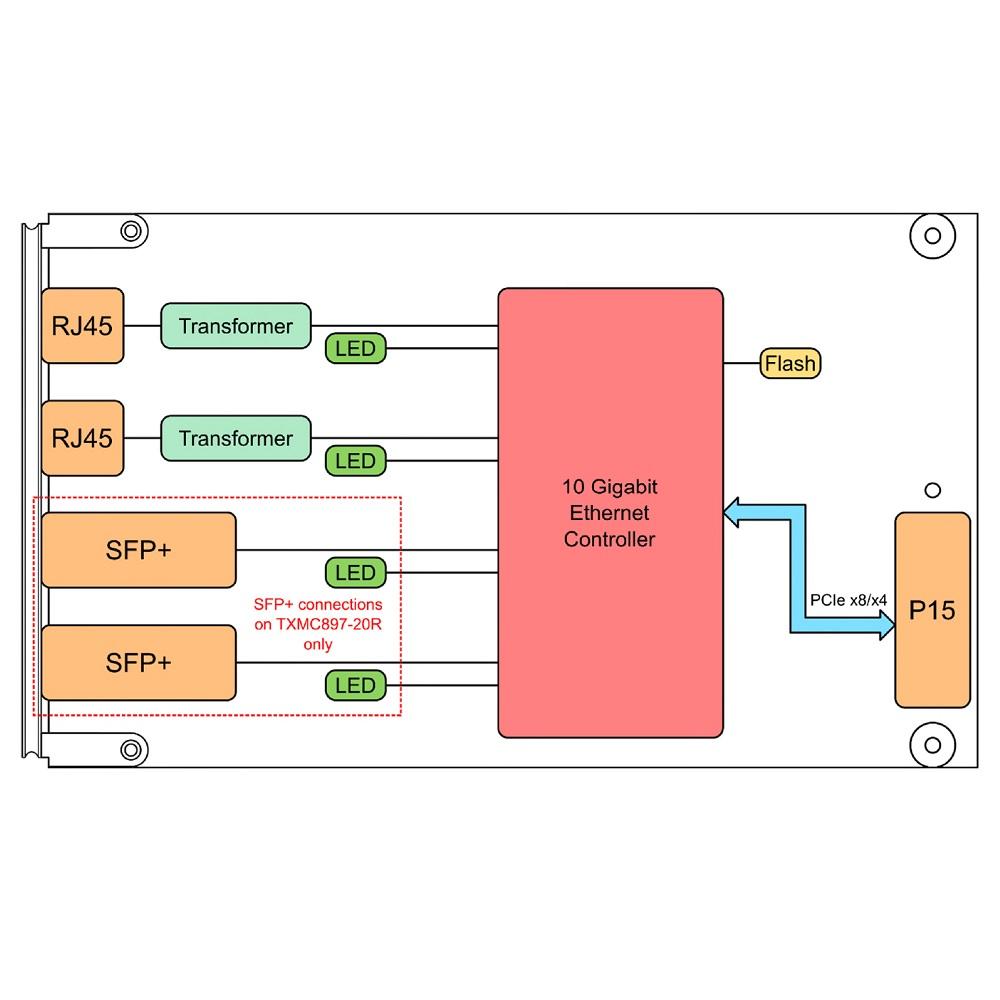

XMC module with up to four 10Gigabit Ethernet ports. The TEWS Technologies TXMC897 offers a 2-channel 100Base-TX / 1000Base-T / 2.5GBase-T / 5GBase-T / 10GBase-T Ethernet and optionally a 2-channel SFP+ 10 Gigabit Ethernet interface. The XMC connector P15 is connected to a 10 Gigabit Ethernet controller via a PCIe x8/x4 lane. The XMC module is equipped with a 64 Mbit serial flash for configuration data and memory for boot ROM.

All TXMC897 channels are capable of performing an auto-negotiation algorithm to automatically determine the best connection parameters with the remote site. The TXMC897 supports IEEE 1588/802.1AS Precision Time Protocol (PTP).

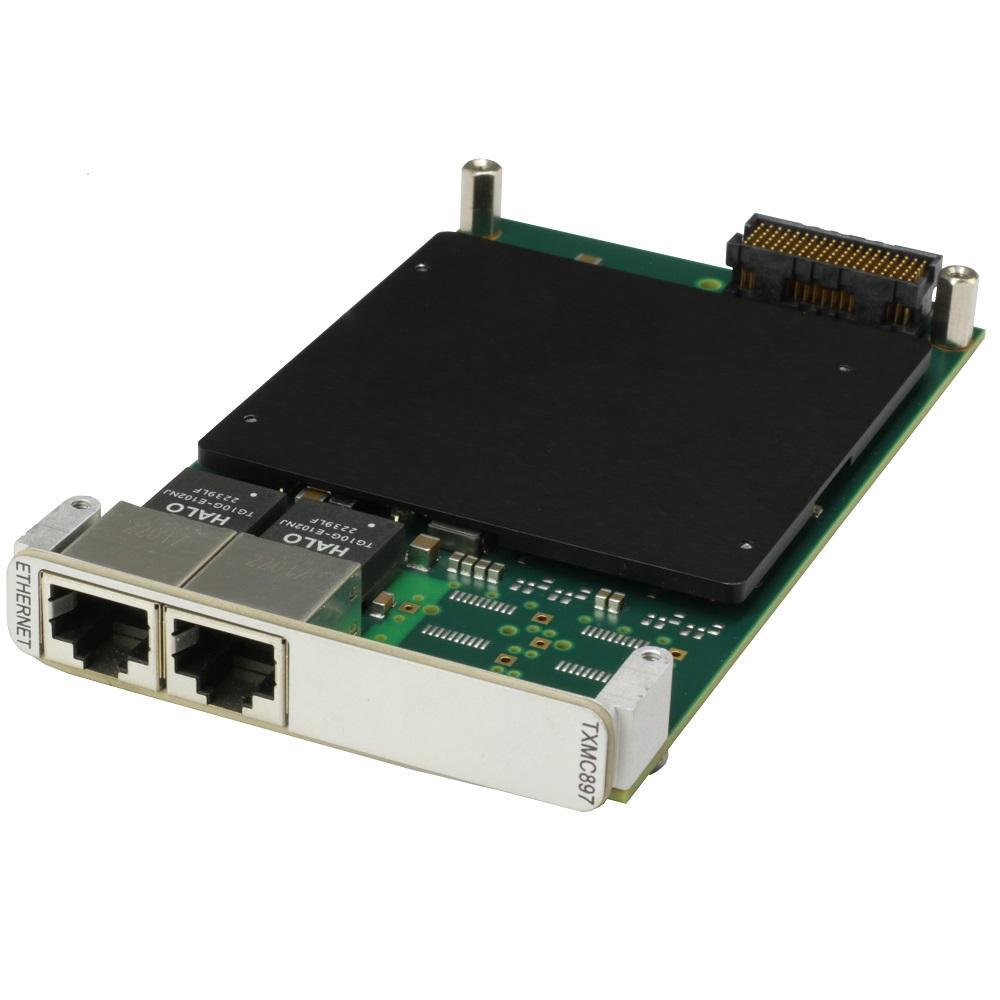

The TXMC897-10R provides two front panel RJ45 ports. The TXMC897-20R provides two 10GBase-T Ethernet front panel ports via RJ45 and two 10Gigabit Ethernet front panel ports via SFP+.

ORDER NOW

Technical Description

proimg1
  • XMC module, VITA 42.0, PCIe x8/x4 compliant VITA 42.3
  • Four 10Gigabit Ethernet ports, Intel X710-TM4/AT2 controller
  • 2 RJ45 connectors and optional 2 SFP+ connectors
  • Auto-negotiation
  • Front panel I/O via RJ45 and SFP+ connectors
  • 64 Mbit serial flash for configuration data and memory for Boot ROM
  • IPMI resource: FRU hardware definition information stored in on-board EEPROM
  • IEEE 1588/802.1AS Precision Time Protocol (PTP)
  • MTBF TXMC897-10R: 404000 h and TXMC897-20R: 293000 h
  • 0°C .. +55°C operating temperature range
  • 5 years warranty

Order Information

TXMC897-10R

2 Channel 10GbE XMC module, front IO

TXMC897-20R

4 Channel 10GbE XMC module, front IO

Technical Documentation

TXMC897-DS

TXMC897 data sheet
