cPCIS-6130R 1U CompactPCI Chassis with 2 Slots and Rear I/O

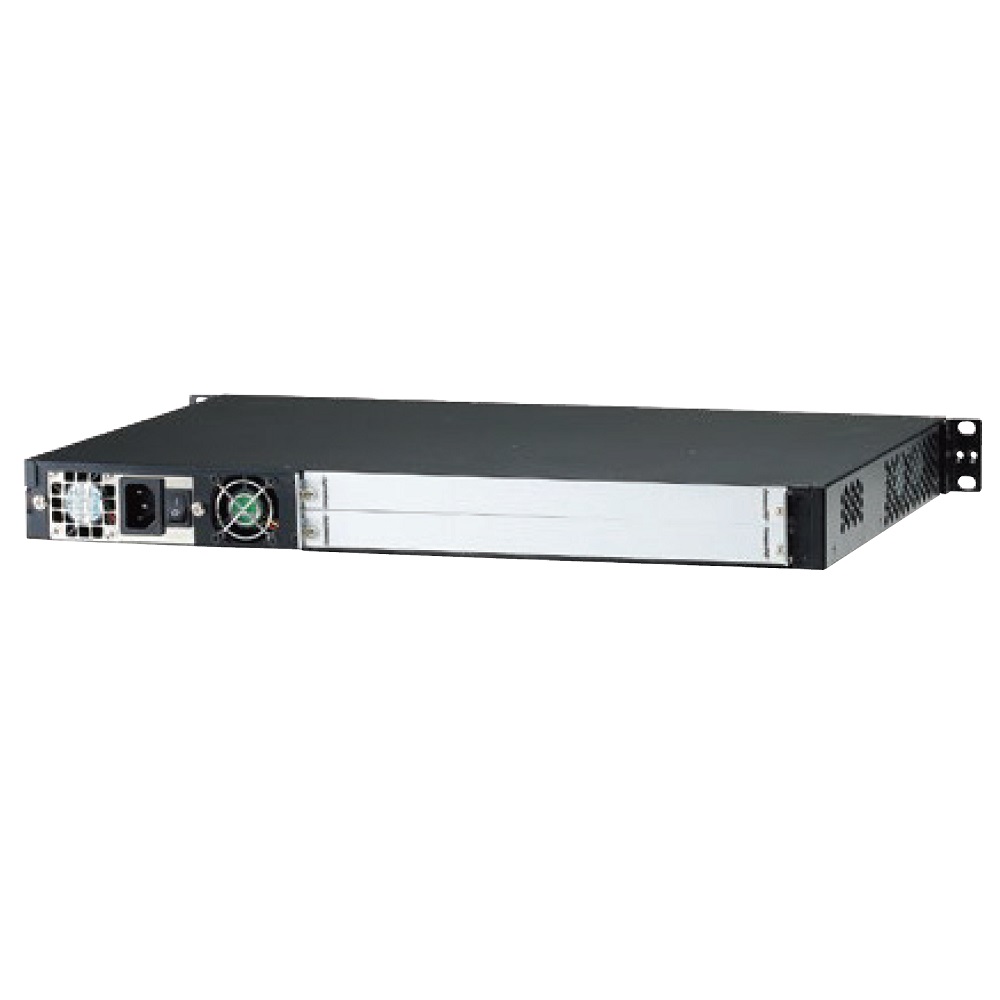

1U CompactPCI chassis with 2 slots. The slim 19"-chassis cPCIS-6130R from ADLINK provides for both slots front and rear I/O. The robust and reliable chassis is suitable for applications in industry and telecommunication. E.g. firewalls, SS7 or VoIP gateways.

The chassis features 2 CompactPCI slots and a 200W AC power supply with wide-range input. The I/O slot is H.110 compliant. The chassis is available in combination with ADLINK's CPU boards like e.g. cPCI-6540 and others.

ORDER NOW

Technical Description

proimg1
  • 1U 19″ rack mount chassis for 6U CompactPCI boards, PICMG 2.0 Rev. 3.0, PICMG 2.1 hot swappable
  • 2 CompactPCI slots
  • Front/rear I/O according IEEE 10.11.11
  • 64 bit 10 layer backplane, I/O slot H.110 compliant
  • Guarded power and reset switch
  • 200W AC power supply with universal input, IEC320-C14

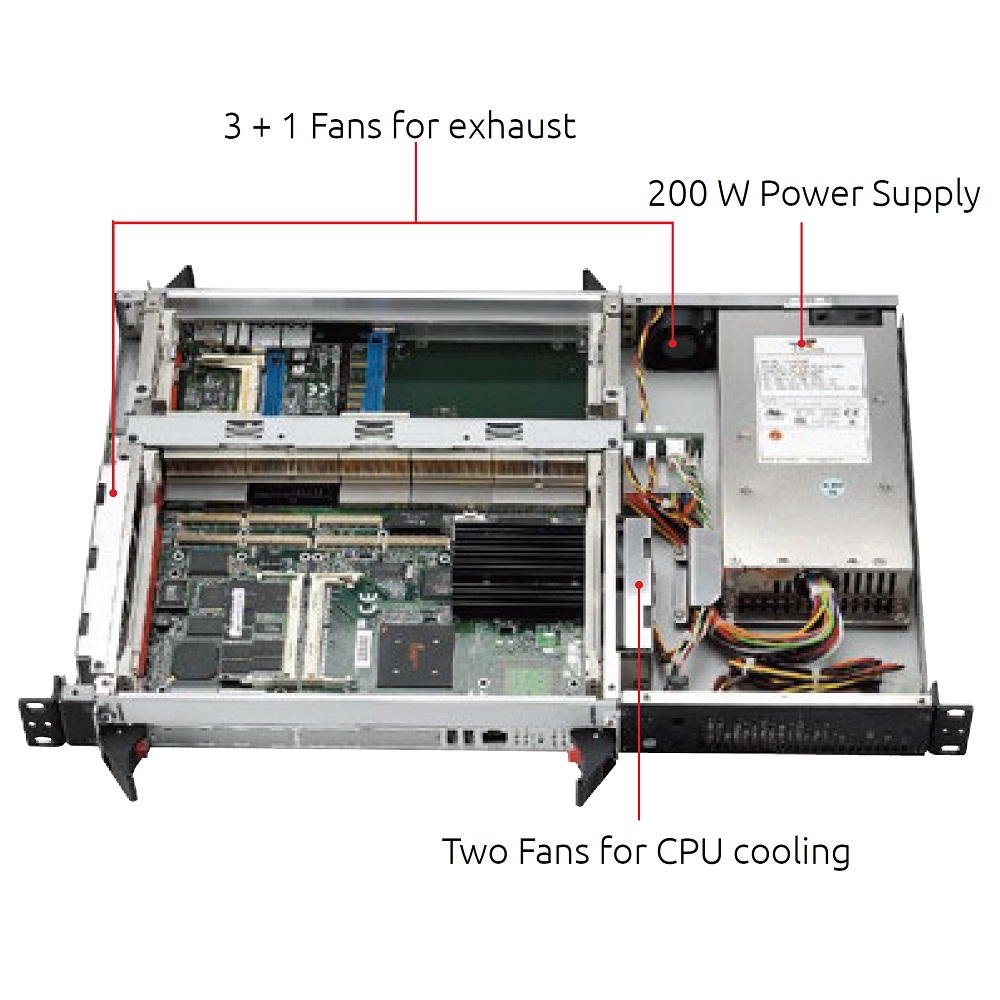

  • Cooling by 7 filtered DC fans
  • 0°C .. 50°C operating temperature range
  • IEEE 1101.10 and 1101.11 compliant
  • 2 years warranty

Order Information

cPCIS-6130R

1U 19" CompactPCI chassis with 2 slots with cBP-6402 64 bit backplane

cPB-6402

cPCI 6U backplane, 2 slot, 64 bit

CPXFP-F

6U front panel

Technical Documentation

cPCIS-6130R-DS

cPCIS-6130R data sheet

cPCIS-6130R-UM

cPCIS-6130R user manual

cPB-6402-DS

cPB-6402 data sheet
