NAMC-ARRIA10-FMC FMC Carrier with Intel ARRIA 10 FPGA

The NAMC-ARRIA10-FMC is an AMC module featuring an Intel Arria 10 GX or SX FPGA and an FPGA mezzanine card (FMC) slot to connect MicroTCA systems with FMC modules. Intel Arria® 10 FPGAs deliver massive performance and power consumption improvements compared to prior-generation FPGAs, both midrange and high-end devices. A comprehensive set of advanced power saving features and power-optimized MultiTrack routing and core architecture results in up to 40% lower power compared to the previous generation of mid-range FPGAs and up to 60% lower power compared to the previous generation of high-end FPGAs.

Intel Arria® 10 FPGAs combine up to 1.5M logic elements, high speed SERDES interconnects and dual-core ARM Cortex A9 cores. They deliver 60% higher performance than the previous generation of mid-range FPGAs and 15% higher performance than the fastest previous-generation high-end FPGAs.

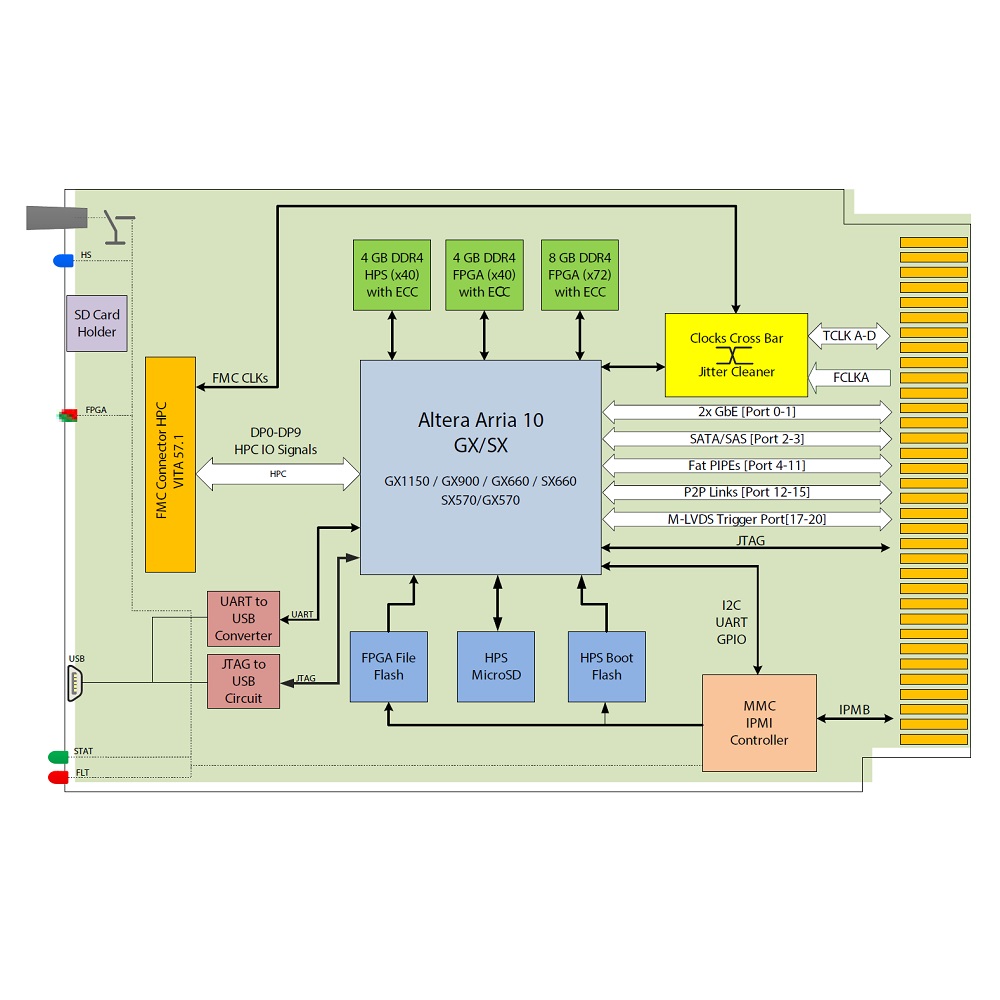

Technical Description

  • AMC carrier with FPGA for FMC modules, mid size or full size form factor, AMC.1, AMC.2, AMC.3, AMC.4 and IPMI 1.5 compliant
  • Intel Arria 10 GX1150, GX900, GX660, GX570, SX660 or SX570 FPGA
    • Up to 1150k LE, 47Mbit memory, 48 SerDes lanes, 588 I/O (GX1150 version)
    • Up to 16GB DDR4 ECC RAM
    • 128 MB flash configuration memory
  • Dual core ARM Cortex A9 processor with up to 1.5 GHz
  • Memory for SX660 and SX570 variants:
    • 4GB 32bit DDR4 ECC to CPU
    • 8GB 64bit DDR4 ECC to FPGA
    • 4GB 32bit DDR4 ECC to FPGA
    • 128MB FPGA configuration flash
    • 128MB boot flash memory
    • MicroSD card slot for operating system and storage
  • Memory for GX1150, GX900, GX660 and GX570 variants:
    • 8GB 64bit DDR4 ECC to FPGA
    • 8GB 32bit DDR4 ECC to FPGA
    • 128MB HPS configuration flash (QSPI)
    • HPS MicroSD / eMMC
  • High pin-count FMC slot complies with VITA 57.1
  • Dual UART-USB to ARM core (SX660, SX570 only) and MMC on the front panel
  • JTAG access over backplane
  • Backplane connection:
    • Full AMC TCLKA-D and FCLKA connectivity
    • Dual 1GbE connect to port 0 and port 1
    • Port 2 and port 3 for SATA/SAS
    • One PCIe x8 Gen3 to Fat-Pipe-Region ports 4-11 or
      dual PCIe x4 Gen3 to Fat-Pipe-Region ports 4-7 and ports 8-11 or
      dual SRIO x4 Gen2 to Fat-Pipe-Region ports 4-7 and ports 8-11
    • Point-to-Point connectivity: Ports 12-15 routed to FPGA (2 x 4 LVDS)
    • 8 MLVDS trigger lines: Ports 17-20
  • 2 years warranty

Order Information


AMC, Intel SX570


AMC, Intel SX660


AMC, Intel GX570


AMC, Intel GX660


AMC, Intel GX900


AMC, Intel GX1150


Faster transceiver speed grade


Normal transceiver speed grade


-40°C ... +100°C operating temperature range


0°C ... +55°C operating temperature range


Faster FPGA speed grade


Normal FPGA speed grade


Mid size front panel


Full size front panel


N.A.T. board support package Linux


N.A.T. Avalon software package for system integration tool Qsys

Technical Documentation


NAMC-ARRIA10-FMC User Manual
