RackPak/M2-40

RackPak/M2-40 1U 4 Slot MTCA.4 Crate with integrated eMCH

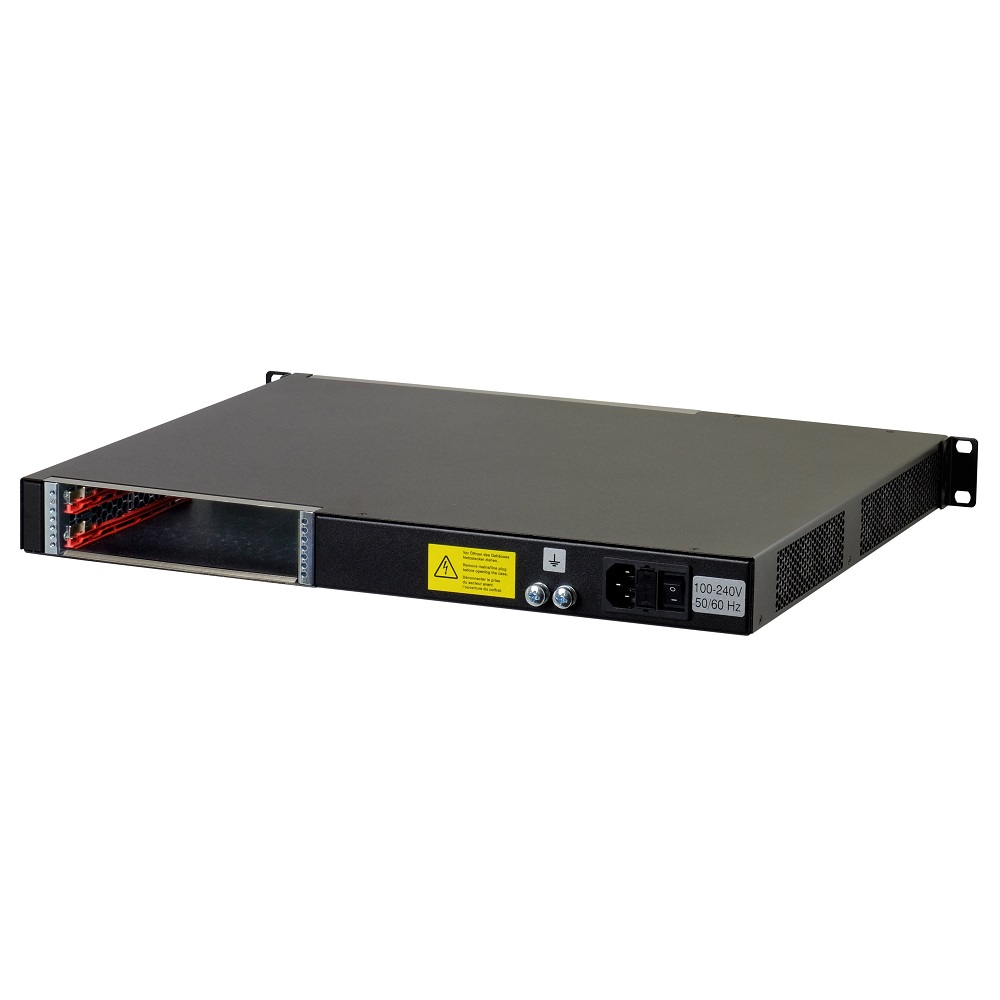

Closed 1U rack offering two single mid-size and two double mid size AMC slots and an integrated eMCH (embedded MicroTCA Carrier Hub). The eMCH of the Pentair RackPak/M2-40 MTCA crates comes with basic MicroTCA functionality for switching and managing two AMCs. Each AMC slot is connected to the MCH with GbE links.

The crate has an integrated 400W AC power supply with wide range AC input. The fan speed can be adjusted via the MCH. The crate is available with right to left air flow. It is stackable and ready for a mounting plate.

ORDER NOW

Technical Description

proimg1
  • 1U MTCA crate
  • 2 double mid-size AMC slots
  • 2 single mid-size AMC slots
  • 2 double mid-size RTM slots
  • Integrated MCH with Ethernet uplink and USB interface
  • GbE links from MCH to all AMC slots
  • Fat pipe/extended fat pipe lanes prepared for 40GbE and PCIe Gen 3
  • Integrated 400W AC power supply with wide range AC input
  • Cooling unit with right to left air flow
  • Fan unit and air filter easy exchangeable
  • Dimensions: 373 mm (depth) x 265 mm (width)
  • 2 years warranty

Order Information

RackPak/M2-40

1U MTCA.4 Crate, cooling unit, right to left air flow

AM_G64/471

Processor AMC module, Quad Core 3.0 GHz Intel Xeon E3-1505M v6, 16 GB RAM, double mid-size

AM_F54/391-30

Processor AMC module, Quad Core 2.8 GHz Intel Xeon E3-1515M v5, 16 GB RAM, full-size

Technical Documentation

RackPak/M2-40 Data Sheet
