TCP270 3U CompactPCI PMC Carrier Board

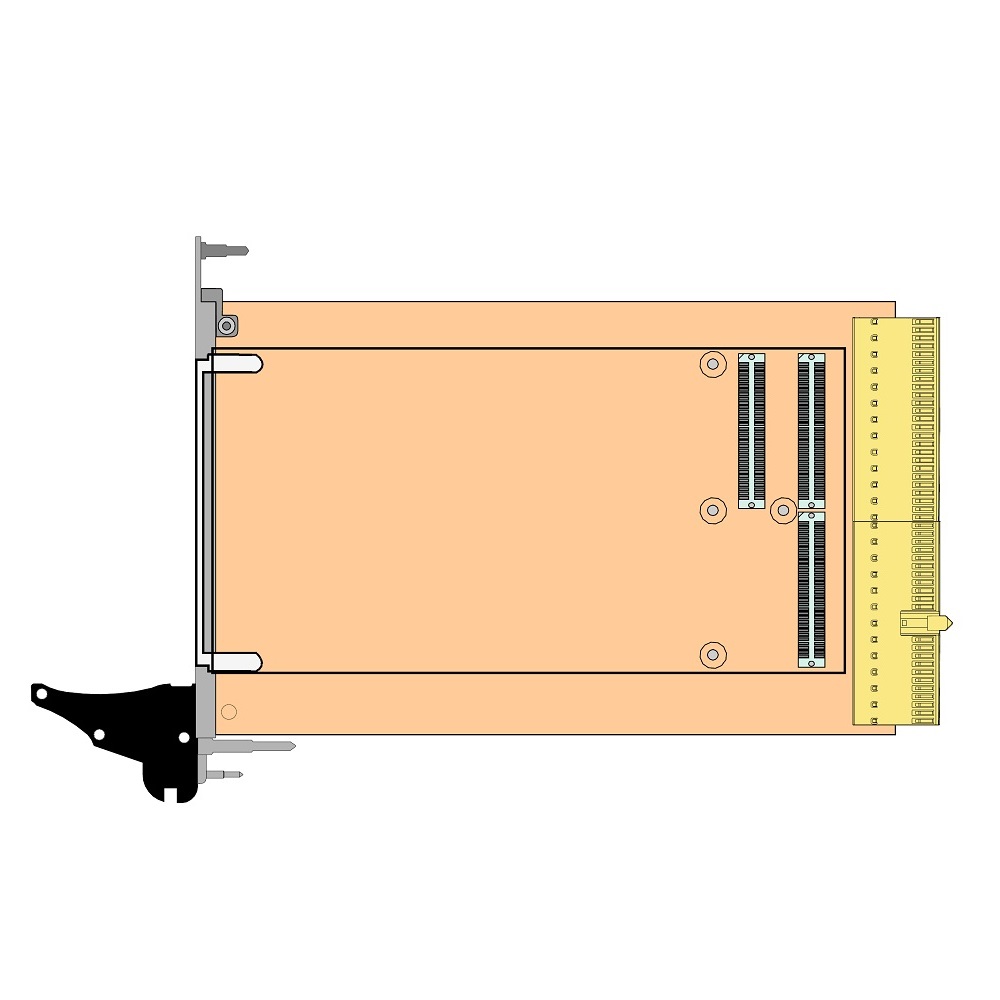

3U CompactPCI PMC carrier for one PMC module. The TEWS TCP270 provides front I/O and rear I/O for a single width PMC module. This PMC to 3U CompactPCI adapter is used to build modular, flexible and cost effective I/O solutions with PMC devices in CompactPCI systems.

32 bit/33 MHz accesses are supported on the PCI bus. The TCP270 is used as a mechanical adaptor to connect a standard PMC module in 3U CompactPCI systems. The TCP270 supports PMC front I/O and optional CompactPCI rear I/O at CompactPCI connector J2/P2. The pin assignment corresponds to the PICMG 2.3 R1.0 PMC on CompactPCI signal mapping. The use of PMC I/O on the J2/P2 connector (TCP270-11) precludes the use of 64 bit CompactPCI backplanes. The TCP270 carrier complies with the PICMG 2.0 Revision 3.0 CompactPCI specification.

Operating temperature range is -40°C to +85°C.

ORDER NOW

TECHNISCHE BESCHREIBUNG

proimg1
  • 3U CompactPCI board, PICMG 2.0 R3.0 compliant, 32-bit/33MHz PCI interface, PICMG 2.3 R1.0 cPCI signal mapping, 3.3/5V Vio
  • One 32-bit/33MHz PMC site for IEEE 1386.1 compliant modules with front panel I/O, opt. rear I/O via J2/P2
  • -40..85°C operating temperature range
  • 5 years warranty

Bestellbezeichnungen

TCP270-10R

PMC carrier board with front panel I/O

TCP270-11R

PMC carrier board with front panel and J2/P2 I/O

TCP001-FP-10R

Front panel extension to 6U

TCP030-TM-10R

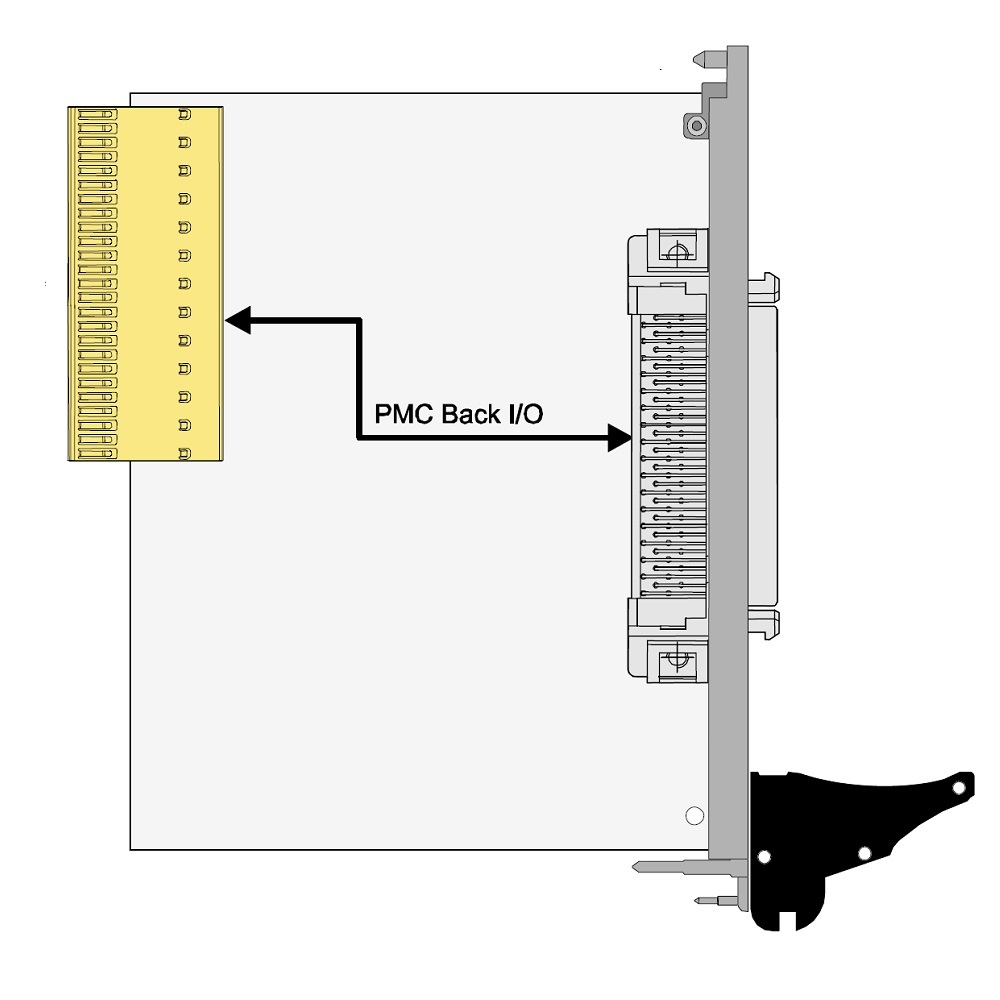

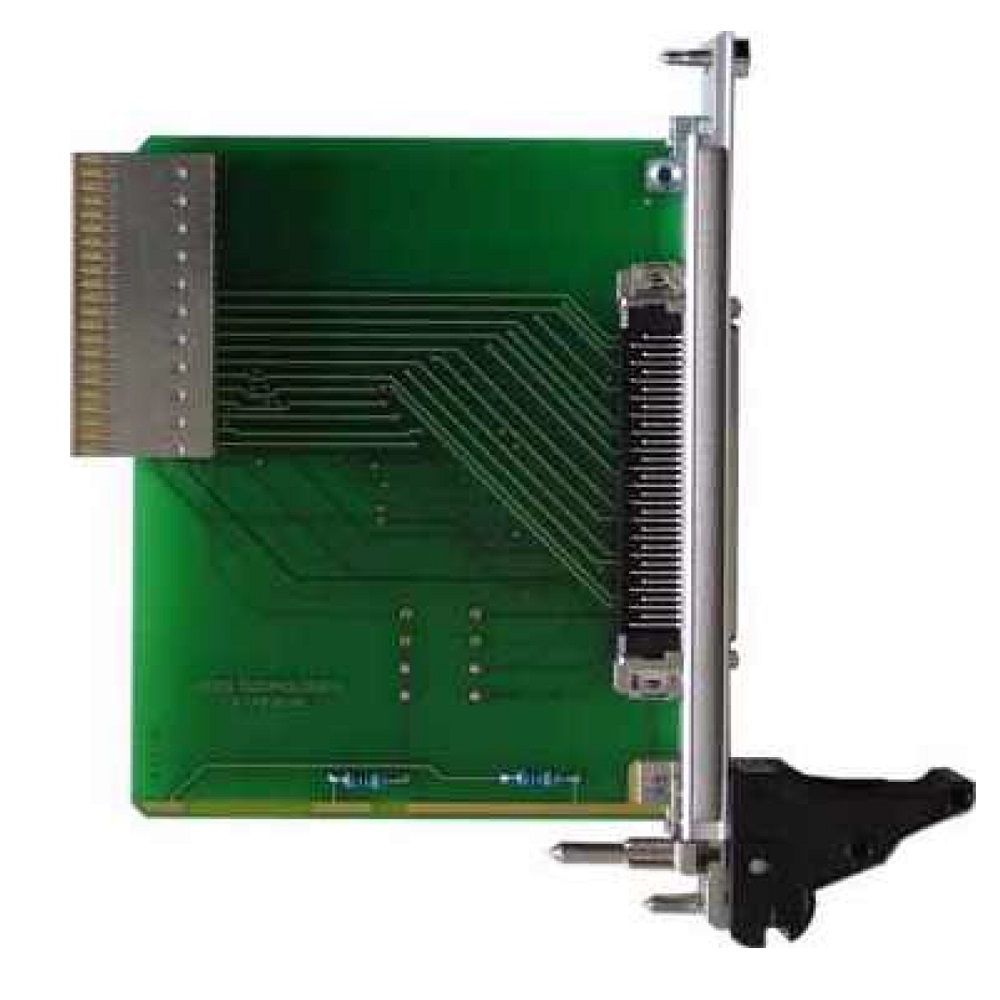

Rear I/O transition module with HD68 SCSI type 3 connector

TCP040-TM-10R

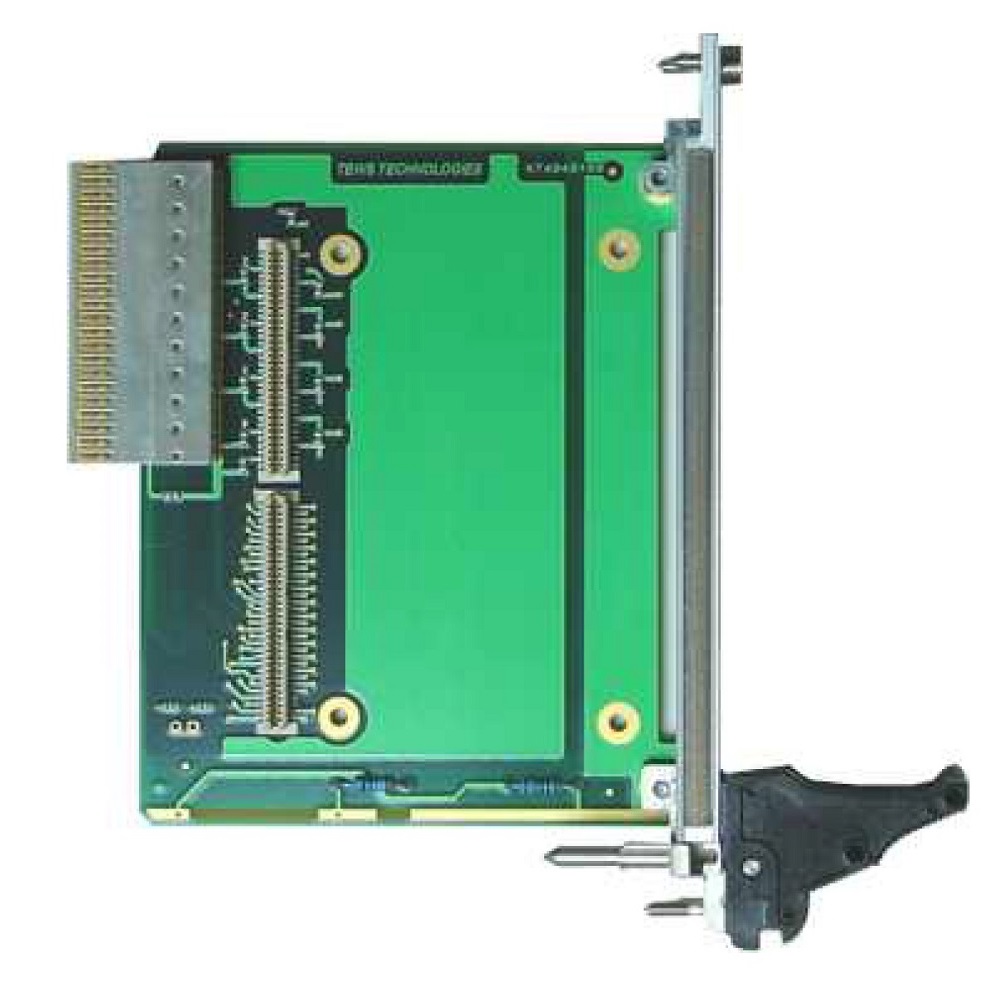

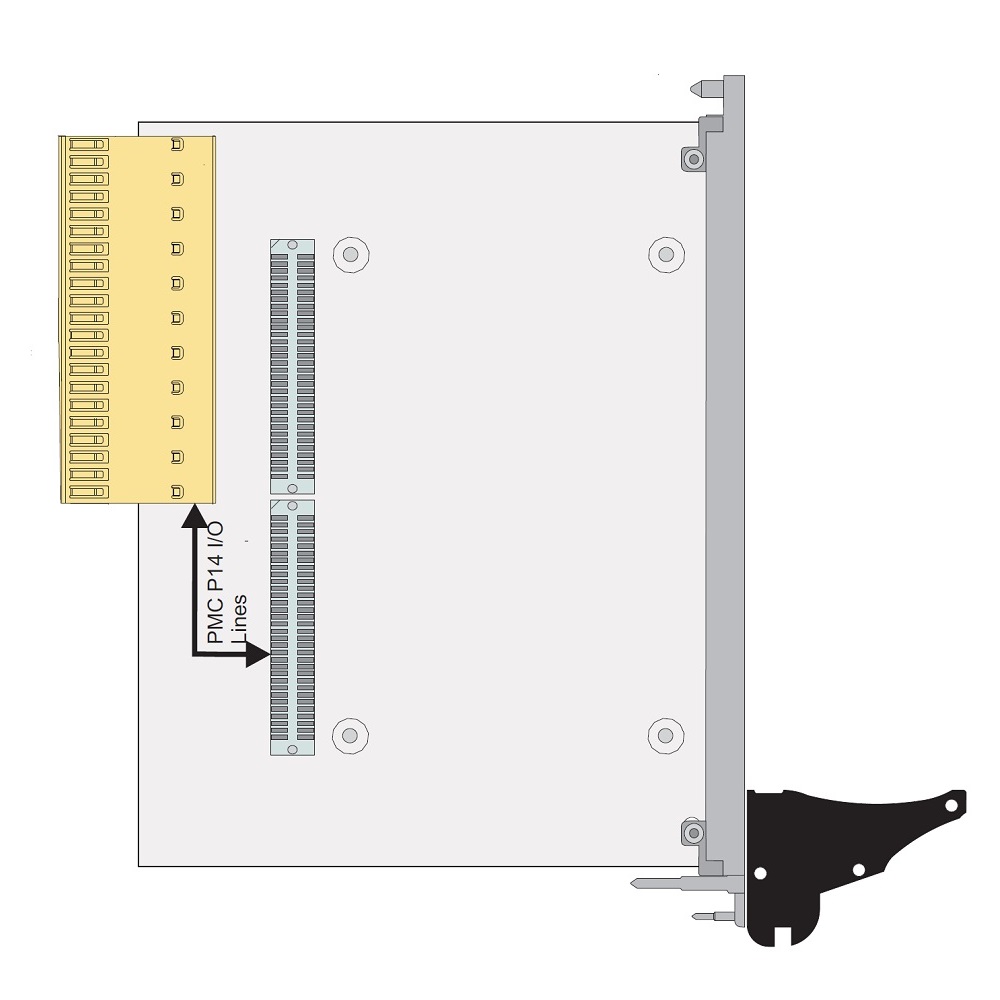

Rear I/O transition module with I/O mapping via RJ2; I/O lines are accessible via a PIM module

TECHNISCHE DOKUMENTATION

TCP270 data sheet

TCP270 user manual

TCP001-FP user manual

TCP030-TM data sheet

TCP030-TM user manual

TCP040-TM data sheet

TCP040-TM user manual
