TPMC395 Conduction-Cooled Quad Gigabit Ethernet PMC Module

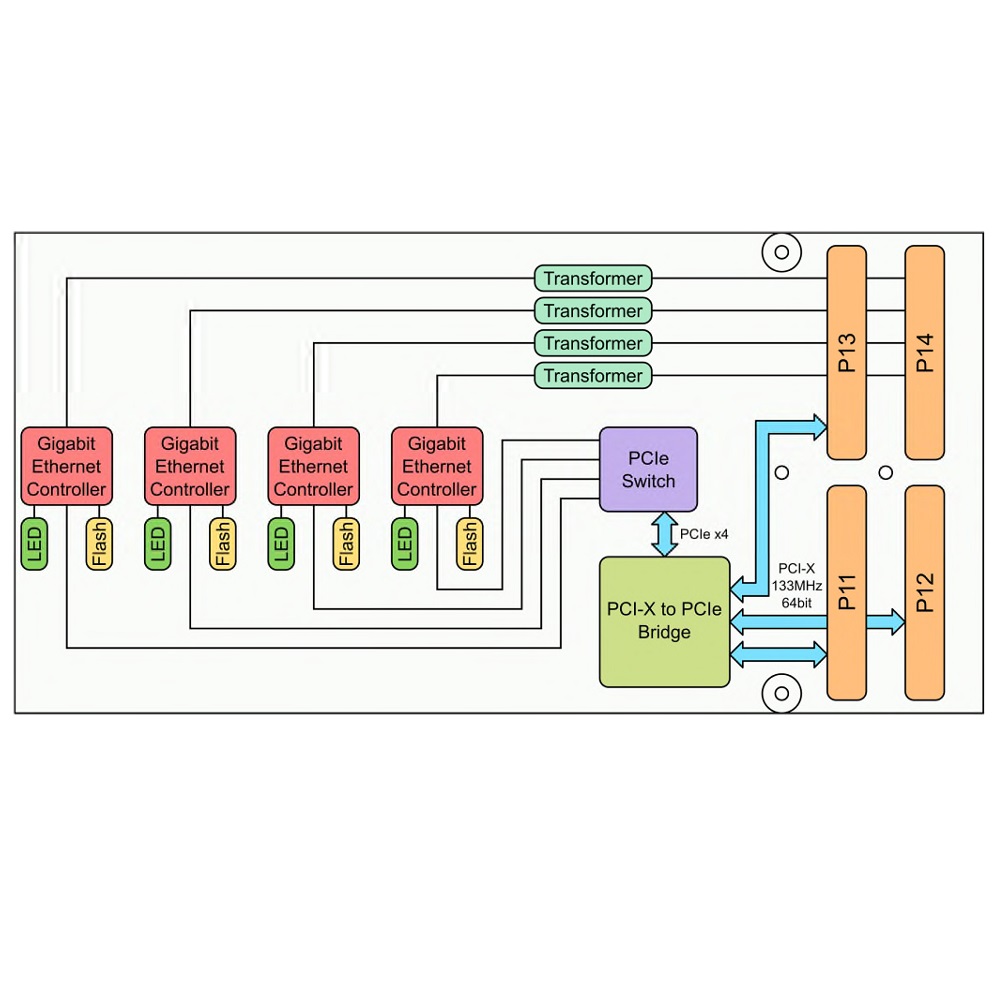

Quad channel Gigabit Ethernet 10BASE-T/100BASE-TX/1000BASE-T interface. A transparent 64bit/133 MHz PCI-X/PCI-to-PCIe Bridge provides access to the four Intel I210IT Ethernet Controllers, which support 10, 100, and 1000 Mbit/s transmission rates are supported. Each channel of the TPMC395 is capable of performing an auto negotiation algorithm which allows both link-partners to find out the best link-parameters.

All ports are galvanically isolated from the Ethernet controllers and LEDs on the board indicate the different network activities.

The TEWS TPMC395-10R PCI Mezzanine Card (PMC) module routes all four Ethernet ports to the rear I/O P14 connector. The module comes without front panel. The PIM module TPIM006-10R provides RJ45 jacks for rear IO.

ORDER NOW

Technical Description

proimg1
  • PMC module, 64-bit/133 MHz PCI-X/PCI interface, IEEE P1386.1 compliant, PCI 3.0 and PCI-X 2.0a compliant, 3.3/5V Vio, conduction-cooled, no front panel
  • Four 10/100/1000BaseTX Ethernet ports, Intel I210IT controller
  • Auto negotiation
  • Rear I/O via P14
  • All ports galvanically isolated
  • 16 Mbit serial flash
  • IEEE 1588/802.1AS Precision Time Protocol (PTP)
  • IEEE 802.1Qav Audio/Video Bridging (AVB) traffic shaping (with software extensions)
  • Conduction-cooled, -40°C .. +85°C operating temperature range
  • 5 years warranty

Order Information

TPMC395-10R

Quad 10/100/1000BaseT Ethernet interface with P14 I/O, conduction cooled

TPIM006-10R

PIM I/O module with four RJ45 jacks for TPMC395-10R

Technical Documentation

TPMC395 Data Sheet

TPMC395 User Manual
