TPMC810

TPMC810 2 Channel isolated CAN Bus Interface

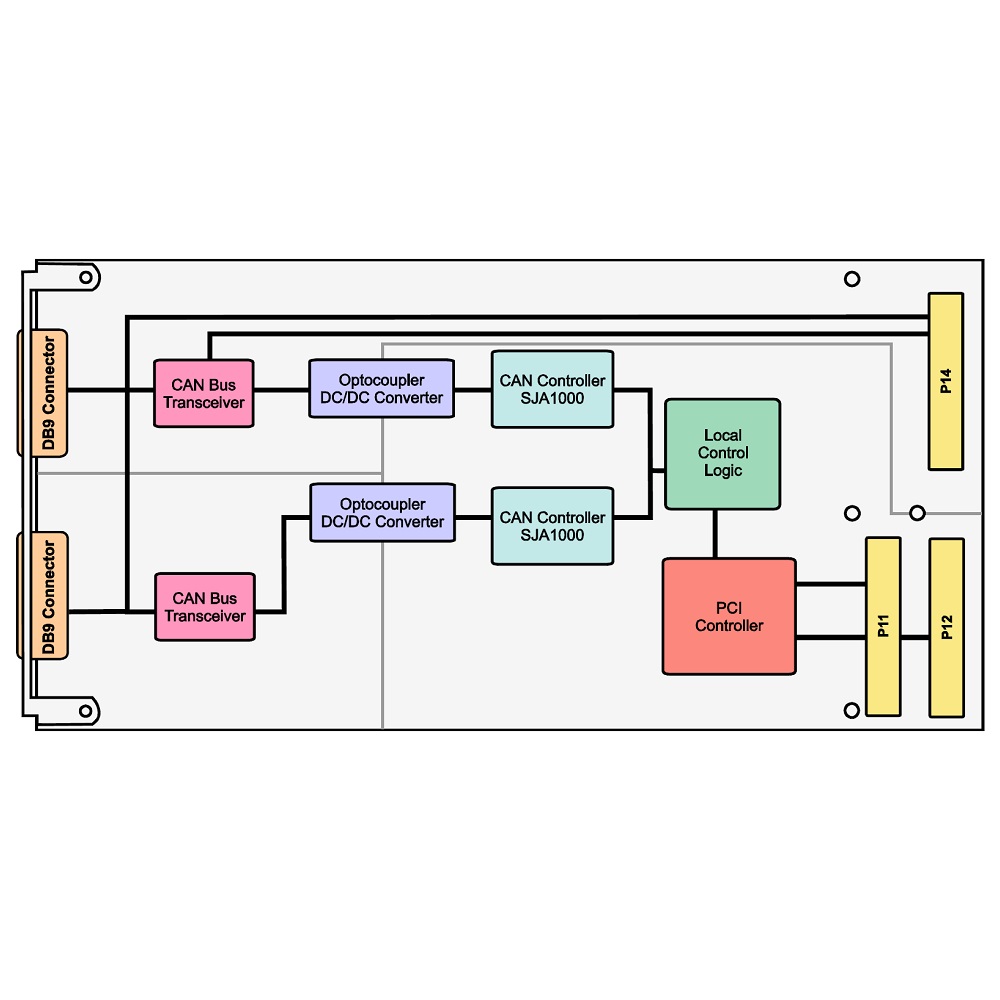

Two complete CAN bus interfaces using two Philips SJA1000 CAN controllers. The channels of the TPMC810 PMC module are fully independent and support the 2.0B CAN specification. Both channels feature a CAN high-speed interface and are isolated. The interfaces are available via front panel or P14.

Software support is available for Linux, Integrity, QNX, VxWorks, and Windows.

ORDER NOW

TECHNISCHE BESCHREIBUNG

proimg1
  • PMC module, 32-bit/33MHz PCI interface, IEEE P1386.1 compliant, PCI 2.2 compliant, 3.3/5V Vio
  • Two extended CAN high-speed interfaces, ISO11898-2 compliant
  • Philips SJA1000 controller
  • Compliant to CAN specification 2.0 B
  • Transfer rate 1 Mbit/s at up to 30 m bus length
  • On-board termination 120 W
  • CAN interfaces optically isolated and ESD protected
  • Front panel I/O via two DB9 male connectors and P14 I/O
  • Linux, Integrity, QNX, VxWorks, and Windows drivers are available
  • -40°C .. +85°C operating temperature range
  • 5 years warranty

Bestellbezeichnungen

TPMC810-10R

2 port isolated CAN bus interface PMC module

TPMC810-20R

2 port isolated CAN bus interface PMC module with same pin assignment as TPMC816-10R

TPIM001-10R

PIM I/O module with HD50 SCSI-2 type connector

TDRV010-SW-25

Integrity driver

TDRV010-SW-42

VxWorks driver

TDRV010-SW-65

Windows driver

TDRV010-SW-82

LINUX driver

TDRV010-SW-95

QNX 6 driver

TECHNISCHE DOKUMENTATION

TPMC810 data sheet

TPMC810 user manual

TPIM001 data sheet

TPIM001 user manual

VxWorks driver user manual

Windows driver user manual

LINUX driver user manual

QNX 6 driver user manual
