TXMC463 XMC Module with 4 Port Serial RS-232/422 Controller with Programmable Interfaces

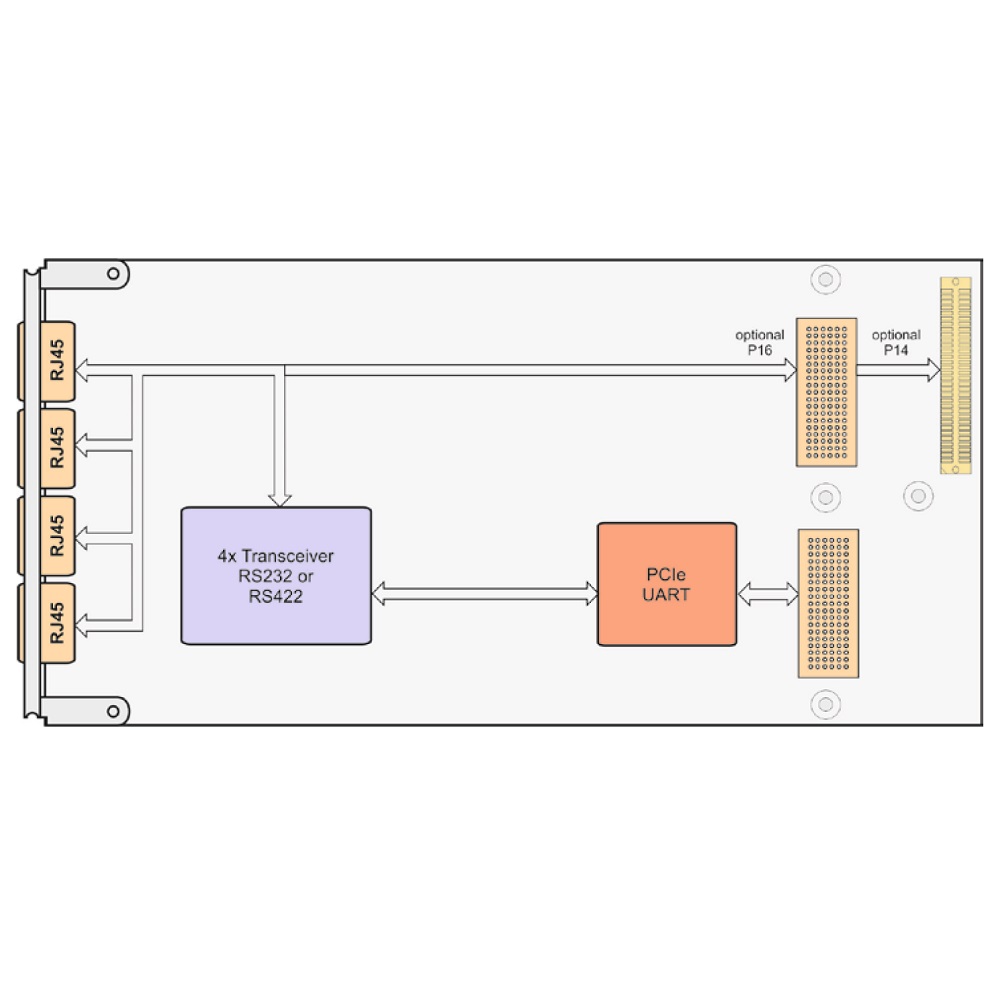

XMC module that offers 4 channel high performance serial controllers with individually programmable RS-232 and RS-422 interfaces. The TXMC463-10R and -15R provide 4 RS232 interfaces. The TXMC463-11R provides 4 RS422 interfaces. The TXMC463-12R provides 2 RS232 and 2 RS422 interfaces. The TXMC463-15R uses a non-standard RJ45 I/O pinout (as used on Motorola CPU boards). The module has an operating temperature range of -40°C to +85°C.
RS-232 channels support TxD, RxD, RTS, CTS, DTR, DCD, and DSR/RI. RS-422 channels support TxD+/- and RxD+/- on front and TxD+/-, RxD+/-, RTS +/- and CTS +/- on back I/O. The module has front I/O via a RJ45 connectors.
Each channel has 256 byte transmit and receive FIFOs. The FIFO trigger thresholds, and the baud rates are individually programmable: up to 1 Mbps for RS-232 channels, and 16 Mbps for RS-422 channels. For fast interrupt source detection the UART provides a special global interrupt source register. All channels use transceivers with ±15 kV ESD protection.
A wide range of drivers is available: Linux, LynxOS, Integrity, QNX, VxWorks and Windows. All drivers - except the Windows drivers - are supplied as C source code.
The XMC module is also available as TPMC463 PMC module.
- XMC module, VITA 42.0-2008, PCIe 2.0 compliant VITA 42.3-2006
- 4 RS-232/422 ports
- RS-232 signals: TxD, RxD, RTS, CTS, DTR, DCD, and DSR/RI
- RS-422 signals: TxD+/- and RxD+/- on front and TxD+/-, RxD+/-, RTS +/- and CTS +/- on back I/O
- Front-I/O with four RJ45 connectors
- Exar XR17V354 controller
- 256 byte receive and 256 byte transmit FIFOs per channel
- Transfer rates up to 16 Mbit/s via RS-422 and 1 Mbit/s via EIA-232
- ±15 kV ESD protection
- -40°C .. +85°C operating temperature range
- Linux, LynxOS, Integrity, QNX, VxWorks, and Windows drivers available
- 5 years warranty
4 port serial RS-232 interface XMC module, Front-I/O
4 port serial RS-422 interface XMC module, Front-I/O
2 port serial RS-232 and 2 port serial RS-422 interface XMC module, Front-I/O
4 port serial RS-232 interface XMC module, Motorola compatible pinout, Front-I/O
QNX 6 driver
TXMC463 Data Sheet
TXMC463 User Manual
Integrity driver User Manual
VxWorks driver User Manual
Windows driver User Manual
LINUX driver User Manual
QNX 6 driver User Manual
