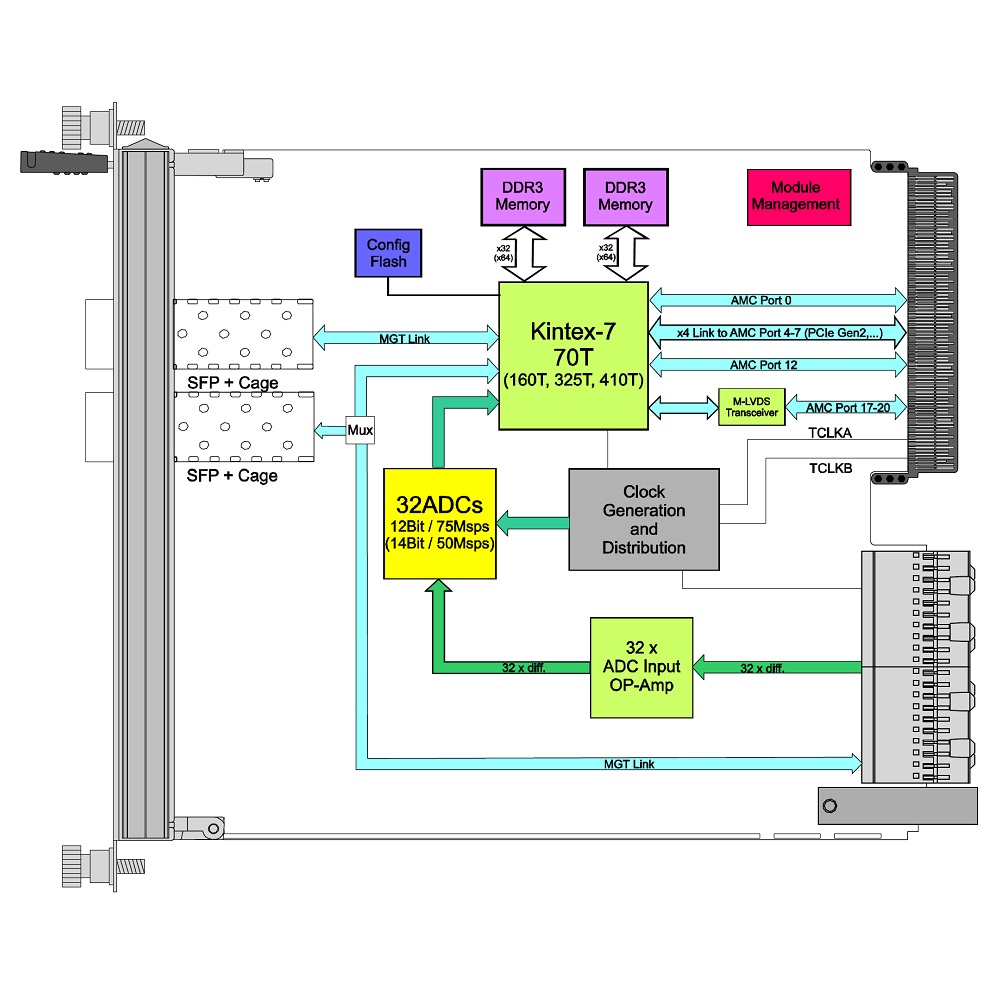

TAMC532 bock diagram

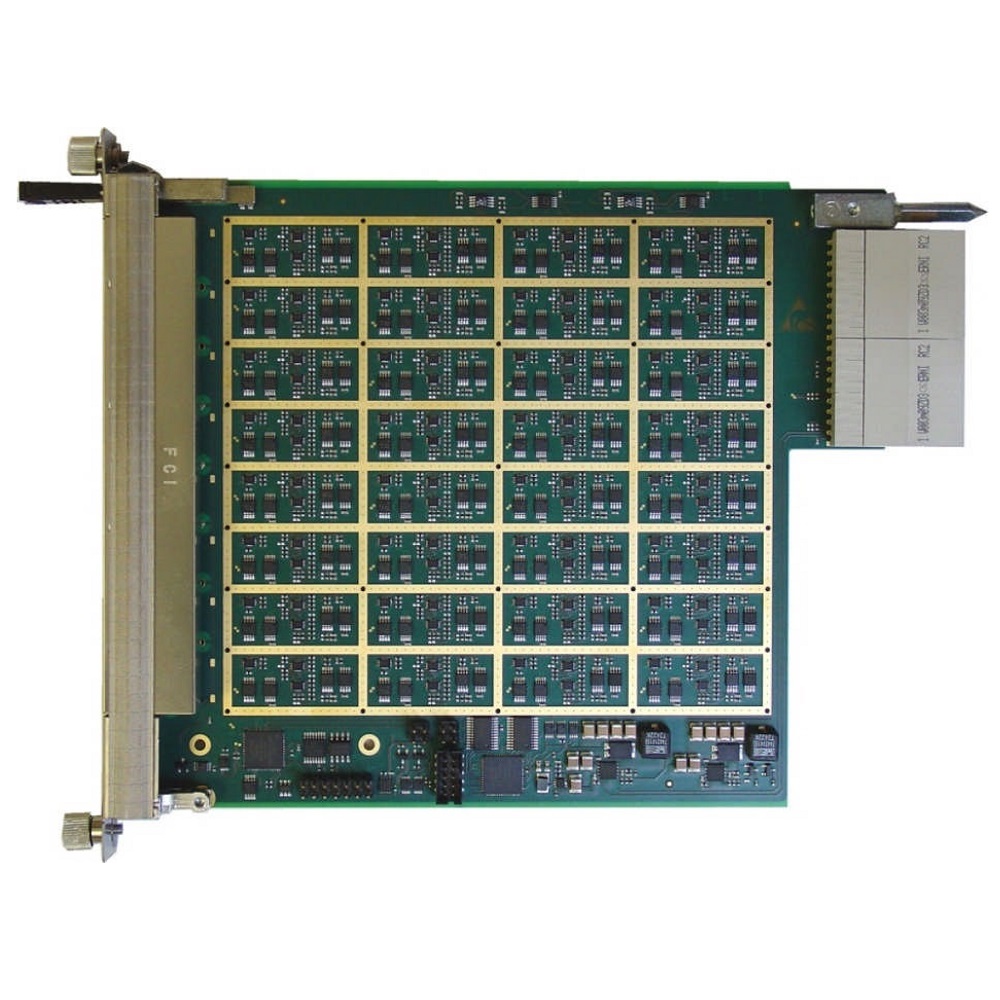

TAMC532-TM 32 channel analogue-In MTCA.4 µRTM for class A2.1

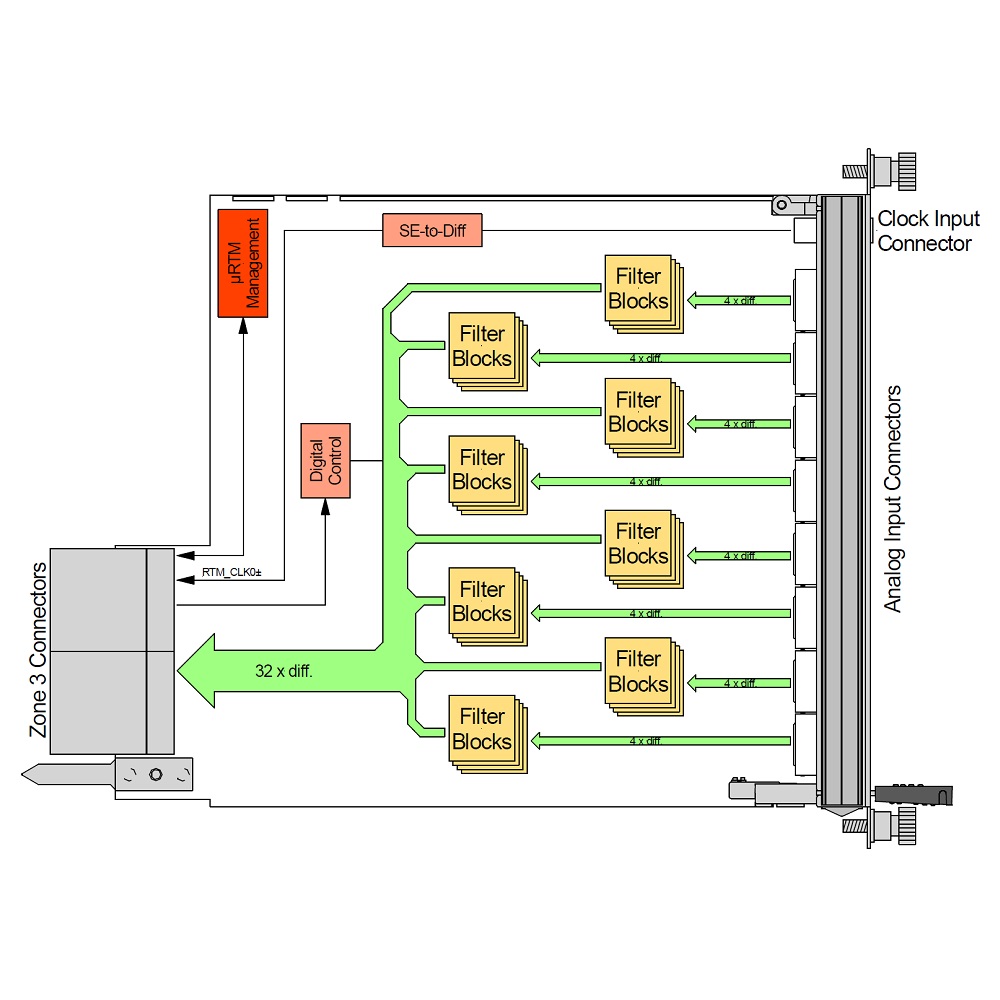

TAMC532-TM block diagram
TA900-10R program and debug box
TAMC532 32 Channel 12/14 Bit 75/50 MSps AD Converter
12/14 bit AD converter with 32 inputs. The 32 ADCs provide 75 MSps at 12 bit resolution or 50 MSps at 14 bit resolution. The TEWS Technologies TAMC532 has a MTCA.4 zone 3 interface according to class A2.1. Data readout can be done via several interfaces like PCIe or two SFP cages in the front panel.
The TAMC532 contains additionally a Kintex-7 FPGA and 512 MB DDR3 RAM, opt. up to 4 GB RAM. The FPGA does the data pre-processing and controls the data transfer to the CPU via a PCIe x4 interface. In-circuit programming and debugging of the fPGA design is supported. The program and debug box TA900 or the standard Xilinx JTAG header allows access to the module while it is inserted in a system. In addition to the module's JTAG Chain, the TA900 allows access to the UART of the in-board Module Management Controller (MMC) and two user pins of the FPGA. IF a UART core is implemented in the FPGA, serial communication via the TA900 is possible. The TA900 can be accessed by USB 2.0 and by a 14-pin JTAG header.
The TAMC532-TM is a MTCA.4 compliant Micro Rear Transition Module (Micro RTM) for the TAMC532. Eight RJ45 connectors ate used as input connectors for the 32 differential analogue inputs of the TMAC532-TM. Each of the 32 differential analogue inputs is connected to its own filter block. Gain, Pole-Zero compensation, shaping time and baseline shift are adjustable.
A wide range of drivers is available: Windows, Linux, LynxOS, QNX, VxWorks, and Integrity. All drivers - except the Windows drivers - are supplied as C source code.
- 32 channel AD converter AMC
- AMC module with AMC.1 type 4 and AMC.2 type E1 interface, double mid size and full size form factor
- 32 AD inputs:
- TAMC532-10R: 12bit 75 Msps
- TAMC532-11R: 14bit 50 Msps
- MTCA.4 zone 3 interface according to class A2.1
- 512 MB DDR3 RAM, opt. 1GB, 2GB or 4GB RAM
- ±1V differential analogue input via zone3
- Kintex-7 70T FPGA, opt. 160T, 325T or 410T
- Gigabit Ethernet on port 0
- PCIe Gen 2 on ports 4-7
- M-LVDS Transceiver on ports 17-20
- IPMI V1.5 support
- 2 SFP+ cage
- 0°C .. +55°C operating temperature range, opt. -40°C .. +85°C
- Windows, Linux, LynxOS, QNX, VxWorks, and Integrity drivers are available
- 5 years warranty
32 12bit 75 Msps ADC, Kintex-7, 512 MB DDR3
32 14bit 50 Msps ADC, Kintex-7, 512 MB DDR3
µRTM for TAMC532
Program and Debug Box
