TPMC600

32 Port Insulated 24V Digital Input Module

PMC module with 32 interrupt-generating digital inputs, which are galvanically isolated by optocouplers. The individual inputs of the TEWS Technologies TPMC600 are divided into groups of 4 and share a common ground input. These groups are potential-free among each other. The input circuit has a defined switching point and reverse voltage protection. All inputs have an electronic debounce circuit with programmable debounce time.
The modules are available with front panel or P14 I/O. All inputs can generate an interrupt.

ORDER NOW

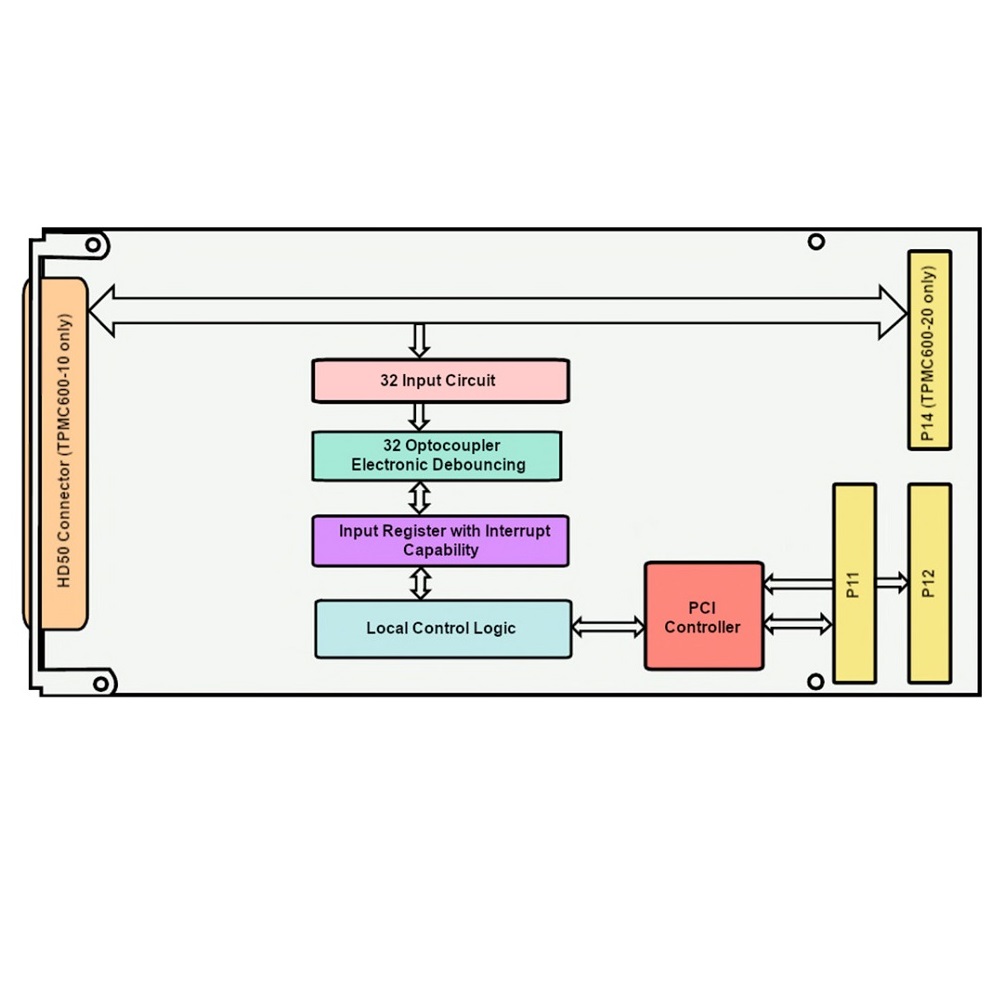

Technical Description

proimg1
  • PMC module, 32-bit/33MHz PCI interface, IEEE P1386.1 compliant, PCI 3.0 compatible
  • 32 interrupt-generating digital 24V-inputs
  • All inputs are isolated from each other in groups of four
  • Reverse voltage protection
  • Programmable electronic debounce circuit (7μs to 440ms in steps of 7μs)
  • Front panel or P14 I/O
  • -40°C .. +85°C operating temperature range
  • Linux, Integrity, QNX, VxWorks and Windows drivers available
  • Five years warranty

Order Information

TPMC600-10R

PMC, 32 interrupt-generating digital inputs, FP I/O

TPMC600-20R

PMC, 32 interrupt-generating digital inputs, P14 I/O

TA301-10R

Connection kit 1.8m cable with HD-50 connectors and 50 pin terminal block

TPIM001-10R

PIM I/O module with HD-50 connector

TPMC600-SW-25

Integrity Driver

TPMC600-SW-42

VxWorks Driver

TPMC600-SW-65

Windows Driver

TPMC600-SW-82

Linux Driver

TPMC600-SW-95

QNX Driver

Technical Documentation

TPMC600 Data Sheet

TPMC600 User Manual

TPIM001 Data Sheet

TPIM001 User Manual

VxWorks Driver User Manual

Windows Driver User Manual

Linux Driver User Manual
