TPMC682

TPMC682 Three 16 bit I/O Ports with 512 Word FIFO and Handshake

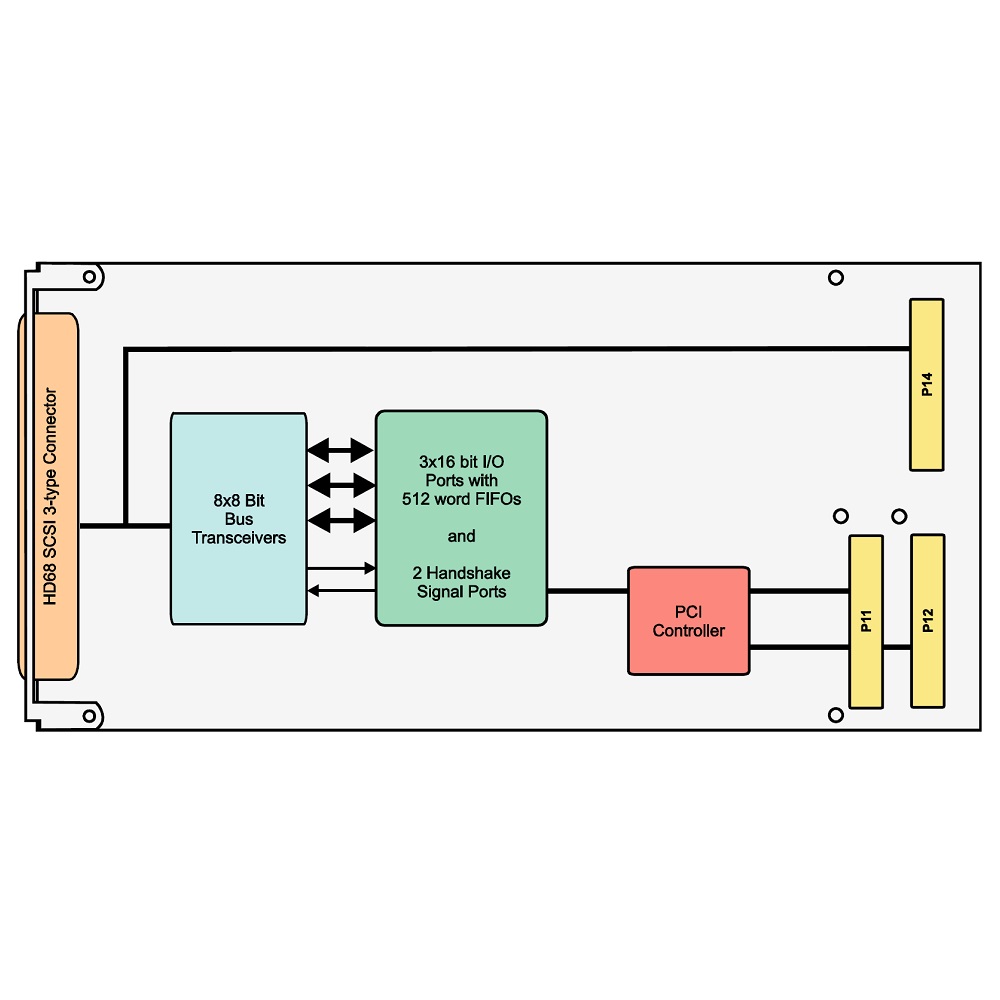

Three 16 bit TTL digital input/output lines controlled by handshake signals. These handshake signals run over an additional 8 bit input and an 8 bit output port. Interlocked or pulsed handshake protocol is provided. Each I/O port of the TPMC682 MC module has a 512 words deep FIFO. All I/O lines are protected by bus transceivers and ESD protection devices.

The PLX PCI9030 PCI target chip is used for the PCI interface.

An interrupt can be generated on INTA, when the filling level of a FIFO exceeds the value of the individually programmable threshold. Each port has a programmable timeout counter for input direction of data.

A wide range of drivers is available: Linux, Integrity, QNX, VxWorks and Windows. All drivers - except the Windows drivers - are supplied as C source code.

ORDER NOW

TECHNISCHE BESCHREIBUNG

proimg1
  • PMC module, 32 bit/33MHz PCI interface, IEEE P1386.1 compliant, PCI 2.1 compliant, 3.3V and 5V Vio
  • Three 16 bit TTL I/Os ports and two 8 bit ports for handshake signals
  • 512 word FIFOs for each parallel port with individually programmable thresholds
  • Programmable reading timeout
  • Front panel or P14 I/O
  • ESD and overvoltage protection for each I/O line
  • -40°C .. +85°C operating temperature range
  • Integrity, Windows, Linux, QNX, and VxWorks drivers available
  • 5 years warranty

Bestellbezeichnungen

TPMC682-10R

PMC module with three 16 bit TTL I/O ports, 512 byte FIFOs

TA104-10R

1.8m cable with HD-68 connectors

TPIM002-10R

PIM module with 68 pin SCSI-2 type connector

TDRV008-SW-25

Integrity driver

TDRV008-SW-42

VxWorks driver

TDRV008-SW-65

Windows WDM driver

TDRV008-SW-82

LINUX driver

TDRV008-SW-95

QNX 6 driver

TECHNISCHE DOKUMENTATION

TPMC682 data sheet

TPMC682 user manual

TPIM002 data sheet

TPIM002 user manual

VxWorks driver user manual

Windows WDM driver user manual

LINUX driver user manual

QNX 6 driver user manual
