TPMC683

TPMC683 32 Port RS-422/485 I/O Module

32 digital differential I/O lines using EIA-422 / EIA-485 compatible ESD protected transceiver. Each line of the TPMC683 PMC module can be individually configured as differential input or differential output. The differential receivers are always enabled, allows determining the state of the I/O line at any time. This can be used as read back function for lines configured as outputs.

All 32 input lines can generate an interrupt. Each input interrupt can individually be enabled and cleared. The signal edge handling is programmable. For interrupt source detection, the status of each line can be read from interrupt status registers.

The TPMC683 provides front panel I/O via a HD68 SCSI-3 type connector and rear panel I/O via P14.

A wide range of drivers is available: Linux, QNX, VxWorks and Windows. All drivers - except the Windows drivers - are supplied as C source code.

ORDER NOW

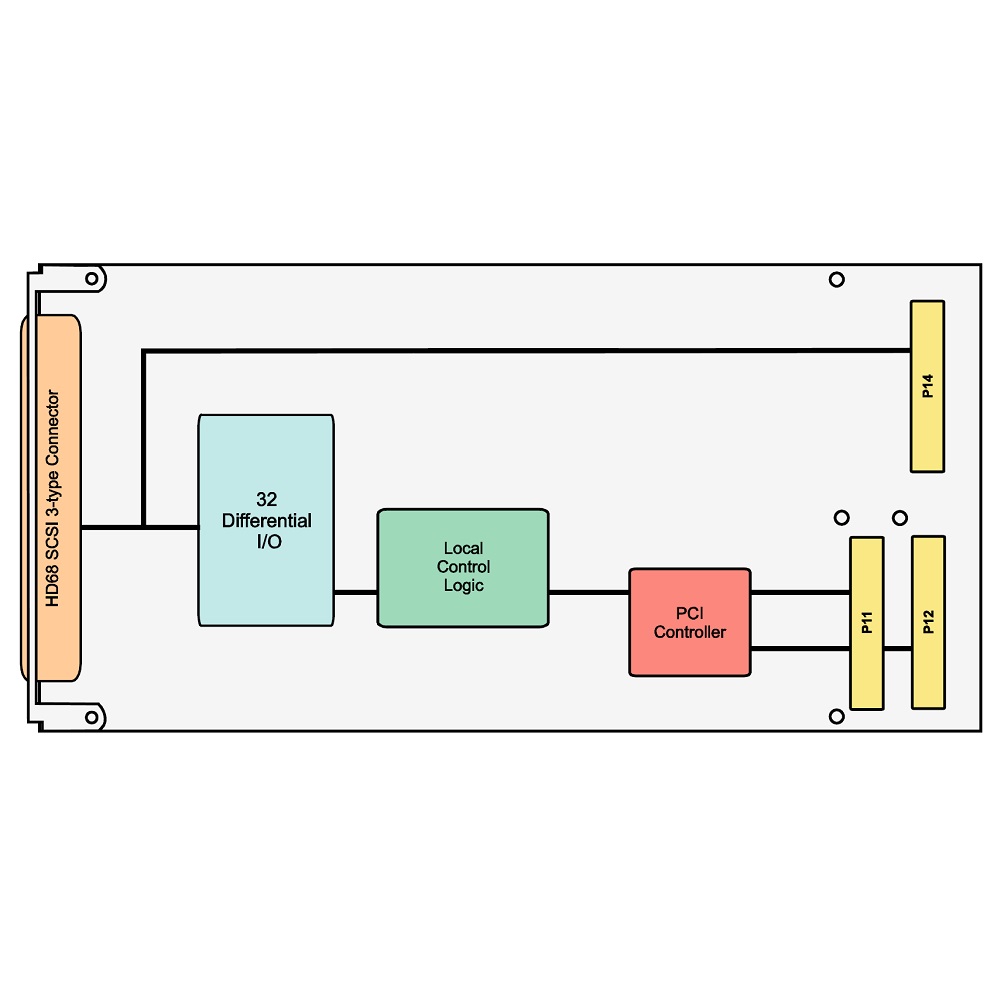

Technical Description

proimg1
  • PMC module, 32 bit/33MHz PCI interface, IEEE P1386.1 compliant, PCI 2.2 compliant, 3.3V and 5V Vio
  • 32 differential digital I/O’ with RS-422/485 level
  • All inputs individually programmable with pos. or neg. edge
  • ESD protection for each I/O line
  • Front I/O via HD68 SCSI-3 connector and Rear I/O via P14
  • MTBF: 451.000h
  • -40°C .. +85°C operating temperature range
  • Windows, Linux, QNX, and VxWorks drivers available
  • 5 years warranty

Order Information

TPMC683-10R

32 differential I/Os with RS-422/485 level

TA304-10R

1.8m cable with HD-68 connectors

TPIM003-10R

PIM module with 68 pin SCSI-3 type connector

TDRV012-SW-42

VxWorks driver

TDRV012-SW-65

Windows WDM driver

TDRV012-SW-82

LINUX driver

TDRV012-SW-95

QNX 6 driver

Technical Documentation

TPMC683 data sheet

TPMC683 user manual

TPIM003 data sheet

TPIM003 user manual

VxWorks driver user manual

LINUX driver user manual

LINUX driver user manual
