TCP468 3U CompactPCI 4 Port Serial RS422 High-Speed Serial Interface

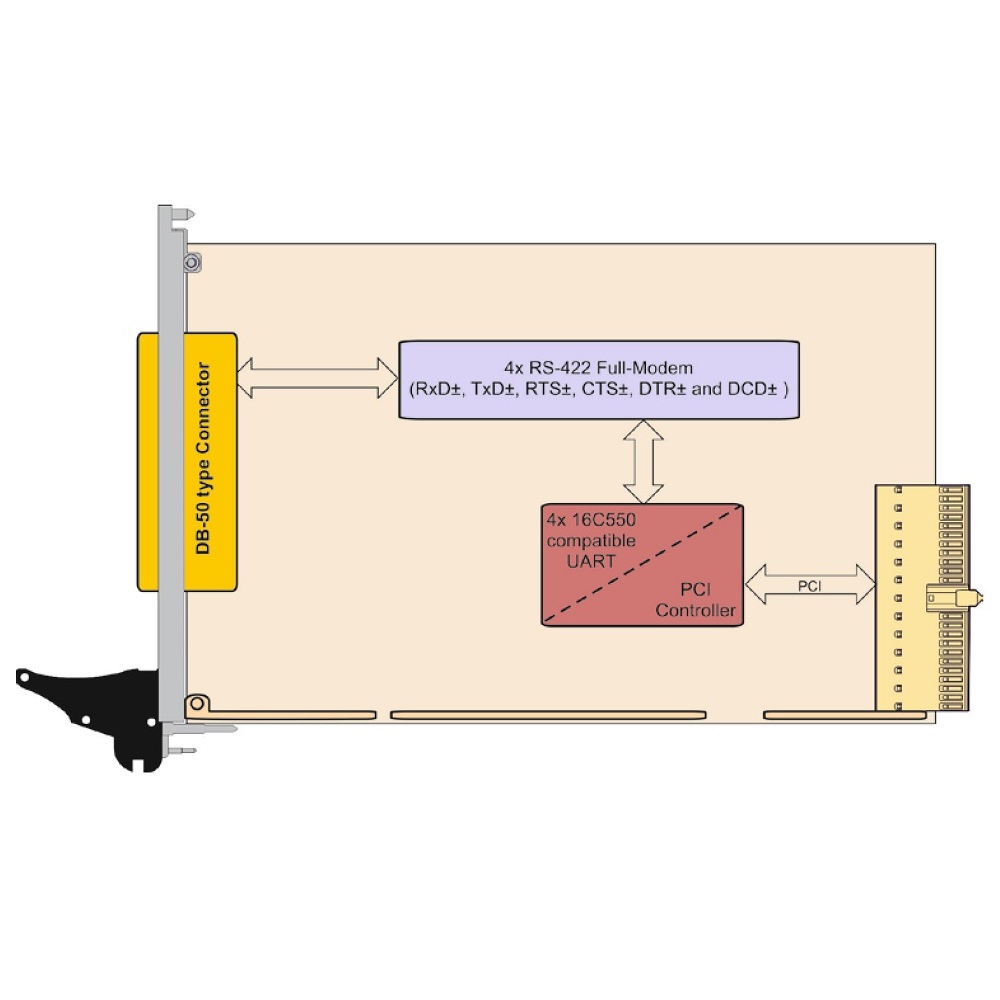

3U CompactPCI card with 4 high performance RS422 serial ports. All RS422 ports have RxD±, TxD±, RTS±, CTS±, DCD± and DTR± lines. The TEWS Technologies module offers a front panel I/O with a DB-50 type connector. On-board termination is provided for all output signals.

Each channel has 64 byte transmit and receive FIFOs. The FIFO trigger thresholds, and the baud rates are individually programmable: up to 5.5296 Mbps. All channels generate interrupts on PCI interrupt INTA. For fast interrupt source detection the UART provides a special global interrupt source register. All channels use transceivers with 15 kV ESD protection.

A wide range of drivers is available: Linux, Integrity, QNX, VxWorks and Windows. All drivers - except the Windows drivers - are supplied as C source code.


Technical Description

  • 3U CompactPCI board, PICMG 2.0 Rev. 3.0, 32-bit/33MHz PCI interface, PCI 2.3 compliant, 3.3/5V Vio
  • 4 RS232 ports
  • RS422 signals: RxD+/-, TxD+/-, RTS+/-, CTS+/-, DCD+/- and DTR+/-
  • On-board termination for all output signals
  • Front I/O via DB50 connector
  • Exar XR17D154 controller
  • 64 byte receive and 64 byte transmit FIFOs per channel
  • Transfer rates up to 5,5296 Mbit/s
  • 15 kV ESD protection
  • All channels generate interrupts on PCI interrupt INTA
  • Global interrupt source register
  • -40°C .. +85°C operating temperature range
  • Linux, Integrity, QNX, VxWorks, and Windows drivers available
  • 5 years warranty

Order Information


3U CompactPCI board, 4 port RS422, DB50 front panel I/O


6U front panel extension for 3U CPCI boards


Integrity driver


VxWorks driver


Windows driver


LINUX driver


QNX 6 driver

Technical Documentation

TCP468 Data Sheet

TCP468 User Manual

TCP001-FP User Manual

Integrity Driver User Manual

VxWorks Driver User Manual

Windows Driver User Manual

LINUX Driver User Manual

QNX 6 Driver User Manual
