TCP465, TCP466, TCP467

TCP465, TCP466, TCP467 3U CompactPCI 4 or 8 Port Serial RS232/422/485 Controller with Programmable Interfaces

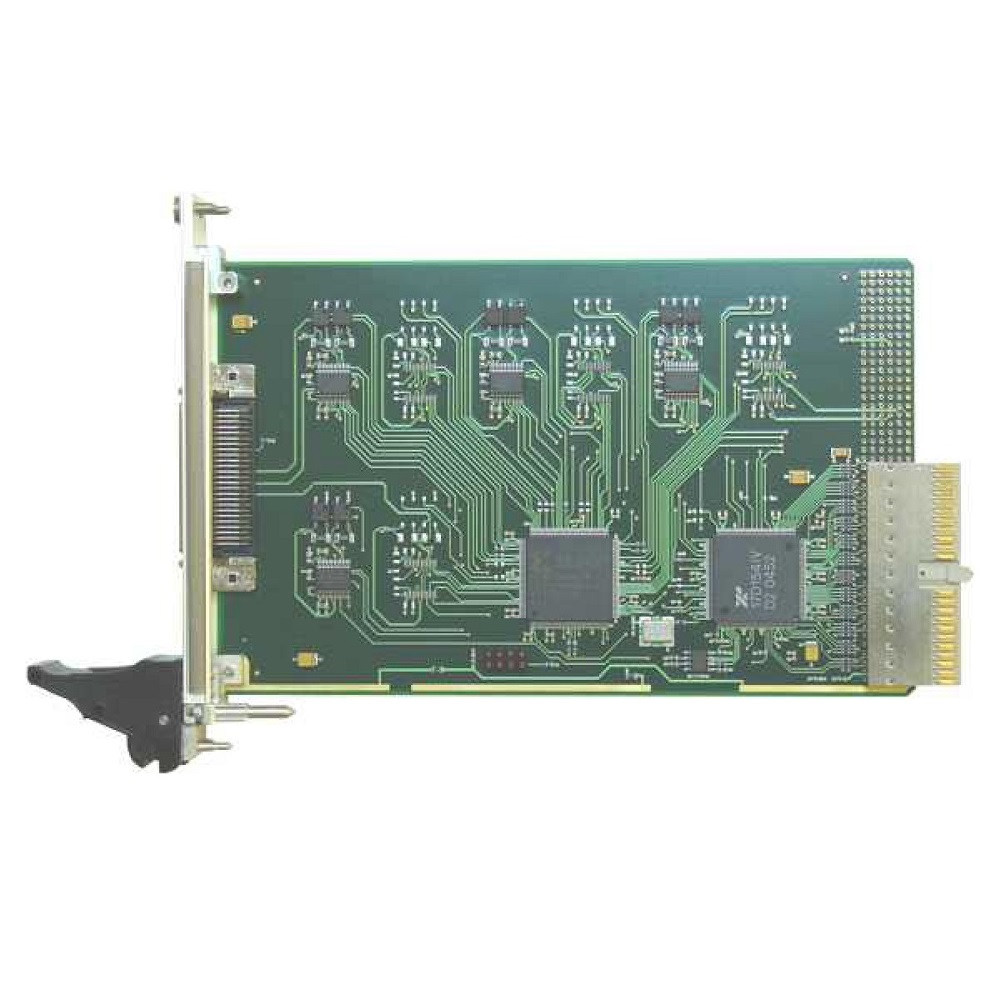

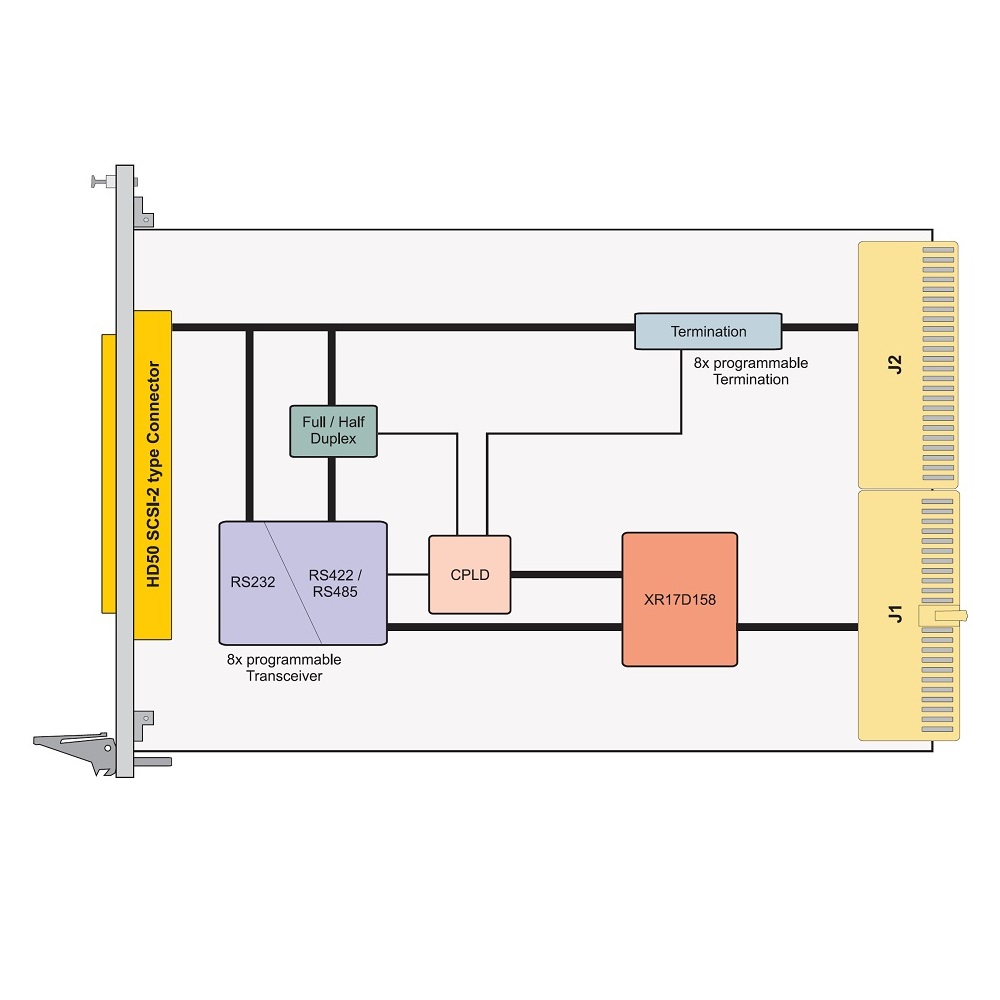

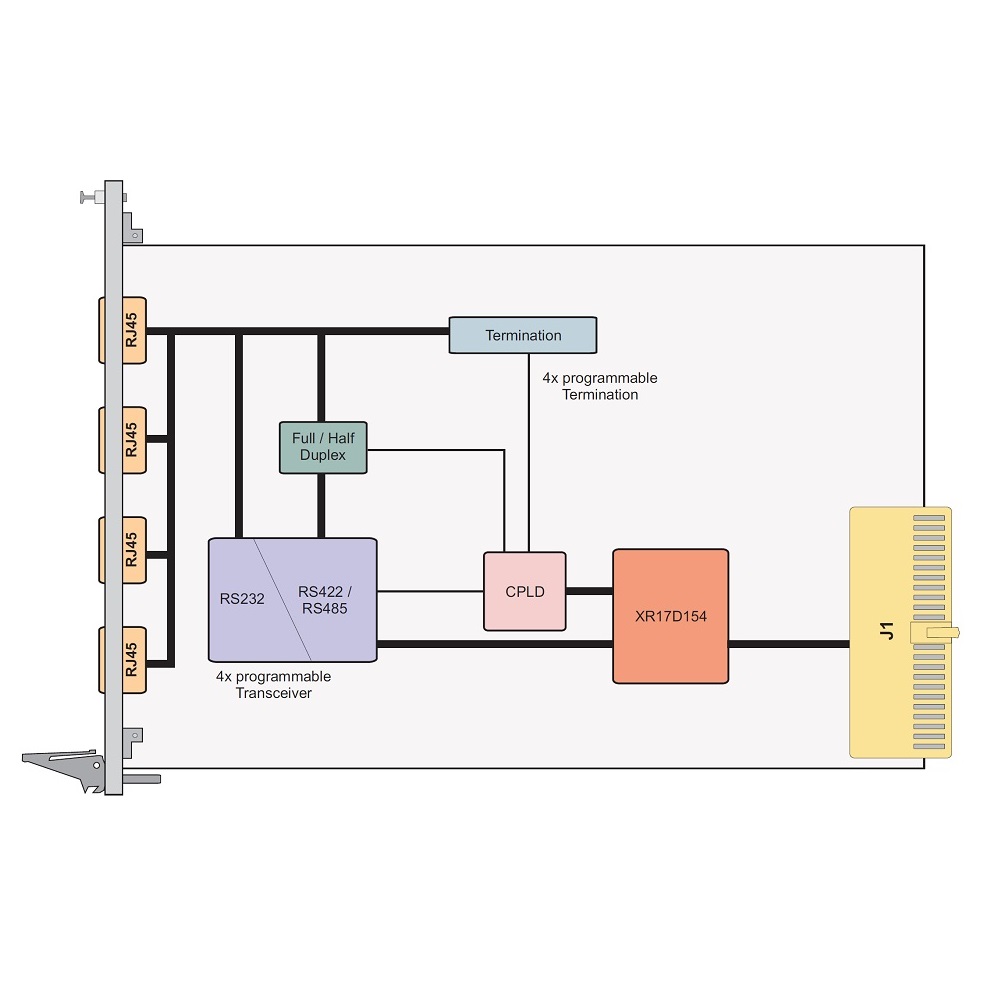

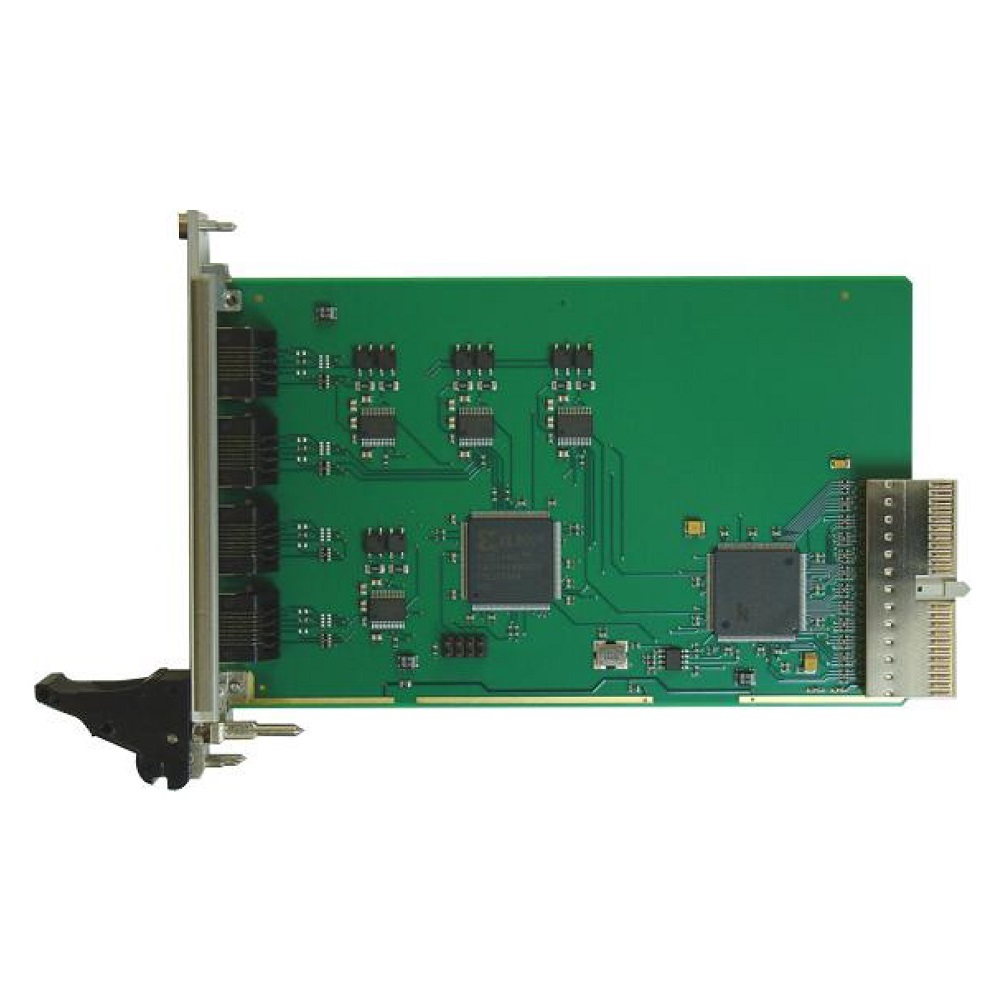

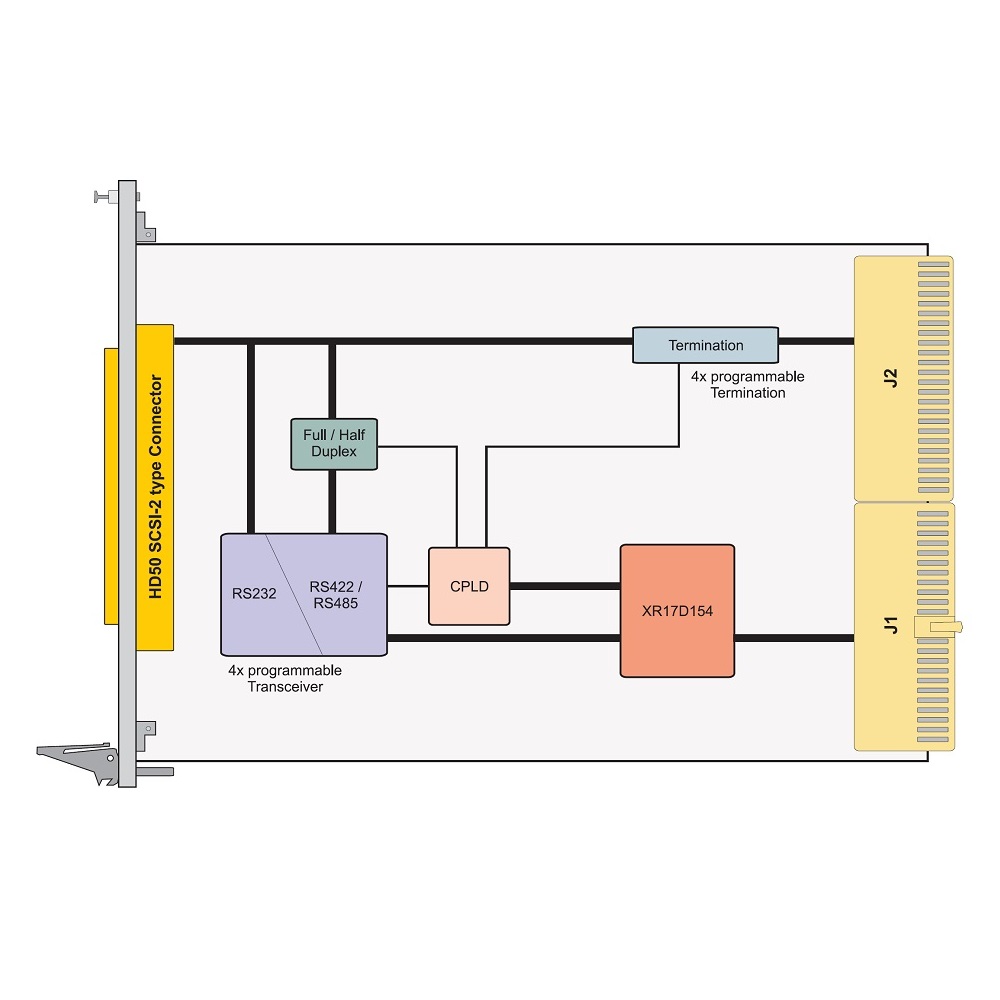

3U CompactPCI 4 or 8 port serial RS232/422/485 controller with programmable interfaces. The TCP465 and TCP466 modules come with different types of front panel connectors. The TCP465 module has 8 channels with an HD50 connector, the TCP466's have 4 ports and HD50, and the TCP467's have 4 ports with RJ45 connectors. Optional all modules also offer J2 I/O.

RS232 channels support RxD, TxD, RTS, and CTS, and RS422 channels support RxD+/- and TxD+/-. RS485 channels can operate in 4-wire full duplex or 2-wire half duplex mode. The modules have front I/O via a HD50 connector and optional J2 I/O.

Each channel has 64 byte transmit and receive FIFOs. The FIFO trigger thresholds, and the baud rates are individually programmable: up to 921.6 kbps for RS232 channels, and 5.5296 Mbps for RS422/485 channels. All channels generate interrupts on PCI interrupt INTA. For fast interrupt source detection the UART provides a special global interrupt source register. All channels use transceivers with 15 KV ESD protection. The modules have an operating temperature range of -40°C to +85°C.

A wide range of drivers is available: Linux, Integrity, QNX, VxWorks and Windows. All drivers - except the Windows drivers - are supplied as C source code.

The modules are also available as TPMC465/466 modules in PMC form factor.


Technical Description

  • 3U CompactPCI board, PICMG 2.0 Rev. 3.0, 32-bit/33MHz PCI interface, PCI 2.3 compliant, 3.3/5V Vio
  • TCP465: 8 RS232/422/485 ports
    TCP466/TCP467: 4 RS232/422/485 ports
  • RS232 signals: TxD, RxD, RTS, and CTS
  • RS422 signals: TxD+/- and RxD+/-, programmable termination
  • RS485 signals: 4-wire TxD+/- and RxD+/-, or 2-wire Dx+/-, programmable termination
  • I/O lines in high impedance state after power-up
  • Front I/O via HD50 connector and optional J2 I/O
  • Exar XR17D154 or XR17D158 controller
  • 64 byte receive and 64 byte transmit FIFOs per channel
  • Transfer rates up to 5,5296 Mbit/s via RS-422/485 and 921.6 Kbit/s via EIA-232
  • 15 KV ESD protection
  • -40°C .. +85°C operating temperature range
  • Linux, Integrity, QNX, VxWorks, and Windows drivers available
  • 5 years warranty

Order Information


3U CompactPCI board, 8 port RS232/422/485, HD50 front panel I/O


As TCP465-10 but also J2 I/O


3U CompactPCI board, 4 port RS232/422/485, HD50 front panel I/O


As TCP466-10 but also J2 I/O


3U CompactPCI board, 4 port RS232/422/485, RJ45 front panel I/O


As TCP466-10 but also J2 I/O


Connection kit, 1.8m cable with HD-50 connectors and 50 pin terminal block


6U front panel extension for 3U CPCI boards


Integrity driver


VxWorks driver


Windows driver


LINUX driver


QNX 6 driver
